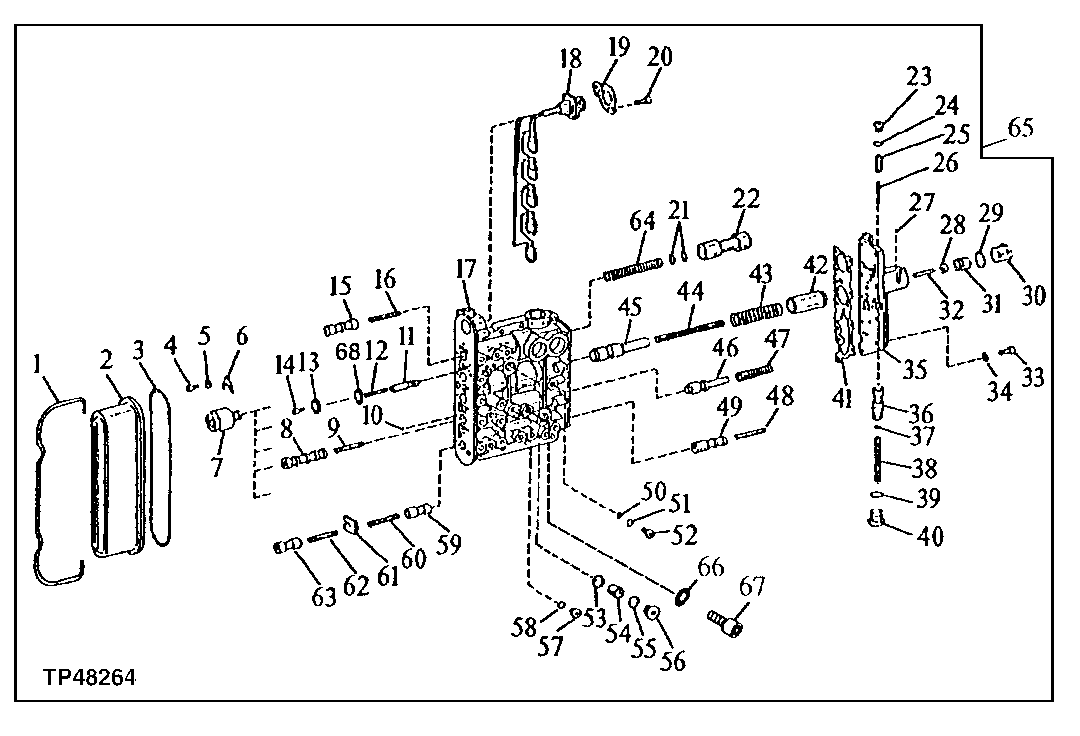

Gearshift System (Control Valve) (M5 Solenoid) (Transmission S.N. -010443)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T144492	1	Clamp	-
2	T147190	1	Cover	-
3	T147189	1	O-Ring	(K2)
4	19M7600	5	Screw	M5 X 12
5	T144487	5	Washer	-
6	T144486	5	Plate	-
7	AT159224	5	Solenoid Hydraulic Valve	-
8	T144479	1	Piston	-
9	T144475	1	Compression Spring	-
10	T144485	10	Ball	-
11	T144481	1	Valve	(USE IF AVAILABLE), (SUB T159235)
11	T159235	1	Hyd Actuated Control Valve	-
12	T144482	1	Compression Spring	-
13	T159237	1	Plate	(SUB FOR T144483)
14	19M7600	2	Screw	M5 X 12
15	T144480	1	Piston	-
16	T144475	1	Compression Spring	-
17	-	1	Part 18	( T148221 NO LONGER AVAILABLE) (SUB T153764) (ALSO ORDER) R104558 AND T153765) (ALSO ORDER TEN T144485 STEEL BALLS) (ALSO ORDER T159239)
17	T153764	1	Housing	(ALSO ORDER TEN T144485 STEEL BALLS) (ALSO ORDER T159239)
18	AT159227	1	Wiring Harness	-
19	T144489	1	Plate	-
20	19M7768	2	Screw	M6 X 16
21	24M7388	2	Washer	10 X 16 X 1 mm
22	T148222	1	Piston	-
23	15M6550	1	Fitting	(SCREW PLUG)
24	T144511	1	O-Ring	(K2)
25	T144508	1	Piston	-
26	T144509	1	Compression Spring	-
27	T144485	5	Ball	-
28	T144506	1	Ring	6.0 MM (.237")
28	T144507	1	Ring	8.0 MM (.315")
28	T144505	1	Ring	4.0 MM (.157")
28	T144504	1	Ring	3.0 MM (.118")
28	T144503	1	Ring	2.0 MM (.079")
29	R73821	1	O-Ring	(K2)
30	15M7066	1	Drain Plug	-
31	T144500	1	Piston	20.5 MM (.807")
31	T144501	1	Piston	21.5 MM (.846")
31	T147591	1	Piston	21.0 MM (.827")
32	T144502	1	Roller	-
33	19M8627	9	Screw	M6 X 20
34	24M7267	9	Washer	6.400 X 11 X 1.600 mm
35	T148274	1	Housing	-
36	T144512	1	Piston	-
37	24M7393	5	Shim	-
38	T116910	1	Compression Spring	-
39	R104558	1	O-Ring	(K2)
40	15M7025	1	Drain Plug	-
41	T144478	1	Gasket	(K1) (K2)
42	T148276	1	Piston	-
43	T148061	1	Compression Spring	(SUB FOR T144469)
44	T148060	1	Compression Spring	(SUB FOR T144470)
45	T148273	1	Piston	-
46	T148279	1	Piston	-
47	T144473	1	Compression Spring	-
48	T144475	1	Compression Spring	-
49	T144477	1	Piston	-
50	T144467	1	O-Ring	(K2)
51	L11698	1	O-Ring	(SUB FOR T116416)(K2)
52	T159648	1	Orifice	(0.95 MM (.037")
52	T150898	1	Orifice	0.9 MM (.035")
52	T148249	1	Orifice	O.85 MM (.033")
52	T148247	1	Orifice	0.65 MM (.026")
52	T144466	1	Orifice	0.8 MM (.031")
52	T144465	1	Orifice	O.7 MM (.028")
52	T144464	1	Orifice	0.6 MM (.024")
52	T148248	1	Orifice	0.75MM (.030")
53	T144493	2	Ball	-
54	T144494	2	Compression Spring	-
55	R104558	2	O-Ring	(K2)
56	15M7025	2	Drain Plug	-
57	R53869	7	Drain Plug	-
58	L11698	7	O-Ring	(SUB FOR T116416)(K2)
59	T144476	1	Piston	-
60	T144475	1	Compression Spring	-
61	T144474	1	Plate	-
62	T144475	1	Compression Spring	-
63	T144476	1	Piston	-
64	T144461	1	Compression Spring	-
65	AT159223	1	Hyd Actuated Control Valve	-
66	R104558	1	O-Ring	(K2)
67	T153765	1	Sleeve	-
68	T159239	1	Ring	(USE IF HOUSING HAS A COUNTERBORE FOR REDUCTION VALVE)
