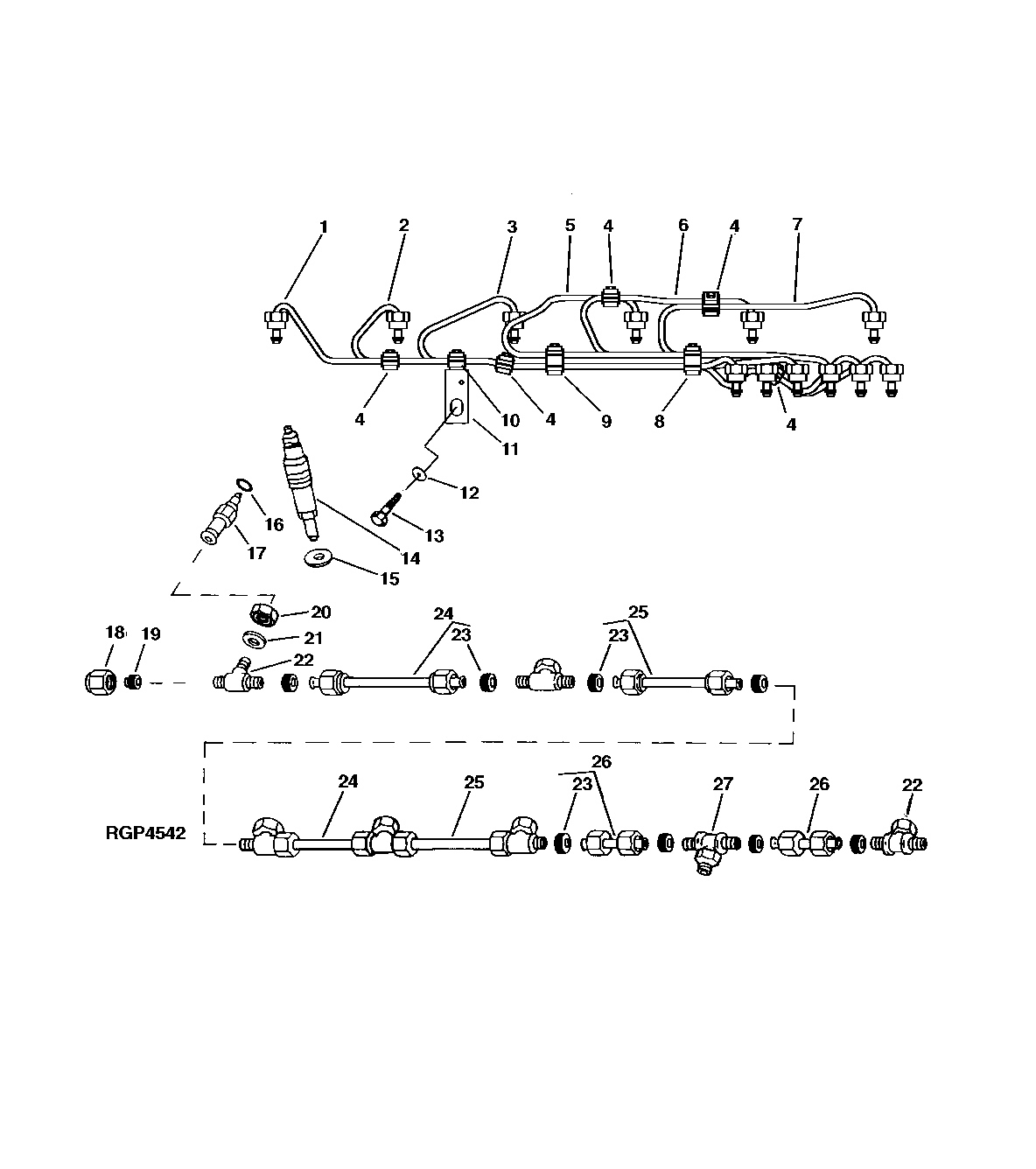

Fuel Injection Nozzles and Lines (6076) (558134 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE48434	1	Fuel Line	NO. 6
2	RE48433	1	Fuel Line	NO. 5
3	RE48432	1	Fuel Line	NO. 4
4	R120185	5	Bolt	-
4	R58186	10	Clamp	-
4	R120181	5	Strap	-
4	R120182	5	Strap	-
5	RE48431	1	Fuel Line	NO. 3
6	RE48430	1	Fuel Line	NO. 2
7	RE48429	1	Fuel Line	NO. 1
8	R120184	1	Strap	-
8	R59297	2	Half Clamp	-
8	R120183	1	Strap	-
8	R71212	1	Clamp	-
8	R120186	2	Bolt	-
9	R59297	2	Half Clamp	-
9	R71212	1	Clamp	-
9	R74804	1	Clamp	-
9	R120186	1	Bolt	-
9	R120183	1	Strap	-
9	R120184	1	Strap	-
10	R120185	2	Bolt	-
10	R59297	2	Half Clamp	-
10	R120183	2	Strap	-
11	RE55662	1	Absorber	-
12	24H1884	1	Washer	13/32" X 13/16" X 0.120"
13	19M7166	1	Cap Screw	M10 X 20
14	RE30159	6	Injection Nozzle	NLA (DENSO) (ORDER RE52109 AND R84472)
14	SE500349	1	Injection Nozzle Reman	NLA (PKG OF 6) (REMAN FOR RE30159)
14	SE501135	6	Injection Nozzle Reman	(PKG OF 1) (REMAN FOR RE30159)
14	RE52109	6	Injection Nozzle	(SUB FOR RE30159)
14	SE500350	1	Injection Nozzle Reman	NLA (PKG OF 6) (REMAN FOR RE52109)
14	SE501136	6	Injection Nozzle Reman	(PKG OF 1) (REMAN FOR RE52109)
15	R84472	6	Washer	7.360 X 18.160 X 2 mm (0.290" X 0.715" X 0.079")
16	R77551	6	O-Ring	-
17	RE501970	6	Fitting	-
17	R87082	6	Fitting	-
18	R51937	1	Tube Nut	-
19	AR85519	1	Plug	-
20	R79604	6	Tube Nut	-
21	R79605	6	Washer	-
22	R79606	6	Tee Fitting	-
23	R51936	11	Sealing Washer	-
24	RE15807	2	Fuel Line	-
25	RE15808	2	Fuel Line	-
25	RE500803	2	Fuel Line	-
26	RE36421	2	Fuel Line	-
27	R97061	1	Tee Fitting	-

Fuel Injection Nozzles and Lines (6076) (558134 - )
