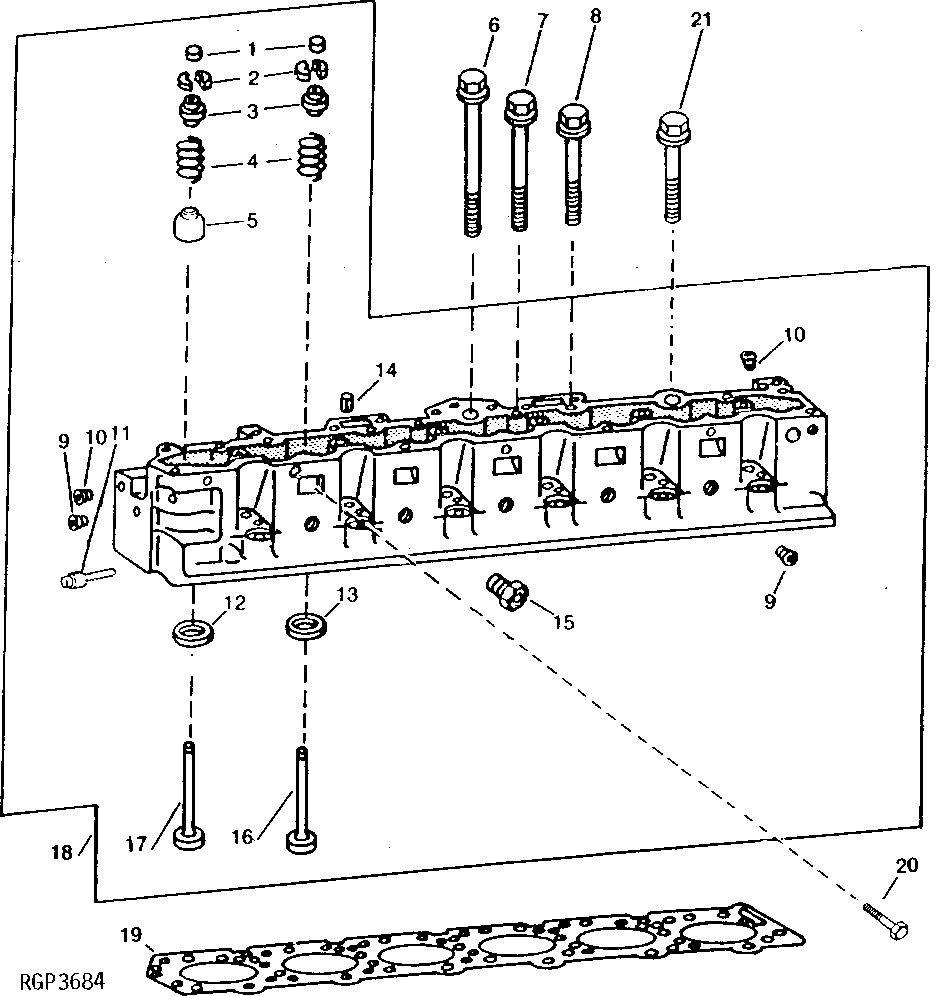

Cylinder Head and Valves (6076)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T20129	12	Cap	-
2	T20077	24	Retainer	-
3	RE11410	12	Rotator	-
4	R91822	12	Spring	-
5	R102882	6	Shield	(EXHAUST VALVES ONLY)
6	R110289	7	Cap Screw	(USE WITH BLOCKS MARKED BELOW <service-part>R122736</service-part>)
6	R121491	7	Cap Screw	(USE WITH BLOCKS MARKED <service-part>R122736</service-part> AND ABOVE) (MARKED "SPECIAL")
7	R110288	8	Cap Screw	(USE WITH BLOCKS MARKED BELOW <service-part>R122736</service-part>)
7	R121490	8	Cap Screw	(USE WITH BLOCKS MARKED <service-part>R122736</service-part> AND ABOVE) (MARKED "SPECIAL")
8	R121320	6	Cap Screw	(USE WITH BLOCKS MARKED <service-part>R122736</service-part> AND ABOVE) (MARKED "SPECIAL")
8	R88043	6	Cap Screw	(USE WITH BLOCKS MARKED BELOW <service-part>R122736</service-part>) 14.275 X 134.100 mm (9/16" X 5.280")
9	15H690	10	Pipe Plug	3/4"
10	15H584	2	Pipe Plug	1/2"
11	AT107509	1	Plug	-
12	R84976	6	Valve Seat Insert	EXHAUST
12	R93349	1	Valve Seat Insert	0.25MM (.010") OS
13	R84977	6	Valve Seat Insert	INTAKE
13	R93350	1	Valve Seat Insert	0.25MM (.010") OS
14	34H387	1	Spring Pin	3/16" X 3/4"
15	RE501737	1	Pipe Plug	(SUB FOR R76491)
16	R84618	6	Intake Valve	STD
16	R93308	1	Intake Valve	0.08MM (.003") OS
16	R93312	1	Intake Valve	0.38MM (.015") OS
16	R93314	1	Intake Valve	0.76MM (.030") OS
17	R93315	1	Exhaust Valve	0.76MM (.030") OS
17	R93313	1	Exhaust Valve	0.38MM (.015") OS
17	R93311	1	Exhaust Valve	0.08MM (.003") OS
17	R84619	6	Exhaust Valve	STD
18	RE42741	1	Cylinder Head	NLA (MARKED R102932 ) (ORDER RE58516)
18	RE58516	1	Cylinder Head	(MARKED R122112 OR R122491)
18	SE501576	1	Cylinder Head Reman	(REMAN FOR RE58516)
19	RE47336	1	Engine Cylinder Head Gasket	-
20	19H2367	1	Cap Screw	5/8" X 3/4"
21	R110286	5	Cap Screw	(USE WITH BLOCKS MARKED BELOW <service-part>R122736</service-part>)
21	R121489	5	Cap Screw	(USE WITH BLOCKS MARKED <service-part>R122736</service-part> AND ABOVE) (MARKED "SPECIAL")
..	RG24026	1	Bolt Kit	(USE WITH BLOCKS MARKED <service-part>R122736</service-part> AND ABOVE) (ALSO CONTAINED IN NEW SHORT BLOCKS) (CONTAINS (26) "SPECIAL" HEAD BOLTS)
