Clutch Assembly (Third and Fourth Gear Clutches)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T160375	1	Axle	(MARKED 4644-353-058)(USE WITH AT178043)
1	T152773	1	Axle	(MARKED 4644-353-050 ) (SUB FOR T141870 ) (MARKED 4644-353-031)
2	T116584	1	Clutch Disk	1.5 MM (.059")
2	T116585	1	Clutch Disk	2.5 MM (.098")
2	T116586	1	Clutch Disk	2.0 MM (.079")
3	T116867	1	O-Ring	(K2)
4	T116497	3	Piston Ring	(K2)
5	42M7045	2	Stud	-
6	14M7273	2	Nut	M8
7	T116674	1	Washer	2.2 MM (.087")
7	T116677	1	Washer	2.8 MM (.110")
7	T116676	1	Washer	2.6 MM (.102")
7	T116675	1	Washer	2.4 MM (.094")
7	T116673	1	Washer	2.0 MM (.079")
7	T116672	1	Washer	1.8 MM (.071")
7	T116671	1	Washer	1.6 MM (.063")
7	T116669	1	Washer	1.2 MM (.047")
7	T116668	1	Washer	1.0 MM (.039")
7	T116667	1	Washer	0.8 MM (.031")
7	T116666	1	Shim	0.6 MM (.024")
7	T116665	1	Shim	0.4 MM (.016")
7	T116664	1	Shim	0.2 MM (.008")
7	T116670	1	Washer	1.4 MM (.055")
8	T148428	1	Thrust Washer	-
9	T144419	1	Thrust Washer	-
10	T131692	1	Spur Gear	(29 TEETH)
11	T148427	1	Thrust Washer	-
12	T148425	2	Thrust Washer	(USE WITH AT167950)
13	T116500	1	Needle Bearing	-
14	T116582	2	Disk With Outer Spline	-
15	TTZF200515	2	Piston	(SUB FOR T151304)
16	T116494	2	Seal	(K2)
17	T144404	2	Ring	(K2)
18	T116486	2	Compression Spring	-
19	T116579	4	Ring	-
20	T116400	2	Snap Ring	(K2)
21	T116580	2	Guide	-
22	T116504	1	Needle Bearing	-
23	T116434	1	Needle Bearing	-
24	T116480	2	Snap Ring	-
25	T148426	1	Thrust Washer	-
26	T162285	1	Spur Gear	(SUB FOR T144439)
27	T116916	1	Needle Bearing	-
28	T122833	12	Needle Roller	-
29	AT167950	1	Disk	(MARKED 4644-253-038 ) (SUB AT178043, T160374, T160375, T160389, T160390, T160391 AND T160402)
29	AT178043	1	Disk	CARRIER, (MARKED 4644-253-045)
30	T116387	10	Clutch Disk	-
31	T116584	1	Clutch Disk	1.5 MM (.059")
32	T116586	6	Clutch Disk	2.0 MM (.079")
33	T116585	1	Clutch Disk	2.5 MM (.098")
34	T116586	1	Clutch Disk	2.0 MM (.079")
34	T116584	1	Clutch Disk	1.5 MM (.059")
34	T116585	1	Clutch Disk	2.5 MM (.098")
35	T116387	9	Clutch Disk	-
36	T116586	2	Clutch Disk	2.00MM (.079")
37	T116584	4	Clutch Disk	1.5MM (.059)
38	T116585	1	Clutch Disk	2.5 MM (.098")
39	T147581	1	Snap Ring	2.5 MM (.098") (REQUIRED TO RE-ASSEMBLE AT167950 OR AT178043 HUB)
40	T148526	2	Hyd Actuated Control Valve	(REQUIRED TO RE-ASSEMBLE AT167950 OR AT178043 HUB)
41	T147579	1	Snap Ring	2.35 MM (.092") (REQUIRED TO RE-ASSEMBLE AT167950 OR AT178043)
41	T147581	1	Snap Ring	2.5 MM (.098") (REQUIRED TO RE-ASSEMBLE AT167950 OR AT178043)
41	T147580	1	Snap Ring	2.4 MM (.094") (REQUIRED TO RE-ASSEMBLE AT167950 OR AT178043)
41	T147578	1	Snap Ring	2.3 MM (.091") (REQUIRED TO RE-ASSEMBLE AT167950 OR AT178043)
41	T147577	1	Snap Ring	2.2 MM (.087") (REQUIRED TO RE-ASSEMBLE AT167950 OR AT178043)
41	T147576	1	Snap Ring	2.15 MM (.085") (REQUIRED TO RE-ASSEMBLE AT167950 OR AT178043)
41	T147575	1	Snap Ring	2.1 MM (.082") (REQUIRED TO RE-ASSEMBLE AT167950 OR AT178043)
41	T147574	1	Snap Ring	2.0 MM (.079") (REQUIRED TO RE-ASSEMBLE AT167950 OR AT178043)
42	T154704	1	Bushing	(USED TO REPAIR DAMAGED THRUST SURFACE IN TRANSMISSION CASE) (MACHINING OF CASE REQ.)
43	T160402	1	Washer	-
44	T160390	1	Snap Ring	-
45	T160374	1	Washer	-
46	T160389	1	Washer	-
47	T160391	1	Snap Ring	-

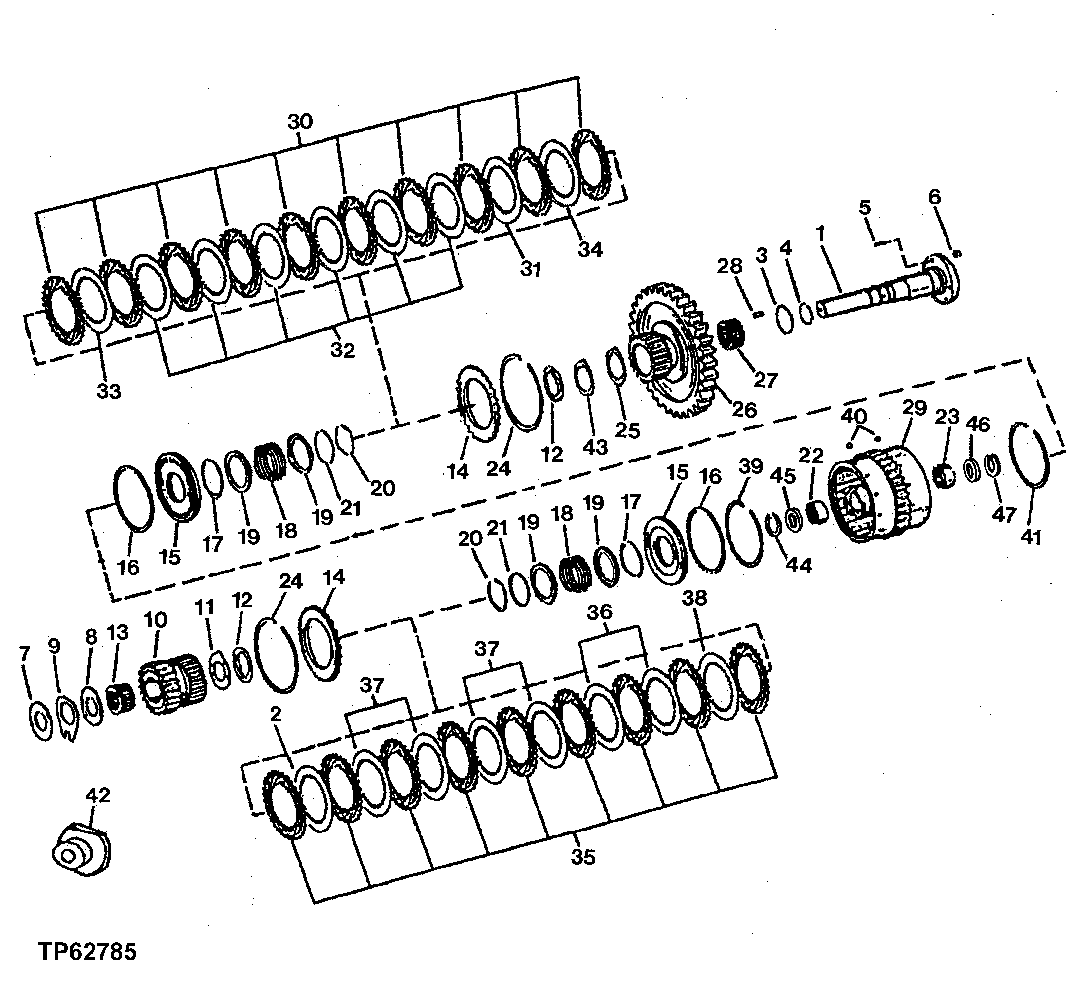

Clutch Assembly (Third and Fourth Gear Clutches)
