Clutch Assembly (Reverse and Second Gear Clutches)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T152771	1	Axle	(ALSO ORDER AT169254, AT178042, T160374, T160389, T160390 AND T160391)
2	T116982	2	Clutch Disk	2.5 MM (.098")
3	T116982	1	Clutch Disk	2.5 MM (.098")
3	T116981	1	Clutch Disk	2.0 MM (.079")
4	T116867	1	O-Ring	(K2)
5	T116497	3	Piston Ring	(K2)
6	42M7045	3	Stud	-
7	14M7273	3	Nut	M8
8	T116675	1	Washer	2.4 MM (.094")
8	T116677	1	Washer	2.8 MM (.110")
8	T116676	1	Washer	2.6 MM (.102")
8	T116674	1	Washer	2.2 MM (.087")
8	T116673	1	Washer	2.0 MM (.079")
8	T116672	1	Washer	1.8 MM (.071")
8	T116671	1	Washer	1.6 MM (.063")
8	T116669	1	Washer	1.2 MM (.047")
8	T116668	1	Washer	1.0 MM (.039")
8	T116667	1	Washer	0.8 MM (.031")
8	T116666	1	Shim	0.6 MM (.024")
8	T116665	1	Shim	0.4 MM (.016")
8	T116664	1	Shim	0.2 MM (.008")
8	T116670	1	Washer	1.4 MM (.055")
9	T148428	1	Thrust Washer	-
10	T142830	1	Thrust Washer	-
11	T160416	1	Spur Gear	(SUB FOR T151827)
12	T116979	2	Thrust Washer	-
13	T151816	1	Thrust Washer	-
14	T148425	2	Thrust Washer	(USE WITH AT169254)
15	AT157977	2	Roller	(MATCHED SET)
16	T116981	4	Clutch Disk	2.0 MM (.079")
17	T116980	1	Washer	-
18	T116977	2	Shim	-
19	T148552	2	Piston	-
20	T159751	2	Ring	(K2), (SUB FOR T116912)
21	T144404	2	Ring	(K2)
22	T116486	2	Compression Spring	-
23	T116579	4	Ring	-
24	T116400	2	Snap Ring	-
25	T116580	2	Guide	-
26	T116871	1	Needle Bearing	-
27	T116872	1	Needle Bearing	-
28	T116909	2	Snap Ring	-
29	T148426	1	Thrust Washer	-
30	T144418	1	Gear	-
31	T116917	1	Cylindrical Roller Bearing	-
32	T148526	4	Hyd Actuated Control Valve	(REQUIRED TO RE-ASSEMBLE AT169254 OR AT178042 HUB)
33	AT169254	1	Disk	(MARKED 4644-252-078 ) (SUB AT178042, T160374, T160389, T160390 AND T160391)
33	AT178042	1	Disk	CARRIER, (MARKED 4644-252-087)
34	T122806	10	Clutch Disk	2.0 MM (.079")
35	T152734	8	Clutch Disk	3.0 MM (.118")
36	T147590	1	Snap Ring	2.5 MM (.098") (REQUIRED TO RE-ASSEMBLE AT169254 OR AT178042 HUB), NLA
36	T147589	1	Snap Ring	2.45 MM (.096") (REQUIRED TO RE-ASSEMBLE AT169254 OR AT178042 HUB)
36	T147588	1	Snap Ring	2.4 MM (.094") (REQUIRED TO RE-ASSEMBLE AT169254 OR AT178042 HUB)
36	T147585	1	Snap Ring	2.25 MM (.088") (REQUIRED TO RE-ASSEMBLE AT169254 OR AT178042 HUB)
36	T147587	1	Snap Ring	2.35 MM (.092") (REQUIRED TO RE-ASSEMBLE AT169254 OR AT178042 HUB)
36	T147586	1	Snap Ring	2.3 MM (.091") (REQUIRED TO RE-ASSEMBLE AT169254 OR AT178042 HUB)
36	T147584	1	Snap Ring	2.2 MM (.087")(REQUIRED TO RE-ASSEMBLE AT169254 OR AT178042 HUB)
36	T147583	1	Snap Ring	2.15 MM (.085") (REQUIRED TO RE-ASSEMBLE AT169254 OR AT178042 HUB)
36	T147582	1	Snap Ring	2.1 MM (.083") REQUIRED TO RE-ASSEMBLE AT169254 OR AT178042 HUB)
37	T116981	1	Clutch Disk	2.0 MM (.079")
37	T116982	1	Clutch Disk	2.5 MM (.098")
37	T152734	1	Clutch Disk	-
38	T122806	8	Clutch Disk	2.0 MM (.079")
39	T116858	3	Ring	-
40	T147590	1	Snap Ring	2.5 MM (.098") (REQUIRED TO RE-ASSEMBLE AT169254 OR AT178042 HUB), NLA
41	T154704	1	Bushing	(USED TO REPAIR DAMAGED THRUST SURFACE IN TRANSMISSION CASE) (MACHINING OF CASE REQUIRED)
42	T160390	1	Snap Ring	-
43	T160374	1	Washer	-
44	T160389	1	Washer	-
45	T160391	1	Snap Ring	-

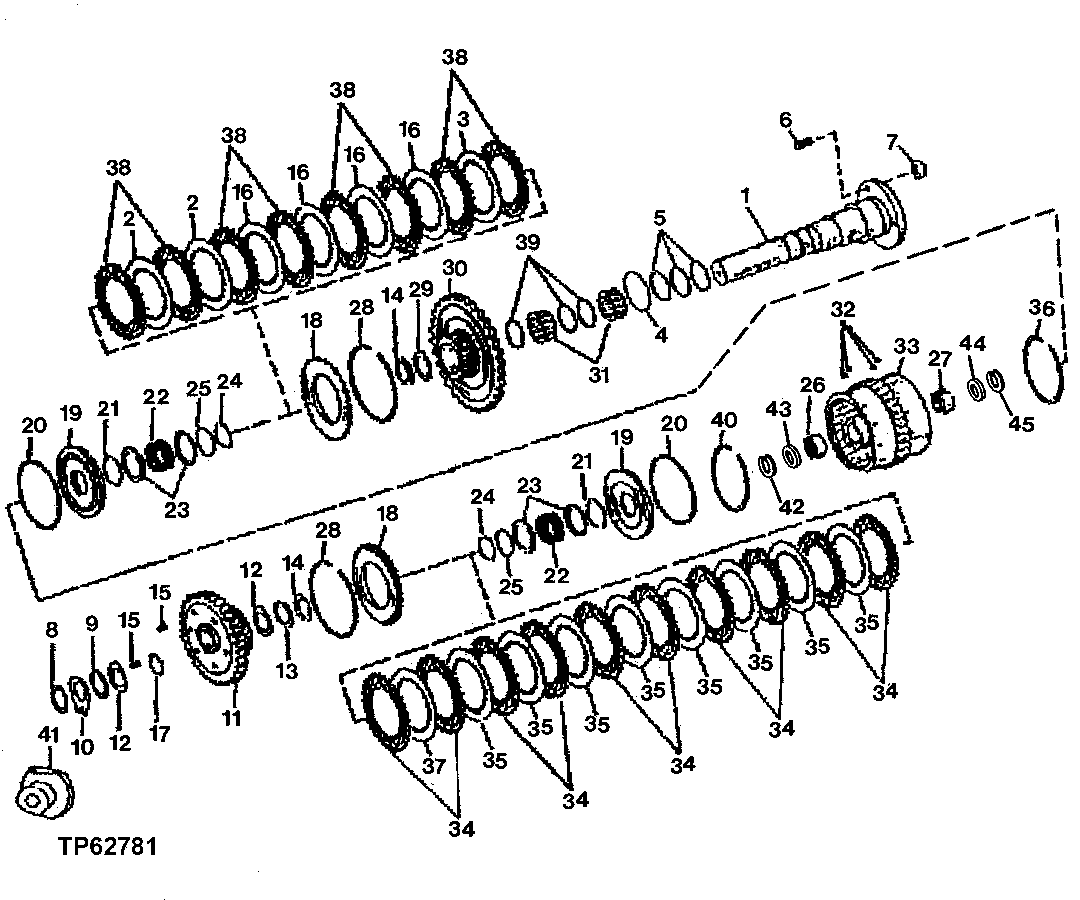

Clutch Assembly (Reverse and Second Gear Clutches)
