Clutch Assembly (Forward and First Gear Clutches)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T152772	1	Axle	-
2	T116982	1	Clutch Disk	2.5 MM (.098")
2	T116981	1	Clutch Disk	2.0 MM (.079")
3	T116867	1	O-Ring	(K2)
4	T116497	3	Piston Ring	(K2)
5	14M7273	2	Nut	M8
6	T116671	1	Washer	1.6 MM (.063")
6	T116677	1	Washer	2.8 MM (.110")
6	T116676	1	Washer	2.6 MM (.102")
6	T116675	1	Washer	2.4 MM (.094")
6	T116674	1	Washer	2.2 MM (.087")
6	T116673	1	Washer	2.0 MM (.079")
6	T116672	1	Washer	1.8 MM (.071")
6	T116670	1	Washer	1.4 MM (.055")
6	T116669	1	Washer	1.2 MM (.047")
6	T116668	1	Washer	1.0 MM (.039")
6	T116667	1	Washer	0.8 MM (.031")
6	T116666	1	Shim	0.6 MM (.024")
6	T116665	1	Shim	0.4 MM (.016")
6	T116664	1	Shim	0.2 MM (.008")
7	T148428	1	Thrust Washer	-
8	T142830	1	Thrust Washer	-
9	T160416	1	Spur Gear	(SUB FOR T151827)
10	T116979	2	Thrust Washer	-
11	T151816	1	Thrust Washer	-
12	T148425	1	Thrust Washer	(USE WITH AT169218)
13	T148425	1	Thrust Washer	(USE WITH AT169218)
14	T148526	4	Hyd Actuated Control Valve	(REQUIRED TO RE-ASSEMBLE AT169218 OR AT178040)
15	AT157977	1	Roller	(MATCHED SET)
16	T116980	1	Washer	-
17	T116977	2	Shim	-
18	T148552	2	Piston	-
19	T159751	2	Ring	(SUB FOR T116912)(K2)
20	T144404	2	Ring	(K2)
21	T116486	2	Compression Spring	-
22	T116579	4	Ring	-
23	T116400	2	Snap Ring	-
24	T116580	2	Guide	-
25	T116871	1	Needle Bearing	-
26	T116872	1	Needle Bearing	-
27	T116909	2	Snap Ring	-
28	T148426	1	Thrust Washer	-
29	T143381	1	Spur Gear	(SUB FOR T142852)
30	T116914	1	Cylindrical Roller Bearing	-
31	T116858	2	Ring	-
32	40M5099	1	Snap Ring	-
33	JD8510	1	Ball Bearing	-
34	AT169218	1	Disk	(MARKED 4644-251-038 ) (SUB AT178040, T160374, T160389, T160390 AND T160391)
34	AT178040	1	Disk	CARRIER, (MARKED 4644-251-042)
35	T122806	10	Clutch Disk	2.0 MM (.079")
36	T152734	8	Clutch Disk	3.0 MM (.118")
37	T147582	1	Snap Ring	2.1 MM (.083") (REQUIRED TO RE-ASSEMBLE AT169218 OR AT178040 HUB)
37	T147590	1	Snap Ring	2.50 MM (.098") (REQUIRED TO RE-ASSEMBLE AT169218 OR AT178040 HUB), NLA
37	T147589	1	Snap Ring	2.45 MM (.096") (REQUIRED TO RE-ASSEMBLE AT169218 OR AT178040 HUB)
37	T147588	1	Snap Ring	2.4 MM (.094") (REQUIRED TO RE-ASSEMBLE AT169218 OR AT178040 HUB)
37	T147587	1	Snap Ring	2.35 MM (.092") (REQUIRED TO RE-ASSEMBLE AT169218 OR AT178040 HUB)
37	T147586	1	Snap Ring	2.3 MM (.091") (REQUIRED TO RE-ASSEMBLE AT169218 OR AT178040 HUB)
37	T147585	1	Snap Ring	2.25 MM (.088") (REQUIRED TO RE-ASSEMBLE AT169218 OR AT178040 HUB)
37	T147584	1	Snap Ring	2.2 MM (.087") (REQUIRED TO RE-ASSEMBLE AT169218 OR AT178040 HUB)
37	T147583	1	Snap Ring	2.15 MM (.085") (REQUIRED TO REASSEMBLE AT169218 OR AT178040 HUB)
38	T116981	1	Clutch Disk	2.0 MM (.079")
38	T152734	1	Clutch Disk	3.0 MM (.118")
38	T116982	1	Clutch Disk	2.5 MM (.098")
39	T122806	8	Clutch Disk	2.0 MM (.079")
40	T116982	2	Clutch Disk	2.5 MM (.098")
41	T116981	4	Clutch Disk	2.0 MM (.079")
42	24M7380	1	Washer	60 X 75 X 1.500 mm
42	24M7381	1	Washer	60 X 75 X 1.600 mm
42	24M7387	1	Washer	60 X 75 X 0.900 mm
42	24M7378	1	Washer	60 X 75 X 1 mm
42	24M7214	1	Shim	-
42	24M7377	1	Shim	-
43	40M5099	1	Snap Ring	-
44	42M7045	2	Stud	-
45	T147590	1	Snap Ring	2.5 MM (.098") (REQUIRED TO RE-ASSEMBLE AT169218 OR AT178040 HUB), NLA
46	T154704	1	Bushing	(USED TO REPAIR DAMAGED THRUST SURFACE IN TRANSMISSION CASE) (MACHINING OF CASE REQUIRED)
47	T160390	1	Snap Ring	-
48	T160374	1	Washer	-
49	T160389	1	Washer	-
50	T160391	1	Snap Ring	-

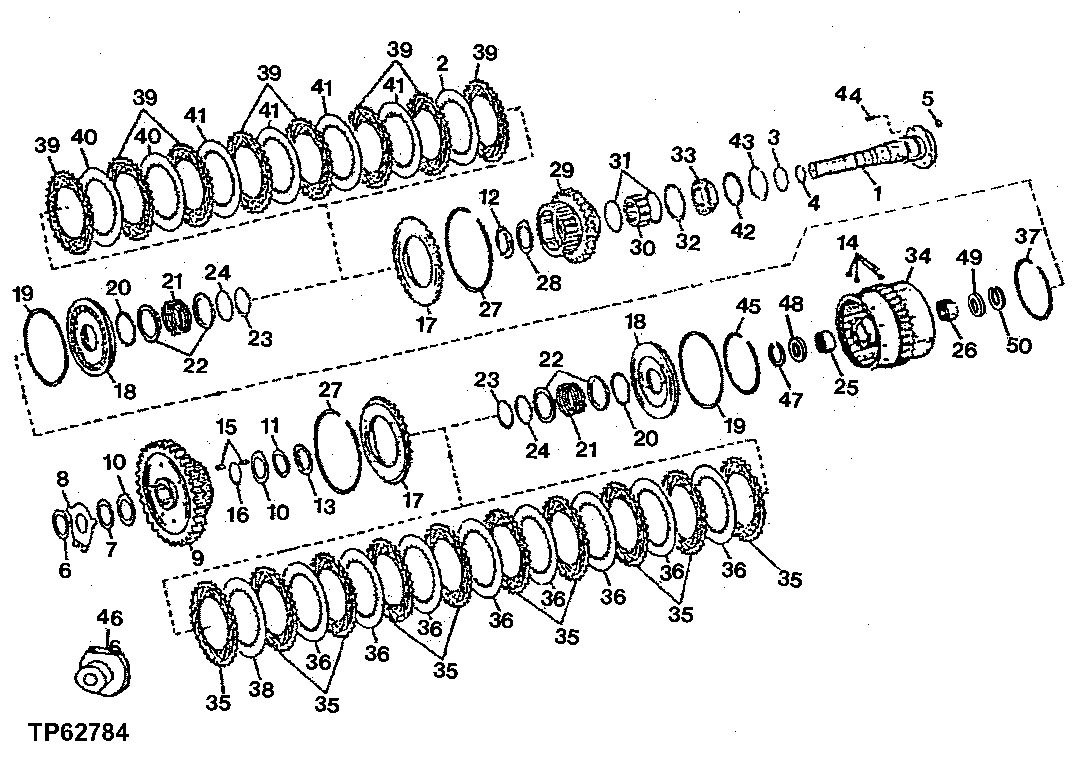

Clutch Assembly (Forward and First Gear Clutches)
