Two or Three Lever Remote Controller (644E) ( - 534614)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T39225	1	Knob	(SUB FOR T103104)
2	T102976	1	Cover	-
3	T126189	1	Boot	(BOOM AND BUCKET FUNCTIONS)
3	T127703	1	Boot	(SUB FOR T126189, AND T126189THIS APPLICATION)
4	H77698	1	Tie Band	(SUB FOR R43750, THIS APPLICATION)
5	T103100	2	Set Screw	-
6	T103108	1	Rod	BUCKET (TWO-LEVER AND THREE-LEVER)
6	T103108	1	Rod	BOOM (TWO-LEVER)
6	T103103	1	Rod	BOOM (THREE-LEVER)
6	T131621	1	Lever	AUXILIARY (SINGLE AND THREE-LEVER)
7	T103098	1	Link	-
8	-	2	Part 12	( T103099 NO LONGER AVAILABLE)
9	25H50	1	Groove Pin	5/32" X 3/4", (SUB FOR T103101)
10	T131614	2	Spring	MAIN, (SUB FOR T102954)
10	T131603	2	Spring	MAIN, AUXILIARY (SINGLE AND THREE-LEVER)
11	T102955	2	Retainer	-
12	-	2	Part 17	-
13	T102958	2	Plunger	-
14	T131617	2	Ring	(KIT <service-part>AT104041</service-part> (ALSO ORDER <service-part >AT115876</service-part> TUBE OF GREASE))
15	-	2	Part 20	(KIT <service-part>AT104041</service-part> (ALSO ORDER <service-part >AT115876</service-part> TUBE OF GREASE))
16	-	2	Part 21	(KIT <service-part>AT104041</service-part> (ALSO ORDER <service-part >AT115876</service-part> TUBE OF GREASE))
17	T102961	2	Dowel Pin	-
18	M43940	2	Snap Ring	(SUB FOR T103106)
19	T131615	1	Housing	(SUB FOR T103091, THIS APPLICATION)
20	T103105	1	Pin Fastener	-
21	T131608	2	Spring	RETURN, (SUB FOR T102953, THIS APPLICATION)
21	T131602	2	Spring	RETURN, AUXILIARY (SINGLE AND THREE-LEVER)
22	T102952	2	Retainer	-
23	T122076	1	O-Ring	(KIT <service-part>AT104041</service-part> (ALSO ORDER <service-part >AT115876</service-part> TUBE OF GREASE)) (SUB FOR T100097)
24	F3353R	1	O-Ring	(KIT <service-part>AT104041</service-part> (ALSO ORDER <service-part >AT115876</service-part> TUBE OF GREASE))
25	-	1	Part 31	(SUB AT104046)BUCKET SECTION
25	-	1	Part 33	(SUB AT104048)AUXILIARY SECTION
25	-	1	Part 32	(SUB AT104043)BOOM SECTION
26	12M7006	4	Lock Washer	6 mm
27	19M7966	4	Screw	M6 X 25
28	T22827	2	O-Ring	(KIT <service-part>AT104041</service-part> (ALSO ORDER <service-part >AT115876</service-part> TUBE OF GREASE))
29	T103097	2	Cap	-
30	21H1353	6	Screw	0.138" X 3/4"
31	AT103931	1	Electrical Coil	12-V BUCKET SECTION
31	AT103931	2	Electrical Coil	12-V BOOM SECTION
31	-	1	Part 41	(NOT REQUIRED AUXILIARY SECTION)
32	T102974	1	Disk	BUCKET SECTION
32	T102974	2	Disk	BOOM SECTION
32	-	1	Part 44	(NOT REQUIRED AUXILIARY SECTION)
33	-	1	Part 47	(NOT REQUIRED AUXILIARY SECTION)
33	T102975	2	Spring	BOOM SECTION
33	T102975	1	Spring	BUCKET SECTION
34	T103107	1	Retainer	BUCKET SECTION
34	T103107	2	Retainer	BOOM SECTION
34	-	1	Part 50	(NOT REQUIRED AUXILIARY SECTION)
35	T103096	1	Pin	BUCKET SECTION
35	T103096	2	Pin	BOOM SECTION
35	-	1	Part 53	(NOT REQUIRED AUXILIARY SECTION)
36	T103095	1	Plunger	BUCKET SECTION
36	T103095	2	Plunger	BOOM SECTION
36	-	1	Part 56	(NOT REQUIRED AUXILIARY SECTION)
37	AT104046	1	Control Valve	BUCKET (TWO-LEVER AND THREE-LEVER)
37	AT104043	1	Control Valve	(SUB FOR AT104042)BOOM (TWO-LEVER)
37	AT104048	1	Valve Stack	AUXILIARY 9SINGLE AND THREE-LEVER)
37	AT104043	1	Control Valve	BOOM (THREE-LEVER)

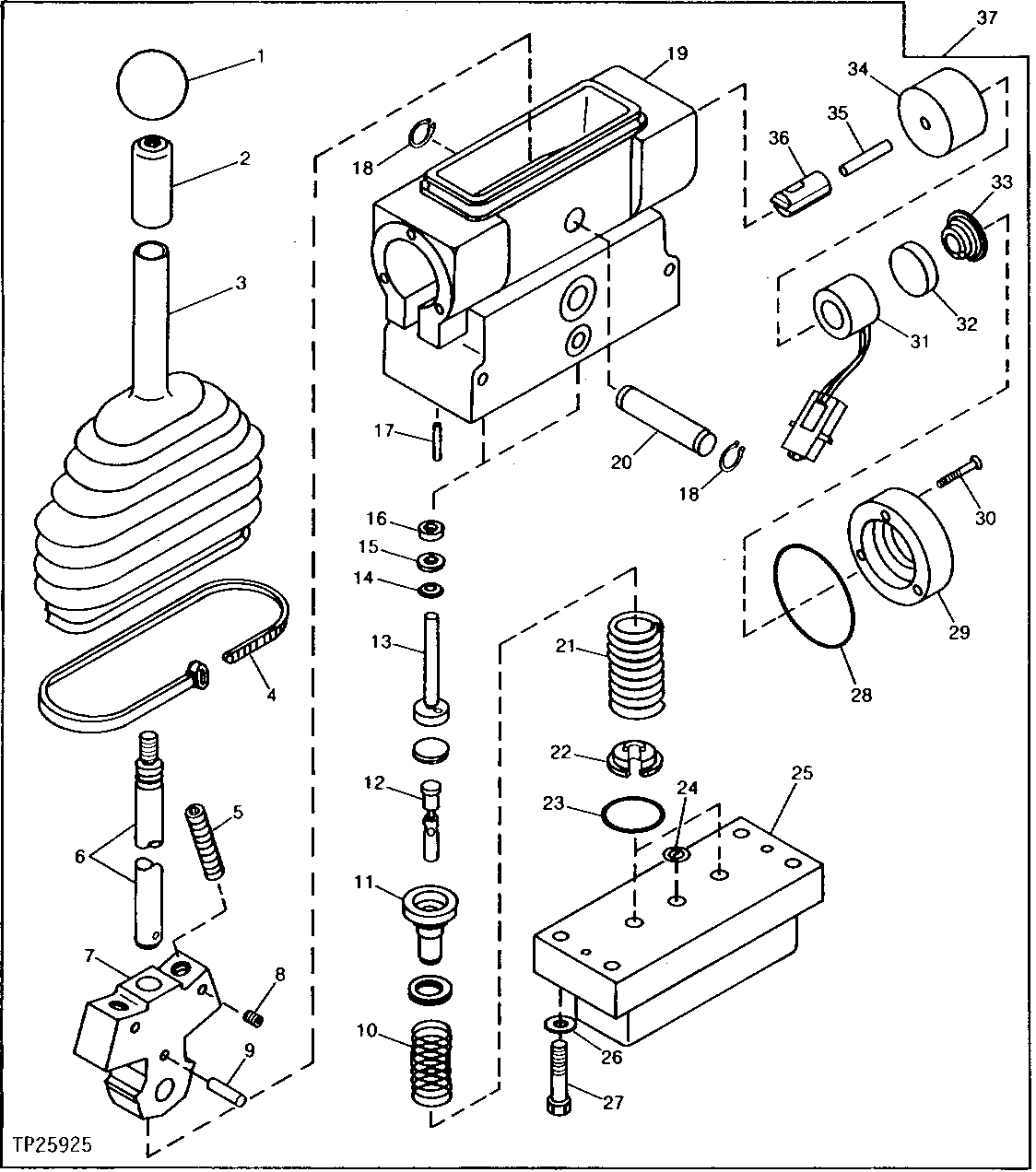

Two or Three Lever Remote Controller (644E) ( - 534614)
