Third Function Auxiliary Hydraulic Lines (644E)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R29936	2	O-Ring	-
2	38H1164	2	Adapter Fitting	-
3	T76938	8	O-Ring	-
4	AT117001	1	Oil Line	LEFT
4	AT142094	1	Oil Line	TUBE, AUXILIARY, THIRD RIGHT, TANDEM VALVE
5	AT117002	1	Oil Line	RIGHT
5	AT142095	1	Oil Line	TUBE, AUXILIARY, THIRD LEFT, TANDEM VALVE
6	AT116703	2	Hydraulic Hose	36.5252" X 1320 mm (52") X 36.5252"
7	AT117004	1	Oil Line	-
8	38H1419	2	Fitting	-
9	T123721	2	Clamp	(SUB FOR T102623)
9	T123721	1	Clamp	(SUB FOR T102623)
10	24M7239	3	Washer	10.700 X 21 X 2.500 mm
11	19M7935	3	Cap Screw	M10 X 55
12	AT151872	1	Bracket	(SUB FOR AT117102)
13	19M7402	3	Cap Screw	M10 X 25
14	-	1	Part 17	( AT116087 NO LONGER AVAILABLE FURNISH COMPONENTS), THIRD FUNCTION TWO LEVER (INCLUDES AUXILIARY VALVE SECTION, HYDRAULIC HOSES, STUDS, LINES, BANDS, O-RINGS, CONTROLLER PLATE, ADAPTERS AND HARDWARE)
14	-	1	Part 18	( AT151796 NO LONGER AVAILABLE), THIRD FUNCTION TWO LEVER (INCLUDES AUXILIARY VALVE SECTION, HYDRAULIC HOSES, STUDS, LINES, BANDS, O-RINGS, CONTROLLER PLATE, ADAPTERS AND HARDWARE)
14	-	1	Part 19	( AT116036 NO LONGER AVILABLE FURNISH COMPONENTS), THIRD FUNCTION SINGLE LEVER (INCLUDES SINGLE AUXILIARY CONTROLLER, HYDRAULIC HOSES, VALVE, STUDS, BANDS, O-RINGS, MOUNTING PLATE, ADAPTERS AND HARDWARE)
14	-	1	Part 20	( AT158309 NLA), TANDEM, THIRD FUNCTION SINGLE LEVER (INCLUDES SINGLE AUXILIARY CONTROLLER, HYDRAULIC HOSES, VALVE, STUDS, BANDS, O-RINGS, MOUNTING PLATE, ADAPTERS AND HARDWARE)
14	-	1	Part 21	( AT151818 NO LONGER AVAILABLE), THIRD FUNCTION SINGLE LEVER ( INCLUDES AUXILIARY VALVE SECTION, HYDRAULIC HOSES, STUDS, LINES, BANDS, O-RINGS, CONTROLLER PLATE, ADAPTERS AND HARDWARE)

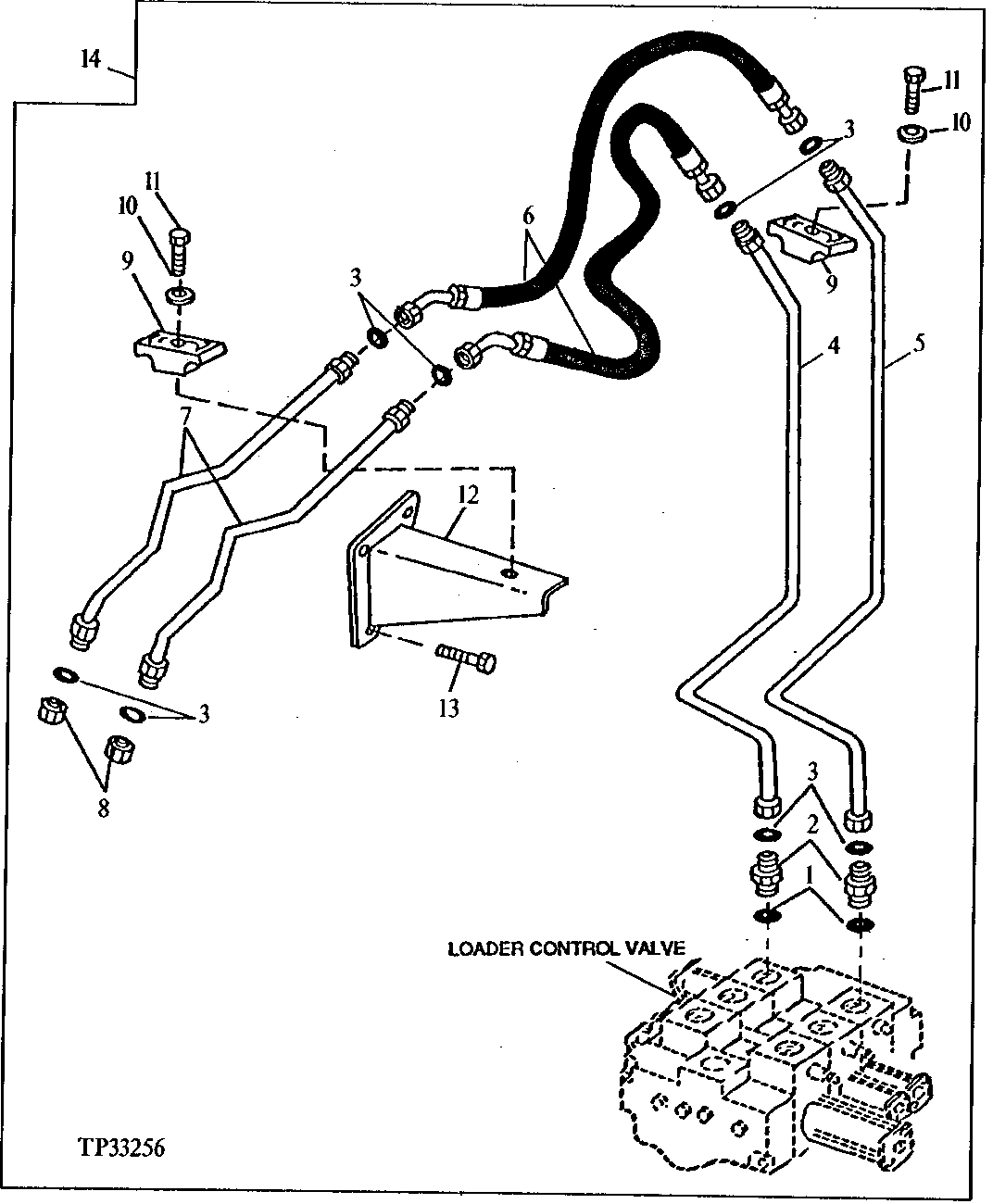

Third Function Auxiliary Hydraulic Lines (644E)
