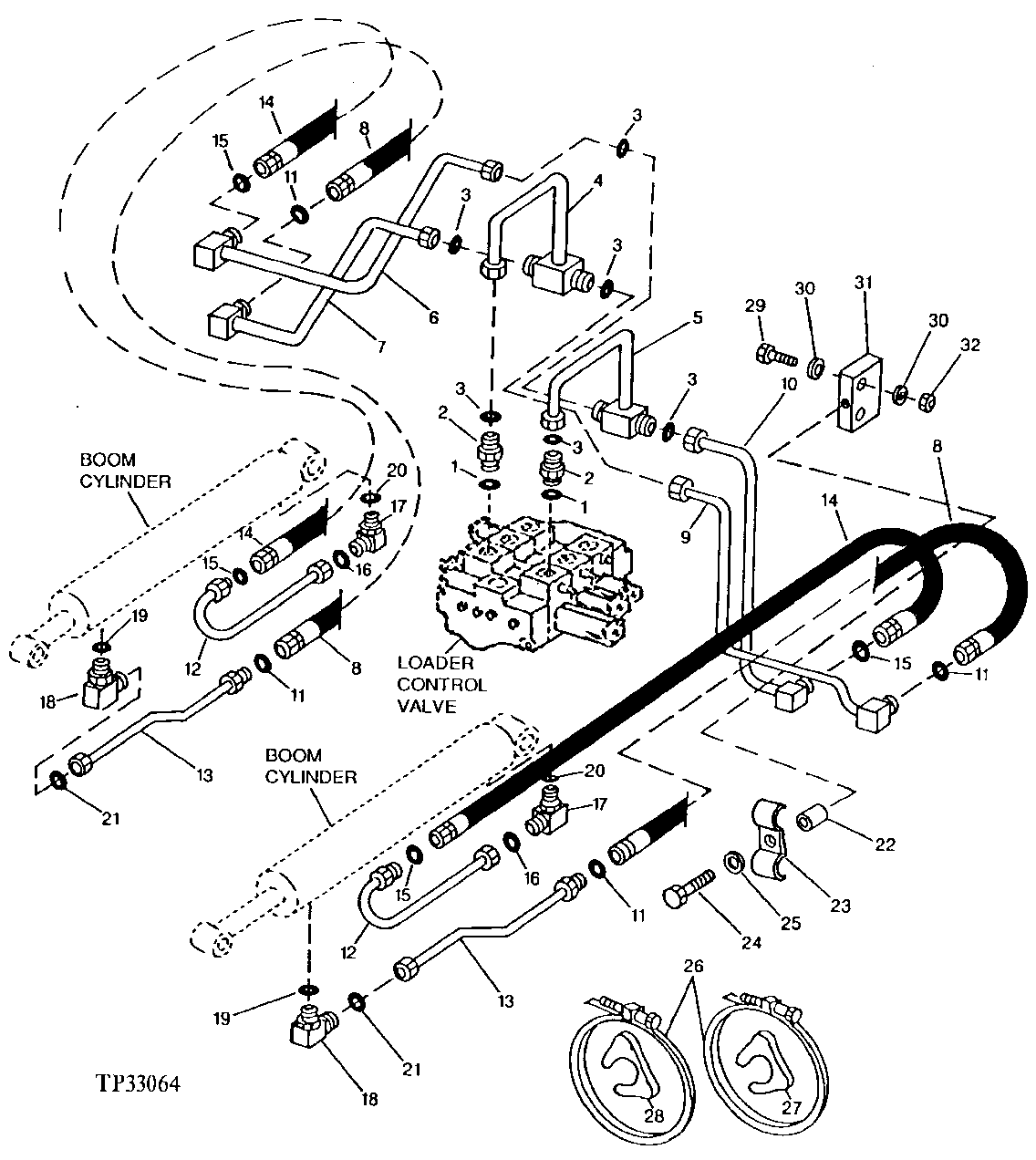

Loader Control Valve To Boom Cylinder Hydraulics (644E)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R29936	2	O-Ring	-
2	38H1196	2	Adapter Fitting	-
3	T78612	6	O-Ring	-
4	AT103079	1	Oil Line	LOWER
4	AT142060	1	Oil Line	TUBE, BOOM LOWER, TANDEM VALVE
5	AT103080	1	Oil Line	RAISE
5	AT142061	1	Oil Line	TUBE, BOOM RAISE, TANDEM VALVE
6	AT103083	1	Oil Line	-
6	AT135738	1	Line	-
7	AT142308	1	Oil Line	TUBE, BOOM LOWER RIGHT, TANDEM VALVE
7	AT135740	1	Line	-
7	AT103081	1	Oil Line	-
8	AT102435	2	Hydraulic Hose	30.1752" X 1279 mm (50-1/2") X 30.1752", LOWER
9	AT103082	1	Oil Line	-
9	AT135737	1	Line	-
9	AT142309	1	Oil Line	TUBE, BOOM LOWER LEFT, TANDEM VALVE
10	AT103084	1	Oil Line	-
10	AT135739	1	Line	-
11	T77858	4	O-Ring	-
12	AT103085	2	Oil Line	RAISE
13	AT103150	2	Oil Line	LOWER, (SUB FOR AT103086)
14	AT103088	2	Hydraulic Hose	RAISE
15	T76938	4	O-Ring	-
16	T78612	2	O-Ring	-
17	38H1008	2	Elbow Fitting	-
18	38H1037	2	Elbow Fitting	-
19	R29936	2	O-Ring	-
20	U13639	2	O-Ring	-
21	T76938	2	O-Ring	-
22	28H1697	2	Spacer	0.493" X 0.675" X 3/4"
23	T40705	2	Clamp	-
24	19M7572	2	Cap Screw	M10 X 45
25	24M7239	2	Washer	10.700 X 21 X 2.500 mm, (NO LONGER REQUIRED)
26	AT103166	4	Hose Clamp	-
27	T102005	2	Guide	RAISE TUBES
28	T105773	2	Guide	LOWER TUBES
29	19M8499	4	Cap Screw	M10 X 60
30	24H1308	8	Washer	13/32" X 1" X 0.134"
31	T127230	2	Support	-
32	14M7274	4	Nut	M10
