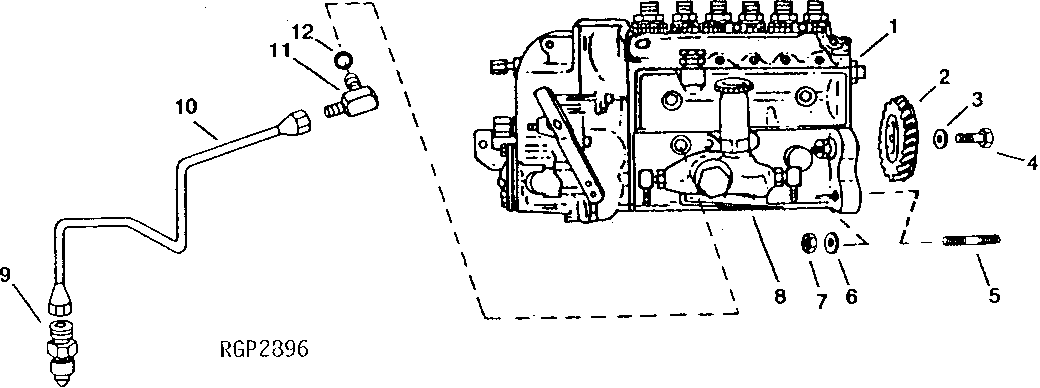

FUEL INJECTION PUMP AND LUBE LINES ( - 101062)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SE500386	1	Fuel Injection Pump Reman	(BOSCH 9400230114) (REMAN FOR RE29529)
1	SE500387	1	Fuel Injection Pump Reman	(BOSCH 0400876348) (REMAN FOR RE29529)
1	SE500388	1	Fuel Injection Pump Reman	(BOSCH 0400876359) (REMAN FOR RE29529)
1	RE29255	1	Fuel Injection Pump	("SEE YOUR AUTHORIZED PUMP REPAIR STATION FOR PARTS NOT LISTED.") (ROBERT BOSCH) (0400231114), (SUB RE51912, THIS APPLICATION OR SE500386 ) (ALSO ORDER R68275 AND (2) 19M8826)
1	RE29255	1	Fuel Injection Pump	("SEE YOUR AUTHORIZED PUMP REPAIR STATION FOR PARTS NOT LISTED.") (ROBERT BOSCH) (0400876348), (SUB RE51912, THIS APPLICATION OR SE500387) (ALSO ORDER R68275 AND (2) 19M8826)
1	RE525112	1	Fuel Injection Pump	("SEE YOUR AUTHORIZED PUMP REPAIR STATION FOR PARTS NOT LISTED.") (6076ADW01, 02) (ALSO ORDER R68275 AND (2) 19M8731 ) (SUB FOR RE35847)
1	RE35847	1	Fuel Injection Pump	-
1	SE500384	1	Fuel Injection Pump Reman	(BOSCH 0400876352) (REMAN FOR RE35847)
1	SE500385	1	Fuel Injection Pump Reman	(BOSCH 0400876361) (REMAN FOR RE35847)
1	RE51912	1	Fuel Injection Pump	-
1	SE500389	1	Fuel Injection Pump Reman	(BOSCH 0400876401) (REMAN FOR RE51912)
1	RE29529	1	Fuel Injection Pump	("SEE YOUR AUTHORIZED PUMP REPAIR STATION FOR PARTS NOT LISTED.") (ROBERT BOSCH) (PES6A100D410RS2741), (SUB RE51912 OR SE500389 ) (ALSO ORDER R68275 AND (2) 19M8826)
2	R67380	1	Gear	-
3	R63845	4	Washer	-
4	19H3336	4	Screw	3/8" X 7/8"
5	R114130	4	Stud	(SUB FOR R55396, APPL)
6	24M7239	4	Washer	10.700 X 21 X 2.500 mm, (SUB FOR R42729 OR M72490)
7	14H1090	4	Nut	3/8", (SUB FOR R32511 OR E55662, APPL)
8	RE18708	1	FUEL PUMP	(SUB RE20042, AR104674 AND RE10258)
8	RE20042	1	Fuel Pump	(6076ADW01, 02)
9	R39832	1	Adapter Fitting	(USE WITH AR91012)
10	AR91012	1	LINE	(SUB RE38732 AND R76822)
11	AR26746	1	Elbow Fitting	-
12	R79060	1	O-Ring	-

FUEL INJECTION PUMP AND LUBE LINES ( - 101062)
