Front Differential Yoke and Quill (Disconnect Option) (ROAR, ROAS, ROAL)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	JD10377	1	Bearing Cone	-
2	JD8280	1	Bearing Cup	-
3	R35366	1	Shim	0.13MM (.005")
3	R35367	1	Shim	0.25MM (.010")
3	R35365	1	Shim	0.08MM (.003")
4	R88611	1	Spacer	-
5	R88602	1	Shim	0.05MM (.002")
5	R88603	1	Shim	0.13MM (.005")
5	R88604	1	Shim	0.25MM (.010")
6	R27796	1	O-Ring	-
7	R88485	1	Bearing Housing W/O Bearing	-
8	JD8280	1	Bearing Cup	-
9	JD10377	1	Bearing Cone	-
10	T80622	1	O-Ring	-
11	R88608	1	Washer	6.35 MM (.250")
11	R88609	1	Washer	6.29 MM (.248")
11	R88610	1	Washer	6.23 MM (.245")
12	R88607	1	Nut	HEX SLOTTED
13	11H247	1	Cotter Pin	3/16" X 4"
14	R119832	1	Spring Pin	(SUB FOR M41192 OR M81896)
15	R88598	1	Yoke	-
16	R74372	2	Washer	-
17	T21841	2	Shoe	-
18	R88601	1	Shift Collar	-
19	C19243	1	Snap Ring	-
20	40M5463	1	Snap Ring	(SUB FOR L25837 AND 40M7178)
21	JD9320	1	Ball Bearing	-
22	R88488	1	Housing	(SUB R88606 AND RE45319)
23	AT12820	1	Seal	-
24	R88599	1	Shaft	-
25	R88600	1	Lever	-
26	R119832	1	Spring Pin	(SUB FOR M41192 OR M81896)
27	R42697	1	DETENT	-
28	R33277	1	SPRING	-
29	R26448	1	O-Ring	-
30	R45010	1	Fitting	-
31	R47172	6	Washer	-
32	19H2211	4	Cap Screw	1/2" X 5"
32	19H3542	2	Cap Screw	1/2" X 6-1/2"
33	JD8809	1	Needle Bearing	-
34	AR66751	1	SEAL	(USE WITH R88596)
34	RE45315	1	Seal Kit	(USE WITH R93529)
34	R100500	1	Seal	-
35	R88597	1	Sleeve	WEAR, (USE WITH R88596)
36	R88596	1	Universal Joint Yoke	(SUB RE45319)

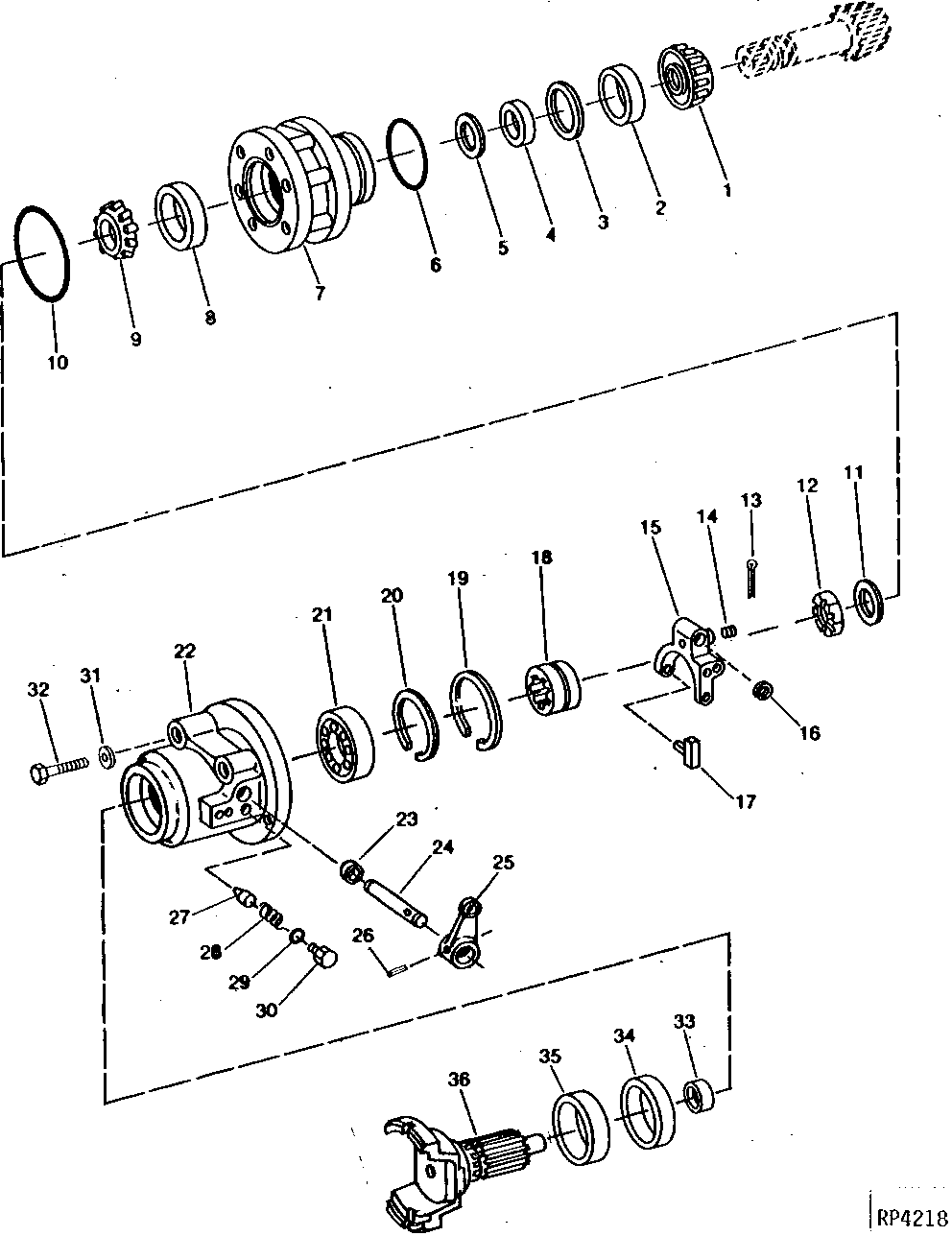

Front Differential Yoke and Quill (Disconnect Option) (ROAR, ROAS, ROAL)
