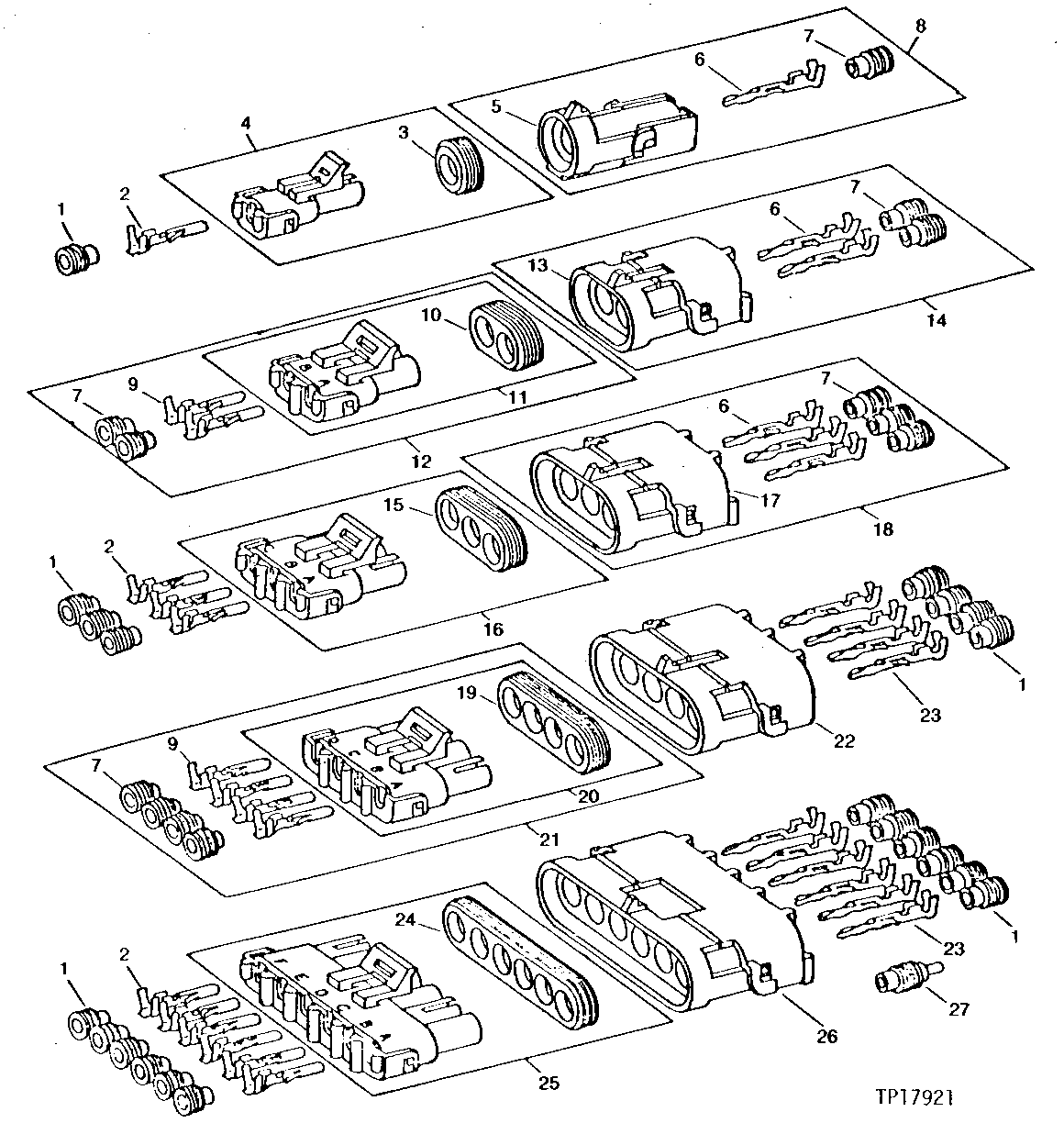

WEATHERPACK TERMINALS AND CONNECTORS [02F19]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R78059	1	Elec. Connector Seal	(PKG. OF 40) (18 OR 20 GA. WIRE) (GREEN)
1	R78062	1	Elec. Connector Seal	(PKG. OF 40) (14 GA. WIRE) (BLUE)
1	R78063	1	Elec. Connector Seal	(PKG. OF 40) (16 GA. WIRE) (GRAY)
2	R78057	1	Elec. Connector Terminal	(PKG. OF 40) (18 OR 20 GA. WIRE) (NO. 19)
2	R78060	1	Elec. Connector Terminal	(PKG. OF 40) (14 OR 16 GA. WIRE) (NO. 15)
3	R78047	1	Seal	(PKG. OF 5)
4	RE12362	1	Electrical Connector Assy	(PKG. OF 3)
5	R78052	1	Electrical Connector Assy	(PKG. OF 3)
6	R78061	1	Elec. Connector Terminal	(PKG. OF 40) (14 OR 16 GA. WIRE) (NO. 15)
7	R78063	1	Elec. Connector Seal	(PKG. OF 40) (16 GA. WIRE) (GRAY)
8	RE12334	1	Electrical Connector Assy	-
9	R78060	1	Elec. Connector Terminal	(PKG. OF 40) (14 OR 16 GA. WIRE) (NO. 15)
10	R78048	1	Elec. Connector Accessory	(PKG. OF 5)
11	RE12363	1	Electrical Connector Assy	(PKG. OF 3)
12	RE12331	1	Electrical Connector Assy	-
13	R78053	1	Electrical Connector Assy	(PKG. OF 3)
14	RE12330	1	Electrical Connector Assy	-
15	R78049	1	Seal	(PKG. OF 5)
16	RE12364	1	Electrical Connector Assy	(PKG. OF 3)
17	R78054	1	Electrical Connector Assy	(PKG. OF 3)
18	RE12332	1	Electrical Connector Assy	-
19	R78050	1	Seal	(PKG. OF 5)
20	RE12365	1	Electrical Connector Assy	(PKG. OF 2)
21	RE12333	1	Electrical Connector Assy	-
22	R78055	1	Electrical Connector Assy	(PKG. OF 2)
23	R78061	1	Elec. Connector Terminal	(PKG. OF 40) (14 OR 16 GA. WIRE) (NO. 15)
23	R78058	1	Elec. Connector Terminal	(PKG. OF 40) (18 OR 20 GA. WIRE) (NO. 19)
24	R78051	1	Seal	(PKG. OF 5)
25	RE12366	1	Electrical Connector Assy	(PKG. OF 2)
26	R78056	1	Electrical Connector Assy	(PKG. OF 2)
27	R78064	1	Elec. Connector Cavity Plug	(PKG. OF 40)

WEATHERPACK TERMINALS AND CONNECTORS [02F19]
