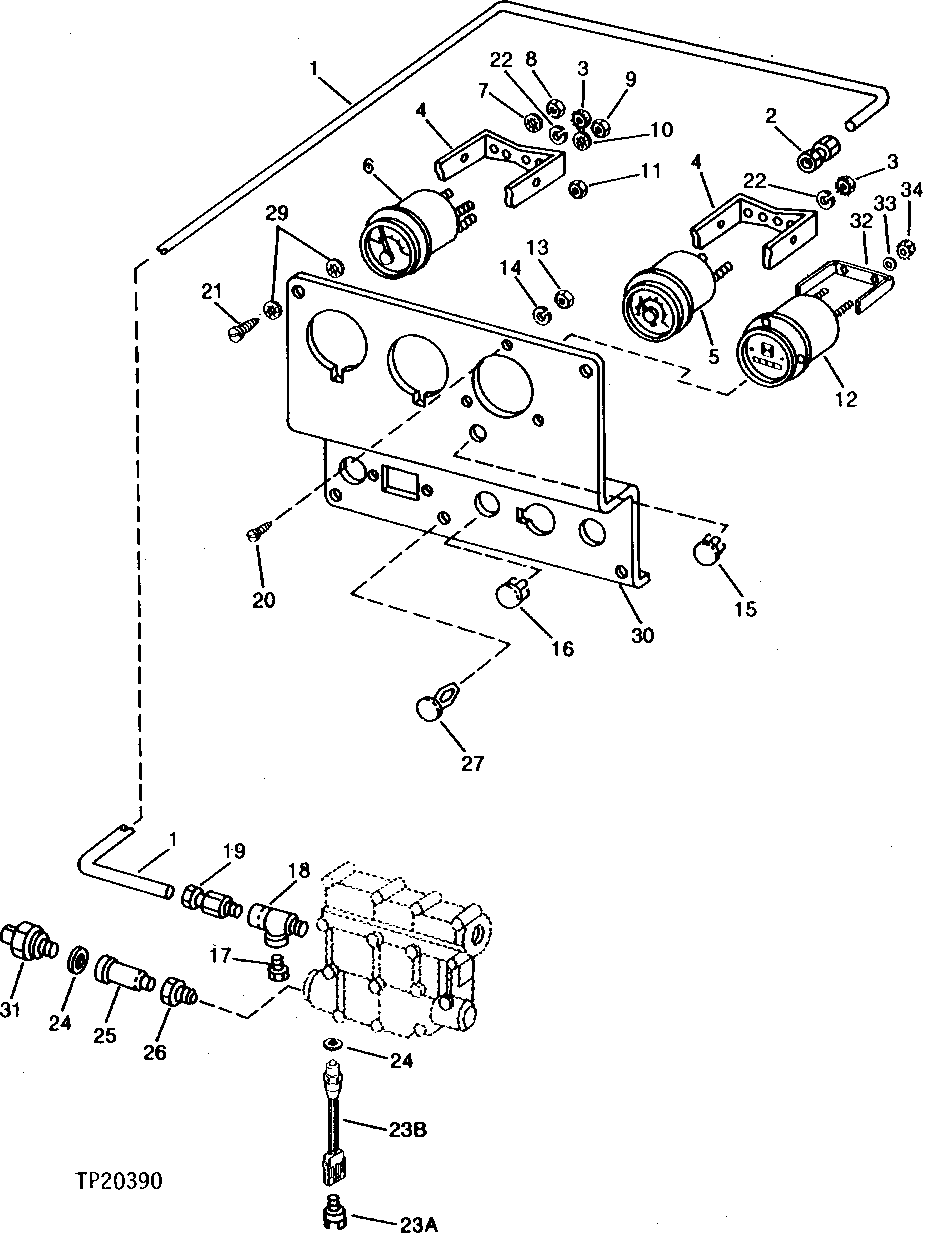

RIGHT INSTRUMENT PANEL AND GAUGES [02F24]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	TRANSMISSION OIL PRESSURE, (MAKE FROM T34589 BULK MATERIAL)
2	AT25265	1	FITTING	-
3	14M7100	4	Nut	M4
3	14H631	4	Nut	0.190"
4	T38594	2	BRACKET	-
4	T118593	2	BRACKET	-
5	AT39742	1	PRESSURE GAUGE	TRANSMISSION OIL PRESSURE, (SUB FOR AT61461, THIS APPLICATION)
5	AT102938	1	PRESSURE GAUGE	TRANSMISSION OIL PRESSURE
6	AT66705	1	GAUGE	TRANSMISSION OIL TEMPERATURE
6	AT195210	1	GAUGE	(SUB FOR AT103125) TRANSMISSION OIL TEMPERATURE
7	12H295	1	Lock Washer	INTERNAL TOOTH, NO. 10
8	14H631	1	Nut	0.190"
9	14H605	1	Nut	0.164"
10	12M7084	1	Lock Washer	4.300 MM, INTERNAL TOOTH, NO. 8
11	14H778	4	Nut	0.190"
12	AT160120	1	HOUR METER	(SUB FOR AT61458)
12	AT226353	1	Hour Meter	(SUB FOR AT86509) (SUB FOR AT80938)
13	14H1026	3	Nut	0.138"
14	12H321	3	Washer	0.138"
15	T15005	1	Plug	FUEL SHUT-OFF
15	H91792	1	PLUG	-
16	R27983	1	Plug	HORN
17	15H638	1	Pipe Plug	1/8"
18	T19158	1	Tee Fitting	-
19	AT25264	1	Fitting	MALE
20	21H1103	3	SCREW	0.138" X 3/8"
21	T83060	4	Screw	(SUB FOR T71105)
21	T83061	4	Washer	(NOT ILLUSTRATED)
22	12H295	4	Lock Washer	0.190"
22	12M7084	4	Lock Washer	4.300 MM
24	T16911	1	SHIM	-
25	R26385	1	PIN FASTENER	-
26	T35024	1	ADAPTER FITTING	-
27	T63798	1	Plug	(USE WITHOUT VANDAL PROTECTION COVER)
28	AT37368	1	SENDER	TRANSMISSION TEMPERATURE
29	12H356	8	Lock Washer	1/4"
30	AT84065	1	INSTRUMENT PANEL	(SUB AT103319) (ALSO ORDER H91792)
30	AT103319	1	INSTRUMENT PANEL	-
31	AT85153	1	SWITCH	REVERSE WARNING ALARM
32	-	1	Part 42	( T82185 NO LONGER AVAILABLE)
33	12H321	2	Washer	0.138"
34	14M7272	2	Nut	M6
23A	AT85153	1	SWITCH	NEUTRAL START
23B	AT85152	1	Switch	NEUTRAL START

RIGHT INSTRUMENT PANEL AND GAUGES [02F24]
