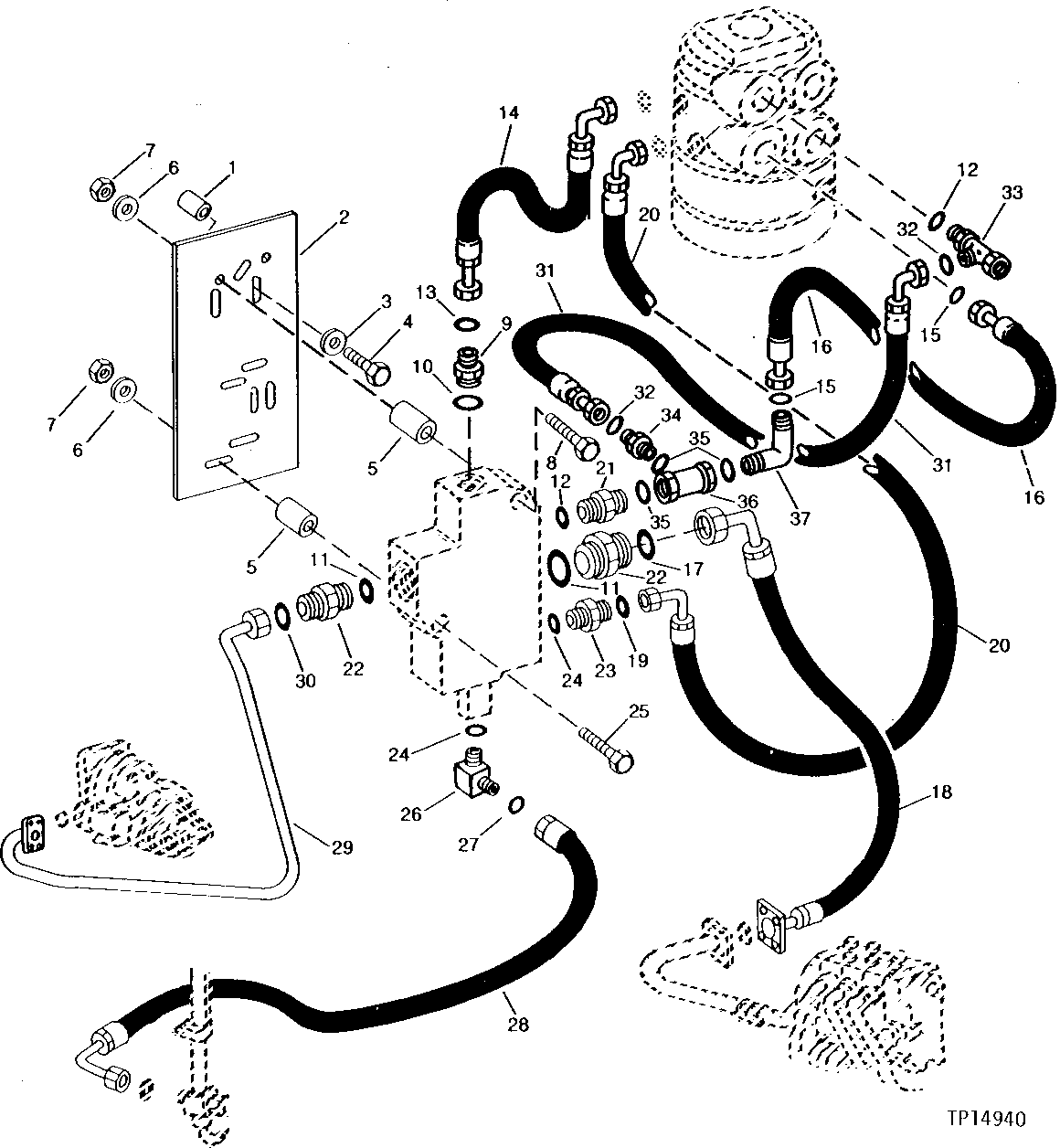

PRIORITY VALVE HYDRAULICS AND FITTINGS [01K07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U41364	2	BUSHING	(SUB FOR A23071, THIS APPLICATION)
2	T81185	1	BRACKET	-
3	24H1682	2	Washer	13/32" X 7/8" X 0.120"
4	19H2732	2	Cap Screw	3/8" X 2-3/4"
5	28H2490	2	Bushing	0.546" X 0.840" X 9/16"
6	24H1625	2	Washer	17/32" X 1" X 0.120"
7	K40014	2	Lock Nut	(SUB FOR BP12214, THIS APPLICATION)
8	19H3544	1	Cap Screw	1/2" X 4-1/2"
9	38H1159	1	Adapter Fitting	-
10	R28782	3	O-Ring	-
11	U13639	2	O-Ring	-
12	U12547	1	O-Ring	-
13	T77814	1	O-Ring	-
14	AT103285	1	HYDRAULIC HOSE - FABRICATE	(SUB FOR AT78233, THIS APPLICATION)
15	T77932	2	O-Ring	-
16	AT102678	1	HYDRAULIC HOSE	1" X 914 MM (36") X 1"
17	T78612	1	O-Ring	-
18	AT103509	1	HYDRAULIC HOSE - FABRICATE	(SUB FOR AT84250)
19	T77613	1	O-Ring	-
20	AT103283	1	HYDRAULIC HOSE - FABRICATE	(SUB FOR AT102544)
21	AT102661	1	ADAPTER FITTING	(SUB FOR 38H1329, THIS APPLICATION)
22	38H1165	2	Adapter Fitting	-
23	38H1309	1	Adapter Fitting	-
24	R28782	2	O-Ring	-
25	19H1739	1	Cap Screw	1/2" X 4-1/2"
26	38H1003	1	Elbow Fitting	-
27	T77814	1	O-Ring	-
28	AT84418	1	HYDRAULIC HOSE - FABRICATE	9/16" X 1 549 MM (61") X 13/16"
29	AT82337	1	OIL LINE	-
30	T78612	1	O-Ring	-
31	AT84416	1	HYDRAULIC HOSE - FABRICATE	1-3/16" X 1 143 MM (45") X 1-3/16"
32	T77858	2	O-Ring	-
33	38H1026	1	Tee Fitting	-
34	38H1193	1	Adapter Fitting	-
35	R26906	3	O-Ring	-
36	AT30373	1	PRESSURE RELIEF VALVE	-
37	38H1006	1	Elbow Fitting	-

PRIORITY VALVE HYDRAULICS AND FITTINGS [01K07]
