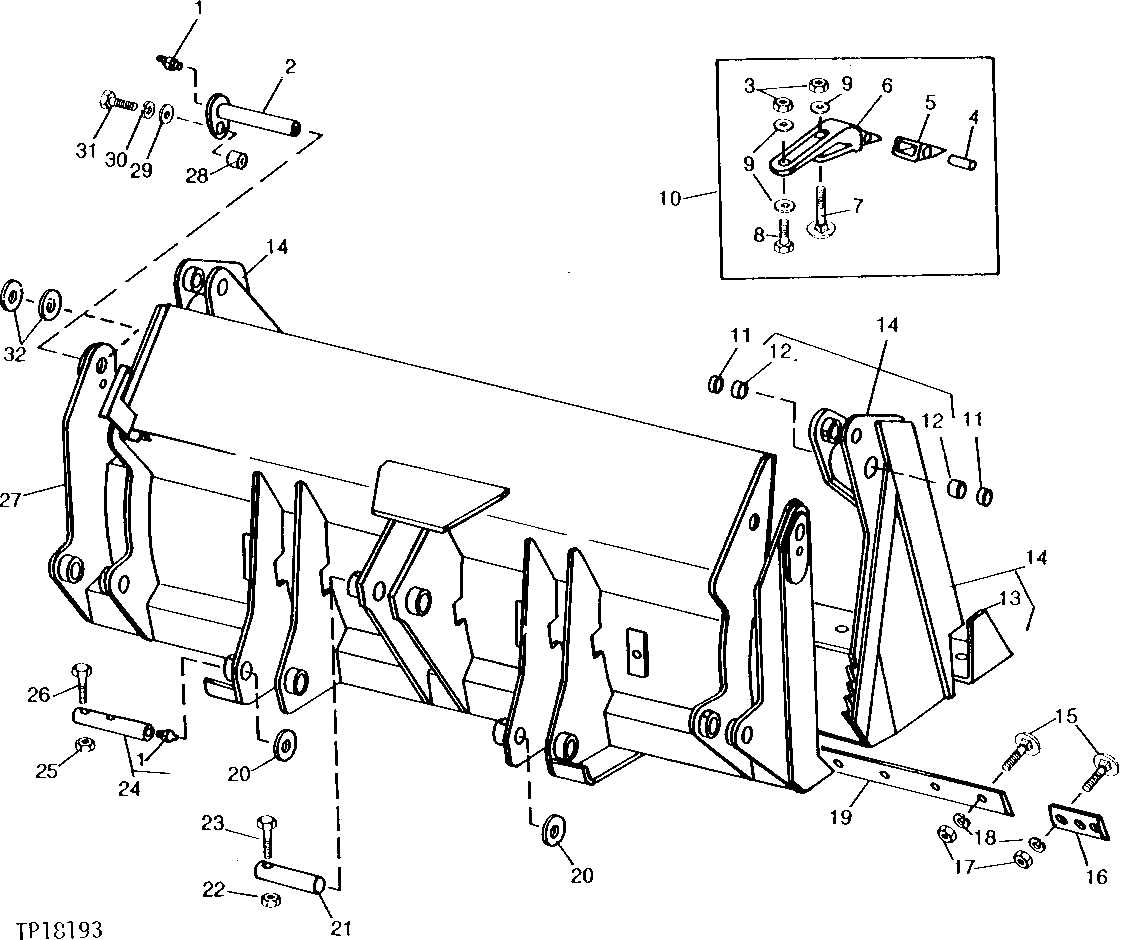

MULTI-PURPOSE BUCKET 2-1/2 CU. YD. (1.9 M3) [03B07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T162396	3	Lubrication Fitting	STRAIGHT, 1/8", (SUB FOR JD7759 OR JD7798)
2	AT60867	2	PIN FASTENER	-
3	K40016	2	Lock Nut	-
4	TP160	1	Pin	(SUB FOR T25101)
5	T29887	1	TOOTH	TIP
6	-	1	Part 6	(SUB AT65135)
7	19H2646	1	CAP SCREW	3/4" X 3-5/8"
8	19H2431	1	CAP SCREW	3/4" X 2-1/4", (SUB FOR 19H1782)
9	24H1400	3	Washer	25/32" X 1-5/8" X 1/4"
10	-	9	Part 10	( AT65135 NO LONGER AVAILABLE) (FOR USE WITH 1.9 M3 (2-1/2 CU. YD.) MULTI-PURPOSE BUCKET AND 2.3 M3 (3 CU. YD.) GENERAL PURPOSE BUCKET)
11	T63053	8	SEAL	PIN
12	T63051	4	BUSHING	-
13	T65255	1	DURA-MAX TM CUTTING EDGE	-
14	AT62151	1	LOADER BUCKET	NLA
15	10H1047	15	Bolt	3/4" X 2-1/4"
16	T31148	2	CUTTING EDGE	-
17	14H1058	15	Nut	3/4"
18	12H236	15	Lock Washer	3/4"
19	T44639	1	CUTTING EDGE	BLADE
20	T64164	1	WASHER	-
21	T62925	1	PIN	-
22	K40016	1	Lock Nut	-
23	19H3210	1	Cap Screw	3/4" X 5-1/4", (SUB FOR 19H1892)
24	AT60991	2	PIN FASTENER	-
25	K40015	2	Lock Nut	-
26	19H3353	2	Cap Screw	5/8" X 5"
27	AT80785	1	BLADE	-
28	28H1596	2	WASHER	1/2" X 5/16"
29	24H1162	2	Washer	17/32" X 1-1/4" X 0.060"
30	12H301	2	Lock Washer	1/2"
31	19H2472	2	Cap Screw	1/2" X 1"
32	24H1595	4	Washer	2-1/16" X 3" X 0.075"

MULTI-PURPOSE BUCKET 2-1/2 CU. YD. (1.9 M3) [03B07]
