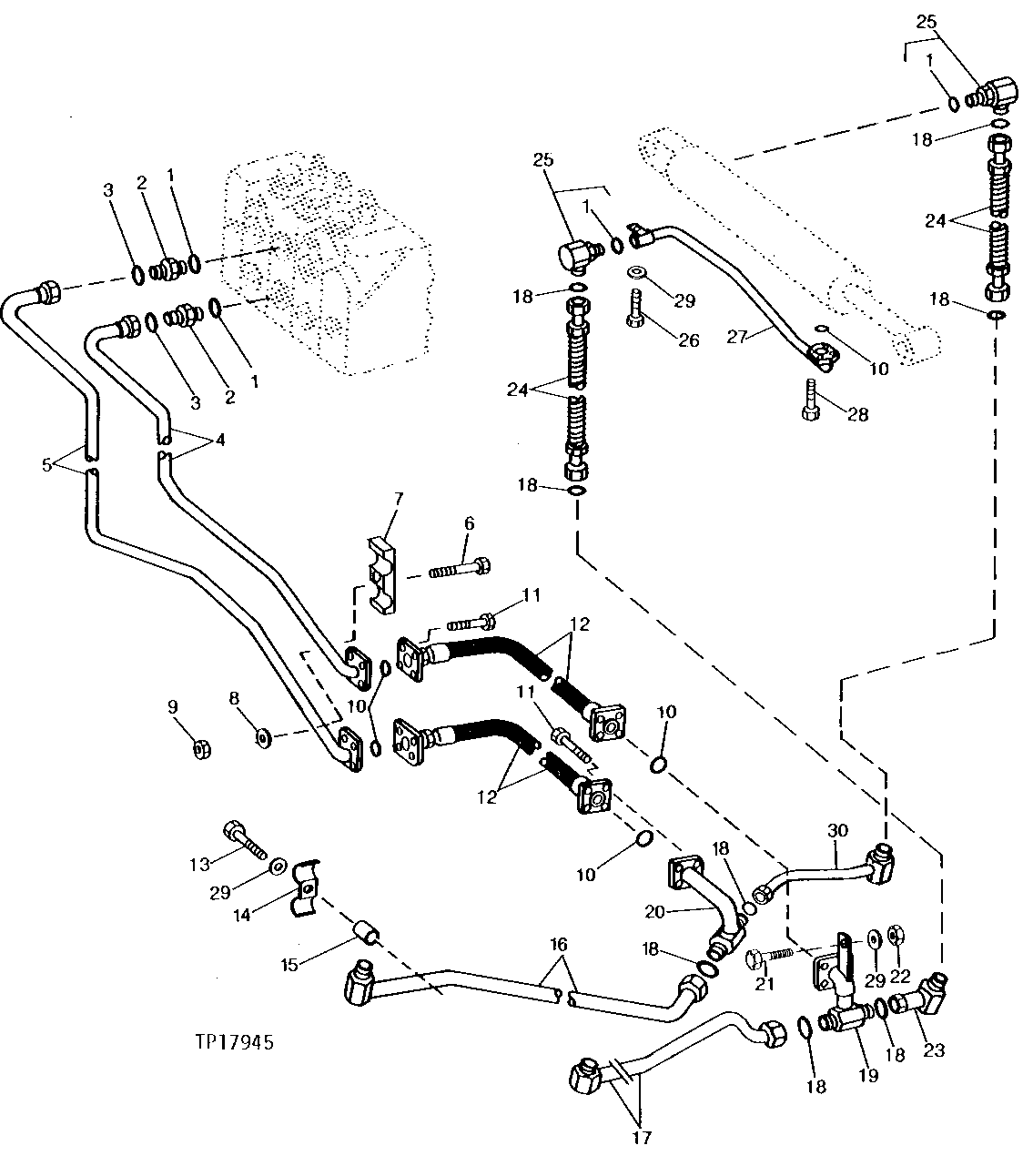

LOADER CONTROL VALVE TO BOOM CYLINDER HYDRAULICS (SERIAL NO. 513620- ) [03C15]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R29936	6	O-Ring	-
2	38H1196	2	Adapter Fitting	-
3	T78612	1	O-Ring	-
4	AT82181	1	OIL LINE	-
5	AT82182	1	OIL LINE	-
6	19H3057	1	Cap Screw	1/2" X 2-3/4"
7	T52979	1	Clamp	-
8	24H1111	1	Washer	17/32" X 1-1/16" X 0.090"
9	H32811	2	Lock Nut	-
10	H61355	6	O-RING	(SUB FOR U12037, THIS APPLICATION)
11	19H3385	16	Cap Screw	1/2" X 1-1/8"
12	AT82185	2	HYDRAULIC HOSE - FABRICATE	1" X 1 270 MM (50") X 1"
13	19H3267	2	Cap Screw	3/8" X 1-5/8"
14	T40705	2	Clamp	-
15	28H3381	2	Spacer	0.493" X 0.675" X 5/8"
16	AT103297	1	OIL LINE	-
17	AT103300	1	OIL LINE	-
18	T76938	8	O-Ring	-
19	AT103298	1	OIL LINE	-
20	AT103295	1	OIL LINE	-
21	19H2676	1	Cap Screw	3/8" X 1"
22	T54568	1	Lock Nut	-
23	AT103299	1	OIL LINE	-
24	AT103301	4	HYDRAULIC HOSE - FABRICATE	1-7/16" X 705 MM (27-3/4") X 1-7/16"
25	AT82169	4	ELBOW FITTING	MARK WITH (A)
25	AT82189	1	KIT	-
26	19H3065	2	Cap Screw	3/8" X 2"
27	AT61307	2	TUBE	-
28	19H2929	8	Screw	3/8" X 1.120"
29	12H304	5	Lock Washer	3/8"
30	AT103296	1	OIL LINE	-

LOADER CONTROL VALVE TO BOOM CYLINDER HYDRAULICS (SERIAL NO. 513620- ) [03C15]
