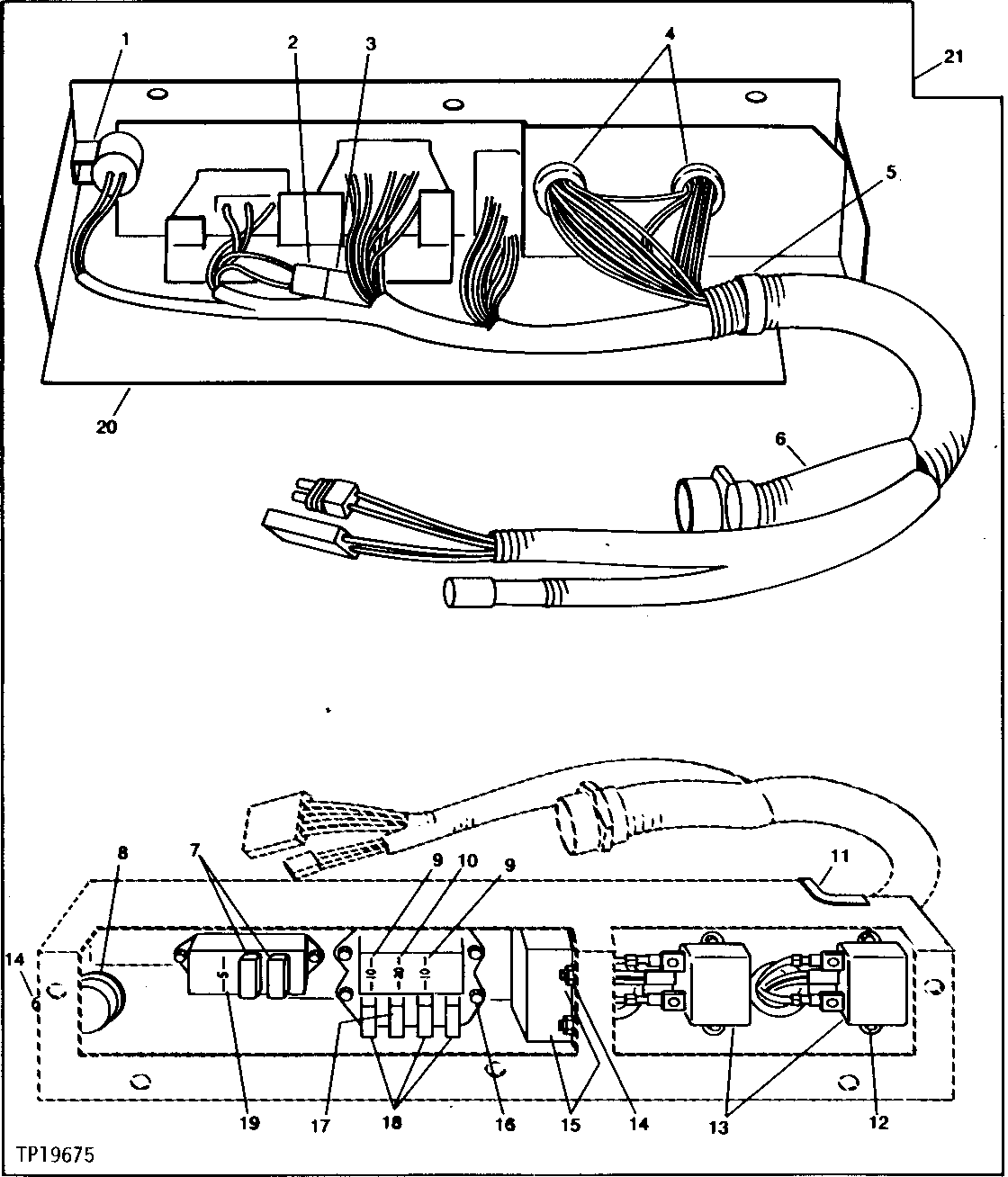

LOAD CENTER PANEL ASSEMBLY (SERIAL NO. 512189- ) [02F13]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T29417	1	BRACKET	-
2	R44302	1	Tie Band	-
3	AT103399	1	Diode	-
4	H31207	2	GROMMET	-
5	T26955	1	Clamp	-
5	24H1287	1	Washer	9/32" X 5/8" X 0.065"
5	14H786	1	Nut	1/4"
6	AT103176	1	WIRING HARNESS	(WITH AIR CONDITIONING)
6	AT103328	1	WIRING HARNESS	(WITHOUT AIR CONDITIONING)
7	T103834	2	Circuit Breaker	(20-AMP) (WITH AIR CONDITIONING)
8	AU41465	1	Flasher	-
9	57M7121	2	Fuse	(10-AMP)
10	57M7120	1	Fuse	(20-AMP)
11	-	1	Part 14	(MAKE FROM T61798 BULK MATERIAL, CUT TO LENGTH)
12	24H1287	4	Washer	9/32" X 5/8" X 0.065"
12	14H786	4	Nut	1/4"
13	AT103228	2	Relay	-
14	14H786	2	Nut	1/4", (WITHOUT AIR CONDITIONING)
14	24H1287	2	Washer	9/32" X 5/8" X 0.065", (WITHOUT AIR CONDITIONING)
14	14H786	3	Nut	1/4", (WITH AIR CONDITIONING)
14	24H1287	3	Washer	9/32" X 5/8" X 0.065", (WITH AIR CONDITIONING)
14	19H1227	3	Cap Screw	1/4" X 1/2", (WITH AIR CONDITIONING)
14	19H1227	2	Cap Screw	1/4" X 1/2", (WITHOUT AIR CONDITIONING)
15	AT75769	2	Relay	(WITH AIR CONDITIONING)
15	AT75769	1	Relay	(WITHOUT AIR CONDITIONING)
16	24H1283	8	Washer	7/32" X 1/2" X 0.049", (WITHOUT AIR CONDITIONING)
16	14H631	4	Nut	0.190", (WITHOUT AIR CONDITIONING)
16	21H1455	4	Screw	0.190" X 3/4", (WITHOUT AIR CONDITIONING)
16	14H631	6	Nut	0.190", (WITH AIR CONDITIONING)
16	24H1283	12	Washer	7/32" X 1/2" X 0.049", (WITH AIR CONDITIONING)
16	21H1455	6	Screw	0.190" X 3/4", (WITH AIR CONDITIONING)
17	T102780	1	Circuit Breaker	(25-AMP)
18	T102781	3	CIRCUIT BREAKER	(30-AMP) (WITH AIR CONDITIONING)
18	T102781	1	CIRCUIT BREAKER	(30-AMP) (WITHOUT AIR CONDITIONING)
19	57M7125	1	Fuse	(5-AMP) (WITH AIR CONDITIONING)
20	AT103317	1	HOUSING	-
21	AT103138	1	ELECTRICAL LOAD CENTER	(WITH AIR CONDITIONING)
21	AT103293	1	ELECTRICAL LOAD CENTER	(WITHOUT AIR CONDITIONING)
