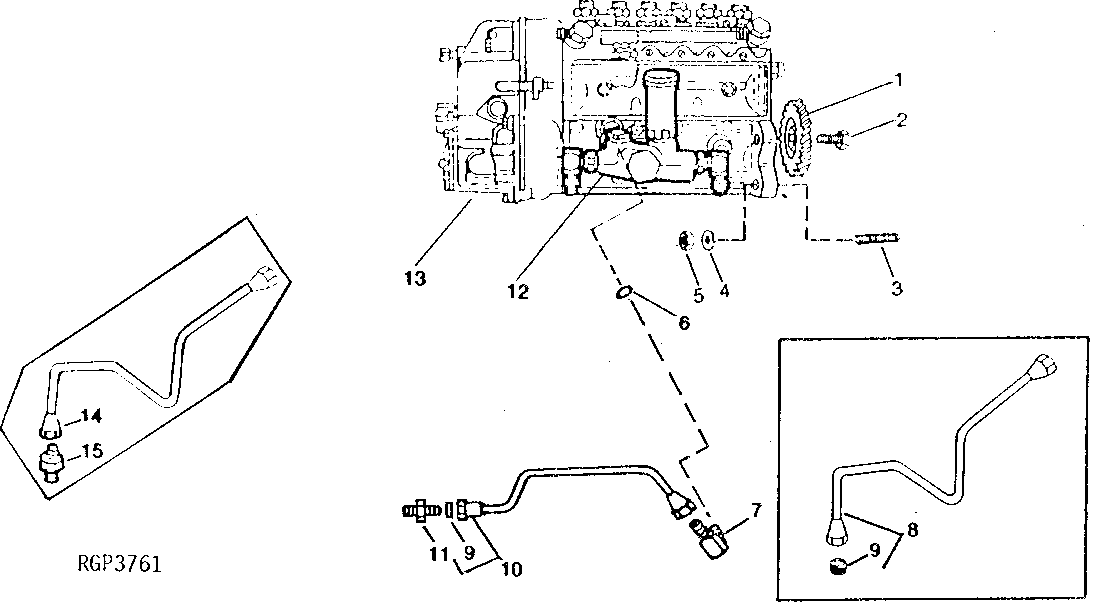

FUEL INJECTION PUMP AND LUBE LINES (6466TT 05) (ROBERT BOSCH) [01G12]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R68274	1	GEAR	(SUB FOR AR88905, APPL)
2	AR59115	3	SELF-LOCKING SCREW	3/8" X 0.870", (SUB 19H3336 AND R63845)
2	19H3336	3	Screw	3/8" X 7/8"
2	R63845	3	Washer	-
3	R114130	4	Stud	(SUB FOR R55396, APPL)
4	M72490	4	Washer	(SUB FOR R42729)
5	14H1090	4	Nut	3/8", (SUB FOR R32511 OR E55662, APPL)
6	R79060	1	O-Ring	-
7	AR26746	1	Elbow Fitting	-
8	RE38732	1	Oil Line	(SUB FOR AR91012 OR RE33486)
9	R67264	1	Packing	-
10	RE49899	1	Oil Line	-
11	R76822	1	Fitting	(USE WITH RE33486, RE38732 OR RE49899)
12	RE18708	1	FUEL PUMP	(SUB RE20042 WITHOUT ELB0WS) (ALSO ORDER AS REQUIRED AR104674 OR RE10258)
13	RE19918	1	Fuel Injection Pump	(A) (SUB RE19919, R53899, (2) 51M4237, R68275 AND (2) 19M8826 OR SE500221)
13	RE19919	1	FUEL INJECTION PUMP	(A) (PES6A100D410R52676-01) (ALSO ORDER R53899, (2) 51M4237, R68275 AND (2) 19M8826)
13	SE500221	1	Fuel Injection Pump Reman	(REMANUFACTURED FOR RE19919) CALL 1-888-697-3626
14	AR91012	1	LINE	(SUB RE38732 AND R76822, APPL)
15	R39832	1	Adapter Fitting	(USE WITH AR91012)

FUEL INJECTION PUMP AND LUBE LINES (6466TT 05) (ROBERT BOSCH) [01G12]
