Открытый узел

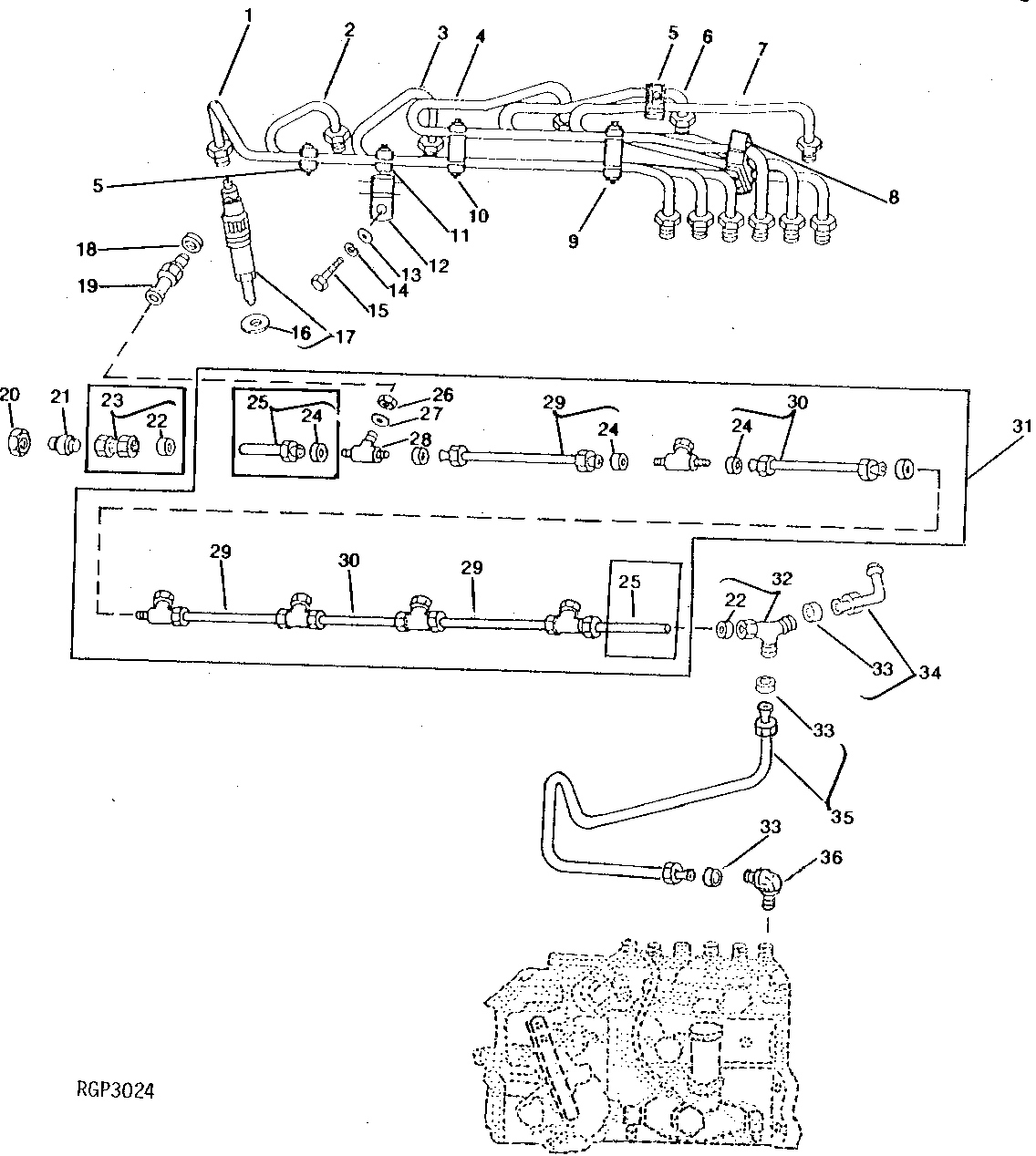

FUEL INJECTION NOZZLES AND LINES [01G10]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR100217	1	FUEL LINE	NO. 6
2	AR100216	1	FUEL LINE	NO. 5
3	AR100215	1	FUEL LINE	NO. 4
4	AR100214	1	FUEL LINE	NO. 3
5	R59305	2	Strap	-
5	R58186	4	Clamp	-
5	R61144	2	Strap	-
5	21H1463	2	Cap Screw	0.190" X 7/8"
6	AR100213	1	FUEL LINE	NO. 2
7	AR100212	1	FUEL LINE	NO. 1
8	R59298	1	Strap	-
8	R59297	2	Half Clamp	-
8	R61145	1	Strap	-
8	21H1463	2	Cap Screw	0.190" X 7/8"
9	R61145	1	Strap	-
9	R71398	2	Screw	0.190" X 1-1/2"
9	R71212	1	Clamp	-
9	R59298	1	Strap	-
9	R59297	2	Half Clamp	-
10	R71398	1	Screw	0.190" X 1-1/2"
10	R61144	1	Strap	-
10	R74804	1	Clamp	-
10	R74030	1	Clamp	-
10	R58186	1	Clamp	-
10	R59305	1	Strap	-
11	R59298	1	Strap	-
11	R59297	2	Half Clamp	-
11	21H1463	2	Cap Screw	0.190" X 7/8"
12	RE47120	1	Absorber	(SUB FOR RE12766)
13	24H1305	1	Washer	13/32" X 13/16" X 0.065"
14	12M7066	1	Lock Washer	10 MM
15	19M3143	1	Cap Screw	M10 X 20
16	R64840	1	Washer	9.270 X 18.160 X 2 MM (0.365" X 0.715" X 0.079")
17	SE500103	1	INJECTION NOZZLE	(REMANUFACTURED FOR AR74665) (PKG OF 6)
17	SE501112	1	Injection Nozzle Reman	(REMANUFACTURED FOR AR74665) (PKG OF 1)
17	AR74664	6	INJECTION NOZZLE	(ROBERT BOSCH)
17	SE500102	1	Injection Nozzle Reman	(REMANUFACTURED FOR AR74664) (PKG OF 6)
17	SE501111	1	Injection Nozzle Reman	(REMANUFACTURED FOR AR74664) (PKG OF 1)
17	AR74665	6	NOZZLE HOLDER	(ROBERT BOSCH)
18	R59294	6	SEALING RING	(USE WITH R59293 OR R83558)
18	R77551	6	O-Ring	(USE WITH R87082)
19	R59293	6	FITTING	(SUB (6) R87082 AND (6) R77551)
19	R83558	6	FITTING	(SUB R87082 AND R77551)
19	R87082	6	Fitting	(ALSO ORDER R77551)
20	R51937	1	Tube Nut	-
21	AR85519	1	Plug	-
22	R79138	2	SLEEVE	(NO LONGER REQUIRED)
22	R79138	1	SLEEVE	-
23	AR87443	1	UNION FITTING	(NO LONGER REQUIRED)
24	R51936	12	Sealing Washer	-
24	R51936	11	Sealing Washer	-
25	RE15806	2	FUEL LINE	(SUB RE23319)
25	RE23319	1	FUEL LINE	(SUB FOR RE15806)
26	R79604	6	Tube Nut	-
27	R79605	6	Washer	-
28	R79606	6	Tee Fitting	-
29	RE15807	3	Fuel Line	-
30	RE15808	2	Fuel Line	-
31	RE27786	1	FUEL LINE	(ALSO ORDER RE23319 AND R79138) (SUB FOR RE21103 OR RE15805)
32	AR88120	1	TEE FITTING	-
33	R51936	3	Sealing Washer	-
34	AR104650	1	Fuel Line	LEAK-OFF
35	RE10527	1	FUEL LINE	-
36	R67364	1	Elbow Fitting	-

FUEL INJECTION NOZZLES AND LINES [01G10]

Нет текстового описания
