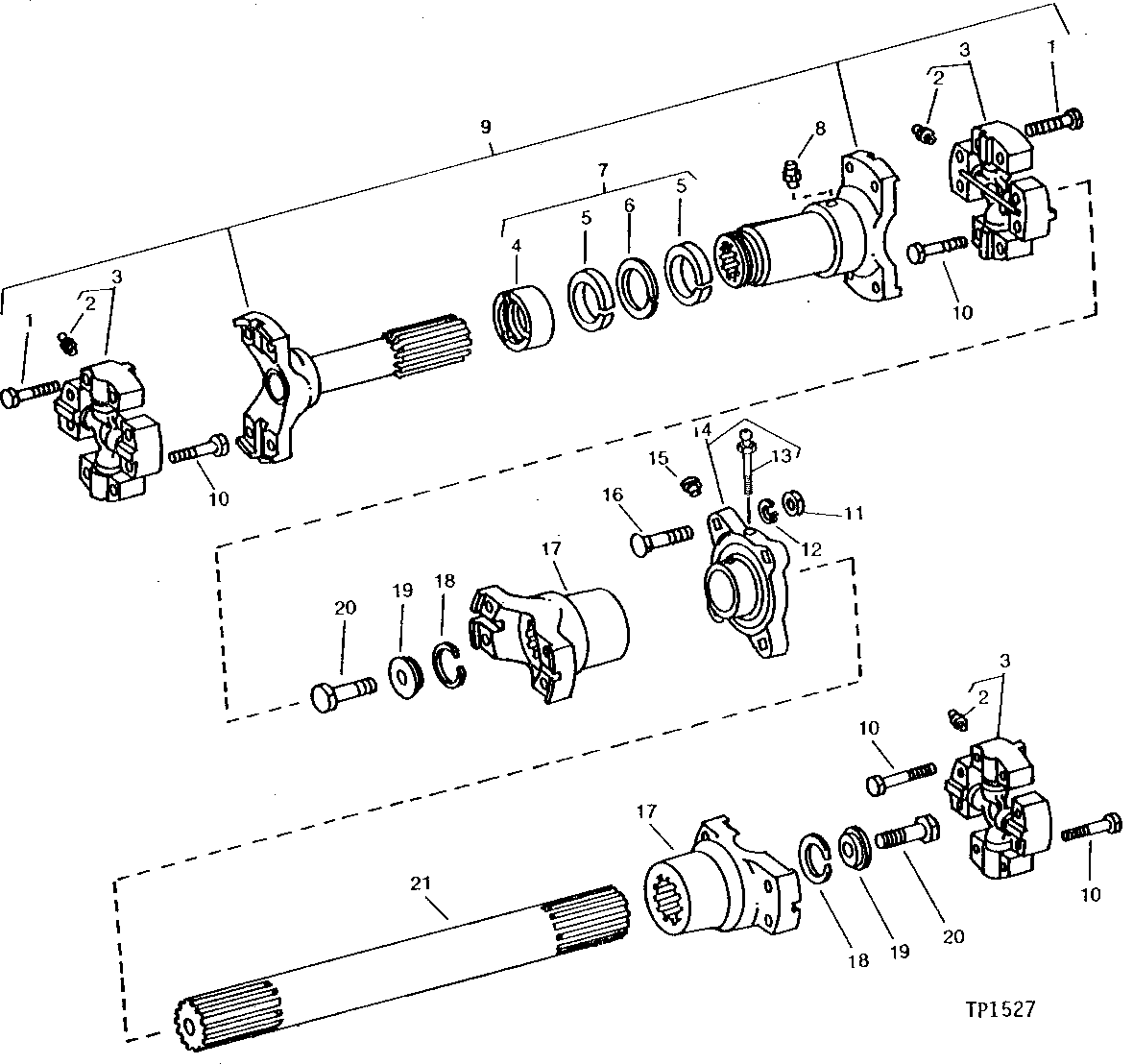

FRONT DIFFERENTIAL TELESCOPING UNIVERSAL (MECHANICS) [01C05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3012	8	Cap Screw	HS, SAE 8, 1/2" X 2-3/8"
2	R61943	3	FITTING	(USE IF AVAILABLE) 1/4" THREAD X 1-5/8" LONG
2	JD7782	12	Lubrication Fitting	1/8" THREAD X 1-3/4" LONG
2	JD5814	1	Lubrication Fitting	(SUB FOR R61943)
3	RE40111	3	Cross And Bearing Assembly	(SUB FOR AR95974)
4	-	1	Part 6	STUFFING, (SUB AT64324)
5	-	2	Part 7	(SUB AT64324)
6	-	1	Part 8	FELT, (SUB AT64324)
7	AT64324	1	KIT	DUST CAP AND WASHER, 16 SPLINE STUB YOKE
8	JD7797	1	Lubrication Fitting	STRAIGHT, 1/4"
9	AT80301	1	UNIVERSAL JOINT	-
10	19H3183	16	CAP SCREW	1/2" X 2-1/8"
11	14H856	4	Nut	1/2"
12	12H301	4	Lock Washer	1/2"
13	JD7842	1	Lubrication Fitting	STRAIGHT, 1/4"
14	AT167717	1	BEARING WITH HOUSING	(SUB FOR AT25143 OR AT150856) (ALSO ORDER T149265 NO GREASE TAG (NOT ILLUSTRATED)
15	T27135	1	PIN	-
16	03H1764	4	Bolt	RD. HD., 1/2" X 1-3/4"
17	T59890	2	UNIVERSAL JOINT YOKE	-
18	T27132	2	SNAP RING	-
19	T27134	2	WASHER	-
20	19H1356	2	CAP SCREW	5/8" X 1-3/4"
21	T63818	1	SHAFT	-

FRONT DIFFERENTIAL TELESCOPING UNIVERSAL (MECHANICS) [01C05]
