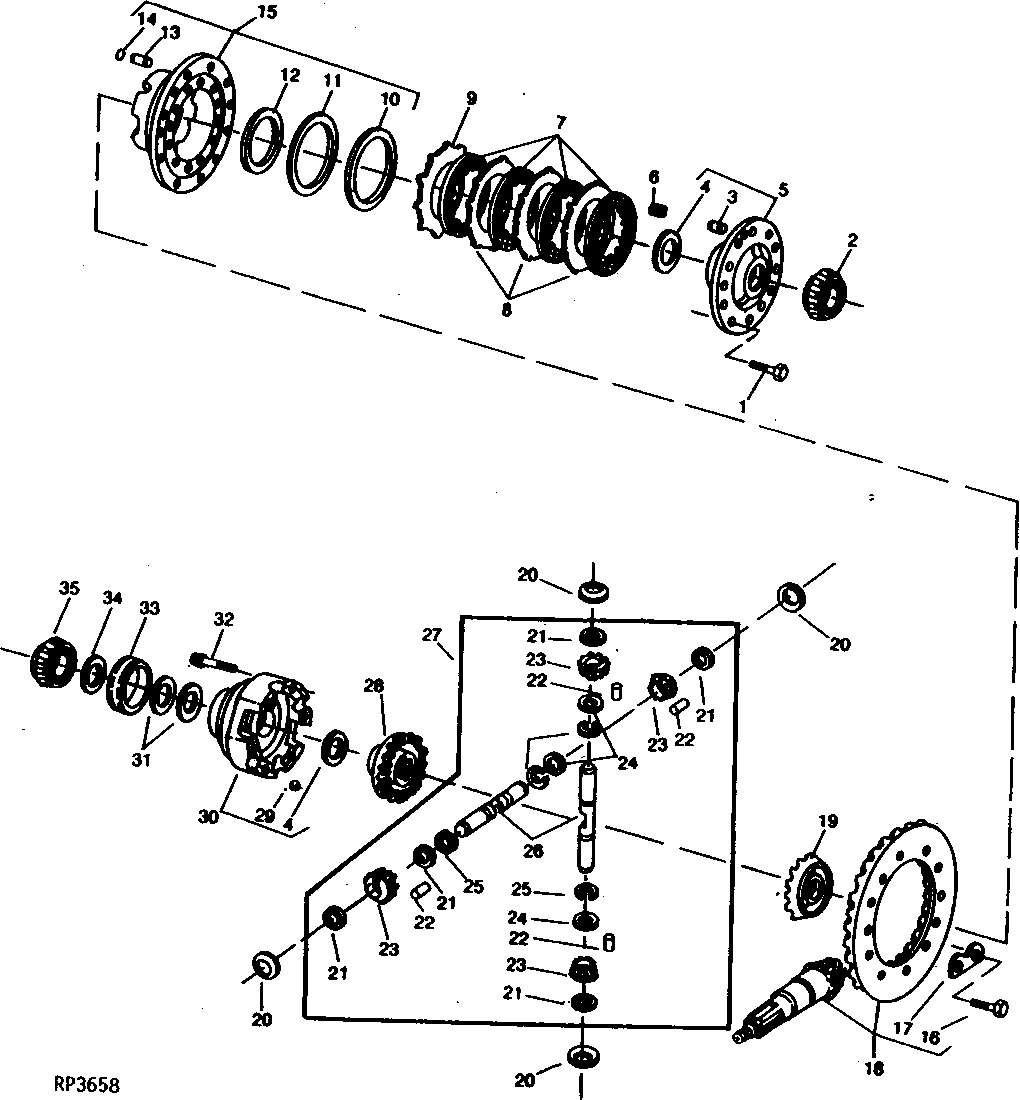

FRONT DIFFERENTIAL HOUSING (DIFFERENTIAL LOCK) [01B18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R116064	12	CAP SCREW	(SUB FOR (12) R40236)
2	JD9601	1	Bearing Cone	-
3	34H311	3	Spring Pin	1/4" X 7/8"
4	R93623	2	Thrust Washer	(SUB FOR R77145)
5	AR90626	1	COVER	(MARKED R68522 OR R98200) (SUB R98200, R93623 AND (3) 34H311)
6	R41770	3	Spring	-
7	AR86454	4	DISK WITH INNER SPLINE	(SUB (4) RE53823, R34857 AND R34858)
8	R34858	3	Clutch Plate	-
9	R34857	1	Clutch Plate	-
10	R58775	1	Piston	-
11	R68615	1	O-Ring	-
12	R68616	1	Washer	-
13	R70532	1	BUSHING	(USE WITH R70529)
14	R60038	1	Packing	-
15	AR98726	1	HOUSING	(MARKED R70529) (SUB RE53705, RE53244 AND R60038)
16	R48787	12	Cap Screw	-
17	R56887	6	PLATE	-
18	RE18896	1	BEVEL GEAR DRIVE	(SUB RE16527, RE50114 AND (6) R56877) (GEAR MARKED R64069 AND SHAFT MARKED R56288 OR R80048)
19	R59290	1	Bevel Gear	-
20	R59460	4	Thrust Washer	-
21	R70112	4	Thrust Washer	-
22	R70115	104	Needle Roller	-
23	R68170	4	PINION	-
24	R70113	4	Thrust Washer	-
25	YZ120471	4	Ring	(SUB FOR R70114)
26	R70111	2	Pinion Shaft	-
27	AR91483	1	PINION	NO LONGER AVAILABLE, ORDER UNIT PARTS
28	R59289	1	Bevel Gear	-
29	H871R	1	Ball	-
29	400R	1	Ball	-
30	RE21029	1	Housing	(MARKED R82197) (SUB RE53244, RE53705, (12) 19H2563, (12) T105740)
31	R34513	2	Ring	-
32	R116211	8	Screw	(SUB FOR R52718)
33	AR92557	1	SEAL	-
34	AR87786	1	SEAL	-
35	JD8159	1	Bearing Cone	-

FRONT DIFFERENTIAL HOUSING (DIFFERENTIAL LOCK) [01B18]
