CANOPY FRAME ASSEMBLY [02G16]

CANOPY FRAME ASSEMBLY [02G16]

CANOPY FRAME ASSEMBLY [02G16]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

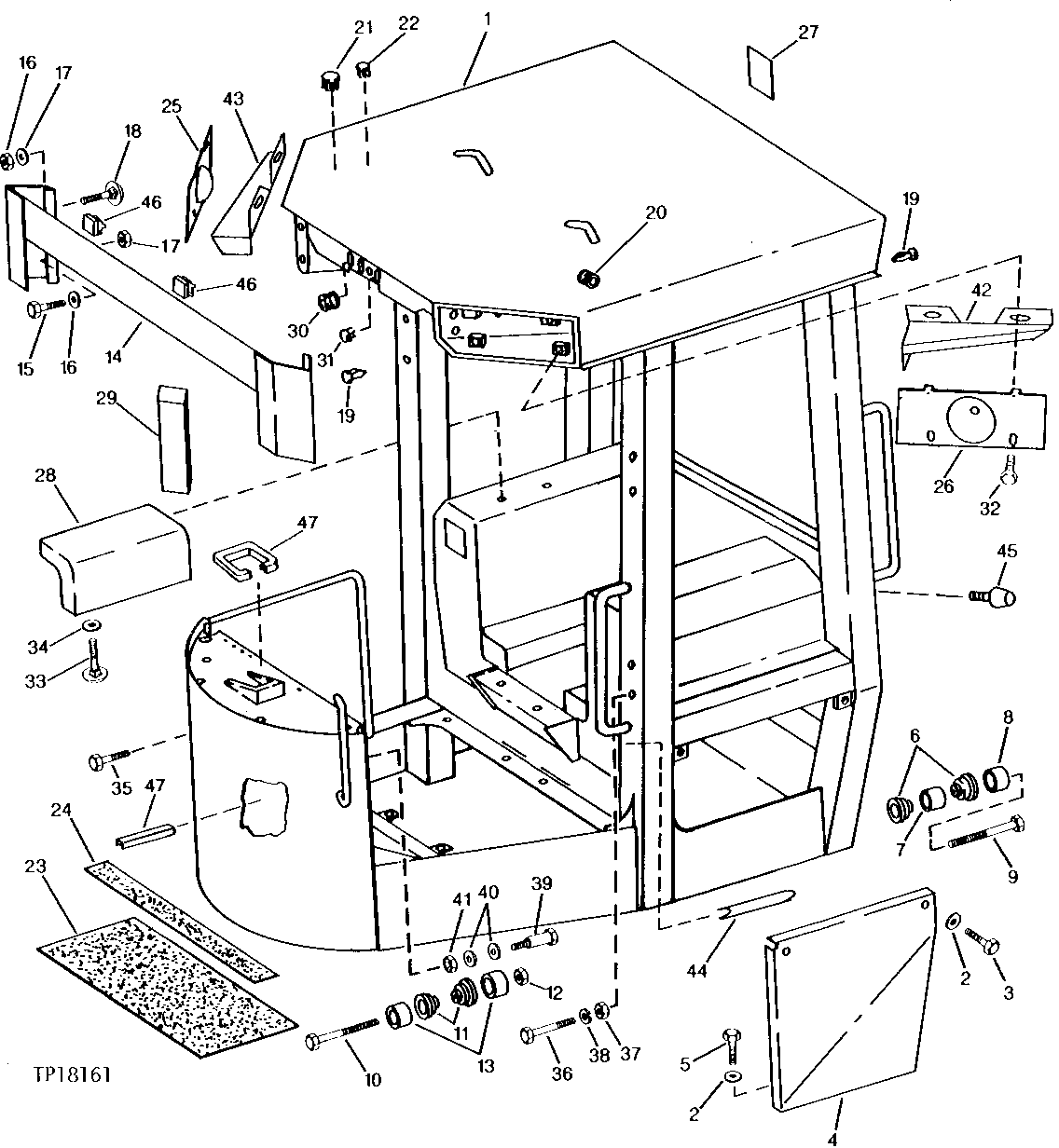

CANOPY FRAME ASSEMBLY [02G16]

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT103528	1	ROPS	CANOPY, (SUB FOR AT83118)
1	AT103526	1	ROPS	CAB, (SUB FOR AT83086)
2	24H1308	8	Washer	13/32" X 1" X 0.134"
3	19H2633	2	Cap Screw	3/8" X 1-1/2", LEFT ACCESS PANEL, TOP
3	19H2633	2	Cap Screw	3/8" X 1-1/2", RIGHT ACCESS PANEL, TOP
4	AT62683	1	PANEL	LEFT ACCESS (ILLUSTRATED)
4	AT62684	1	PANEL	RIGHT ACCESS PANEL
5	19H2676	2	Cap Screw	3/8" X 1", LEFT ACCESS PANEL, BOTTOM
5	19H2676	2	Cap Screw	3/8" X 1", RIGHT ACCESS PANEL, BOTTOM
6	AT61761	4	ISOLATOR	REAR
7	T65151	2	SPACER	REAR
8	T65150	2	BUSHING	-
9	08H4428	2	CAP SCREW	1" X 7-1/2"
10	08H4059	2	BOLT	1" X 8-1/2"
11	AT61762	4	ISOLATOR	FRONT
12	K40018	2	Lock Nut	-
13	T65149	4	SPACER	-
14	AT73805	1	COVER	-
15	19H1648	2	Cap Screw	3/8" X 3/4"
16	24H1305	2	Washer	13/32" X 13/16" X 0.065"
17	14H812	4	NUT	3/8"
18	03H1500	2	Bolt	3/8" X 1"
19	T71910	7	PLUG	-
20	R27180	1	Grommet	-
21	R32239	2	Plug	-
22	R44720	1	Plug	-
23	H21259	2	Mat	FLOOR ACCESS
24	H33629	4	Mat	FLOOR PLATE
25	AT171016	1	PANEL	RIGHT, (SUB FOR T63938)
26	AT171017	1	PANEL	LEFT, (SUB FOR T63939)
27	T101529	1	LABEL	-
28	AT104453	2	ARMREST	(SUB FOR AT80617) (ALSO ORDER T122696)
28	T122696	2	COVER	(ASSEMBLE BETWEEN THE ARMREST AND THE ARMREST SUPPORT BRACKET)
29	T65750	2	ISOLATOR	-
30	R27180	1	Grommet	(SUB FOR T65643, THIS APPLICATION)
31	R44720	1	Plug	-
32	19H1227	8	Cap Screw	1/4" X 1/2", LIGHT PANEL
33	19H2038	4	Cap Screw	3/8" X 1/2", ARMREST
34	24H1305	4	Washer	13/32" X 13/16" X 0.065"
35	19H3239	2	Cap Screw	3/8" X 1-1/4"
36	03H1765	1	Bolt	3/8" X 3/4"
37	14H732	1	Nut	3/8"
38	24H1305	1	Washer	13/32" X 13/16" X 0.065"
39	T66280	1	SCREW	-
40	24H1219	2	Washer	7/16" X 1" X 0.083"
41	K40006	1	Lock Nut	-
42	AT102274	1	DEFLECTOR	(WITH CAB)
43	AT102273	1	DEFLECTOR	(WITH CAB)
44	-	1	Part 49	(MAKE FROM T59937 BULK MATERIAL, CUT TO LENGTH)
45	T58920	2	Bumper	-
46	T59951	2	CLIP	-
47	-	1	Part 52	(MAKE FROM T58056 BULK MATERIAL, CUT TO LENGTH)
