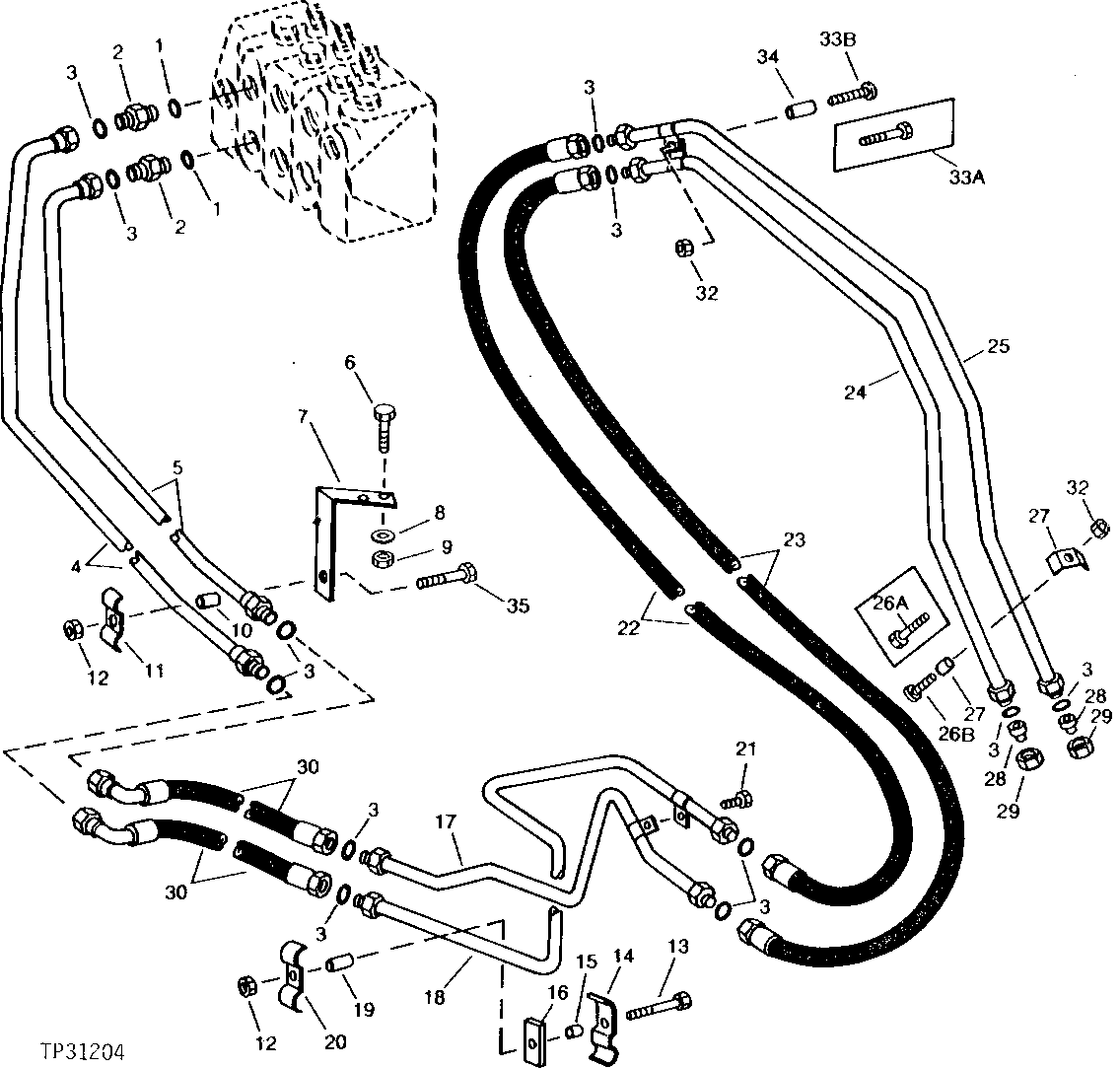

AUXILIARY CONTROL VALVE HYDRAULICS [03C17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R29936	2	O-Ring	-
2	38H1194	2	Adapter Fitting	-
3	T77858	12	O-Ring	-
4	AT82187	1	OIL LINE	-
5	AT82188	1	OIL LINE	-
6	19H1765	2	Cap Screw	3/8" X 1-3/4"
7	AT61324	1	BRACKET	-
8	12H304	2	Lock Washer	3/8"
9	14H1076	2	Nut	3/8"
10	28H3381	1	Spacer	0.493" X 0.675" X 5/8"
11	T31056	1	Clamp	-
12	T54568	2	Lock Nut	-
13	19H2458	1	Cap Screw	3/8" X 3"
14	T101733	1	CLAMP	(SUB FOR T40739 AND T27602, THIS APPLICATION)
15	28H1697	1	Spacer	0.493" X 0.675" X 3/4"
16	T40740	1	STRAP	-
17	AT81490	1	LINE	-
18	AT81489	1	LINE	-
19	28H1697	1	Spacer	0.493" X 0.675" X 3/4"
20	T40705	1	Clamp	(SUB FOR T40741, THIS APPLICATION)
21	19H2676	1	Cap Screw	3/8" X 1"
22	AT81485	1	HYDRAULIC HOSE - FABRICATE	1-3/16" X 1 168 MM (46") X 1-3/16"
23	AT81486	1	HYDRAULIC HOSE	1-3/16" X 1 320 MM (52") X 1-3/16"
24	AT81487	1	LINE	(SUB AT85062 AND (2) 24H1308)
24	AT85062	1	OIL LINE	-
25	AT81488	1	OIL LINE	(SUB AT85063 AND (2) 24H1308)
25	AT85063	1	OIL LINE	-
27	T82799	2	CLAMP	-
27	T27022	2	Clamp	-
28	38H1418	2	Fitting	(SUB FOR 38H1142)
29	38H1356	2	Tube Nut	-
30	AT80033	2	HYDRAULIC HOSE - FABRICATE	1-3/16" X 902 MM (35-1/2") X 1-3/16"
31	28H1628	2	SPACER	0.622" X 0.840" X 3/4"
32	14H1040	3	Nut	1/2"
34	28H1973	1	Bushing	0.824" X 1.050" X 1-3/4"
35	19H1765	1	Cap Screw	3/8" X 1-3/4"
26A	19H2284	2	Cap Screw	3/8" X 7/8"
26B	AT85059	2	WELD STUD	-
33A	19H2676	1	Cap Screw	3/8" X 1"
33B	AT85060	1	WELD STUD	-
