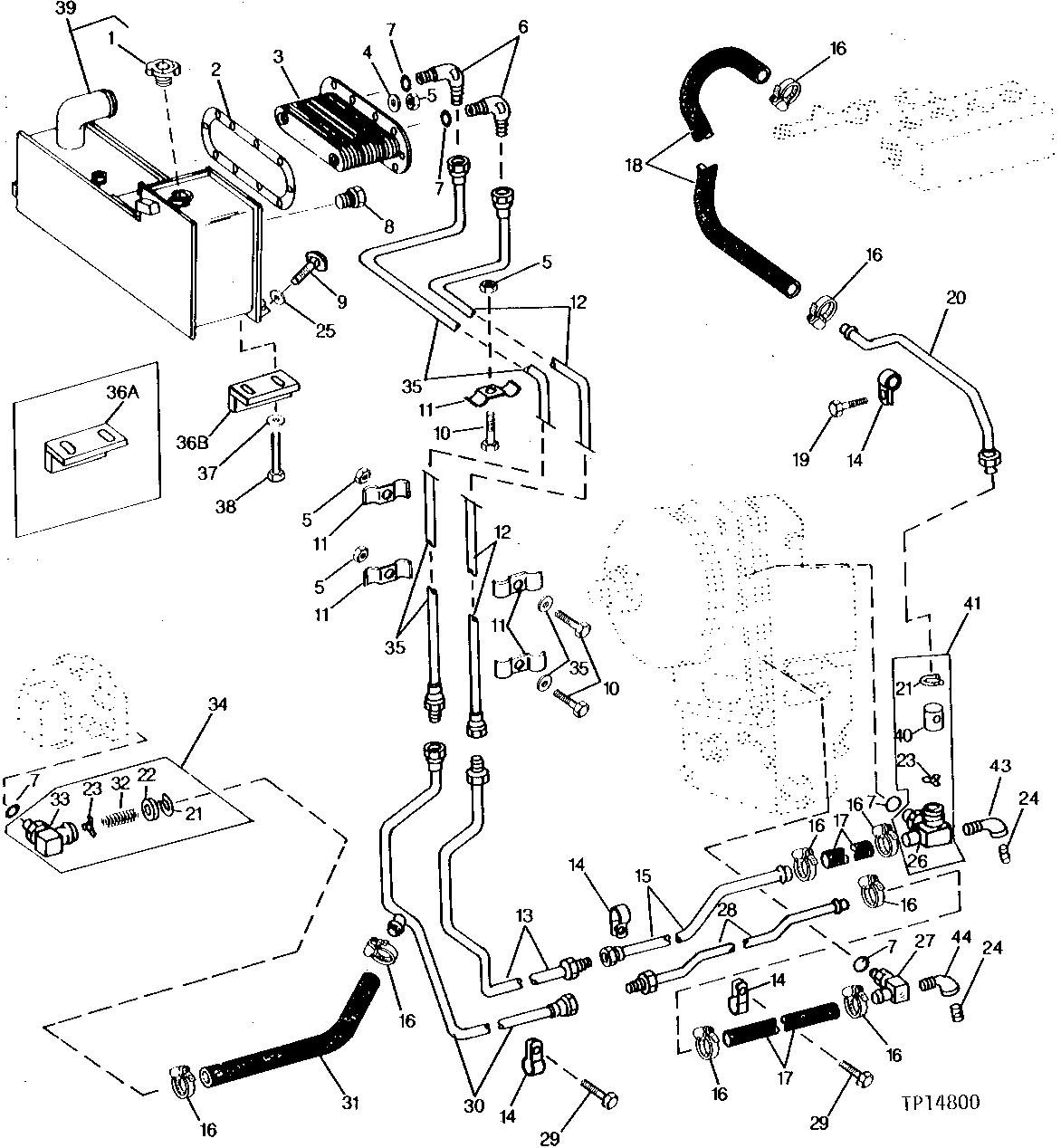

TRANSMISSION, SURGE AND OIL COOLER LINES [01E08]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AN110020	1	CAP	-
2	T79292	1	GASKET	(SUB FOR T41140)
3	AT39941	1	OIL COOLER	-
4	24H1685	10	Washer	11/32" X 47/64" X 0.083"
5	14H785	13	Nut	5/16"
6	T41144	2	Elbow Fitting	-
7	U12547	5	O-Ring	(SUB FOR (5) F3171R)
8	AT47622	1	SIGHT PLUG	-
9	19H2993	4	Cap Screw	1/2" X 1-1/2"
10	19H3130	3	Cap Screw	5/16" X 1-3/4"
11	F2953R	5	Half Clamp	-
12	AT61591	1	OIL LINE	INLET
13	AT61590	1	OIL LINE	-
14	T24959	4	Clamp	-
15	AT61589	1	OIL LINE	-
16	AT79195	8	Clamp	(SUB FOR AR21839, THIS APPLICATION)
17	-	2	Part 17	356 MM LONG (3/4" X 14") (MAKE FROM T78497)
18	-	1	Part 18	483 MM LONG (3/4" X 19") (MAKE FROM T78497)
19	19H2021	1	Cap Screw	3/8" X 5/8"
20	AT61556	1	LINE	-
21	40M7129	2	Snap Ring	(SUB FOR T64780)
22	T66740	1	WASHER	-
23	T71384	2	FLOW CONTROL HYD. VALVE	-
24	15H638	2	Pipe Plug	1/8"
25	24H1111	4	Washer	17/32" X 1-1/16" X 0.090"
26	AT61554	1	TEE FITTING	-
27	AT25032	1	HOSE FITTING	-
28	AT78528	1	OIL LINE	(SUB FOR AT61594)
29	19H1648	3	Cap Screw	3/8" X 3/4"
30	AT61593	1	OIL LINE	-
31	-	1	Part 31	390 MM LONG (3/4" X 15-1/4") (MAKE FROM T78497) (SUB FOR T64851)
32	T66742	1	COMPRESSION SPRING	-
33	-	1	Part 33	(SUB AT68062)
34	AT68062	1	ELBOW FITTING	90°, WITH CHECK VALVE
35	AT61592	1	OIL LINE	OUTLET
37	24H1625	2	Washer	17/32" X 1" X 0.120"
38	19H3385	2	Cap Screw	1/2" X 1-1/8"
39	AT61595	1	TANK	SURGE AND OIL, (SUB AT71319, AT70029, (2) 19H3385 AND (2) 24H1625)
39	AT71319	1	TANK	SURGE AND OIL COOLER
40	T76087	1	SLEEVE	-
41	AT74242	1	TEE FITTING	-
42	24H1136	2	Washer	11/32" X 11/16" X 0.065"
43	T56112	2	Elbow Fitting	-
36A	AT70029	1	BRACKET	(USED WHEN AT71319 HAS REPLACED AT61595)
36B	AT70028	1	BRACKET	-
