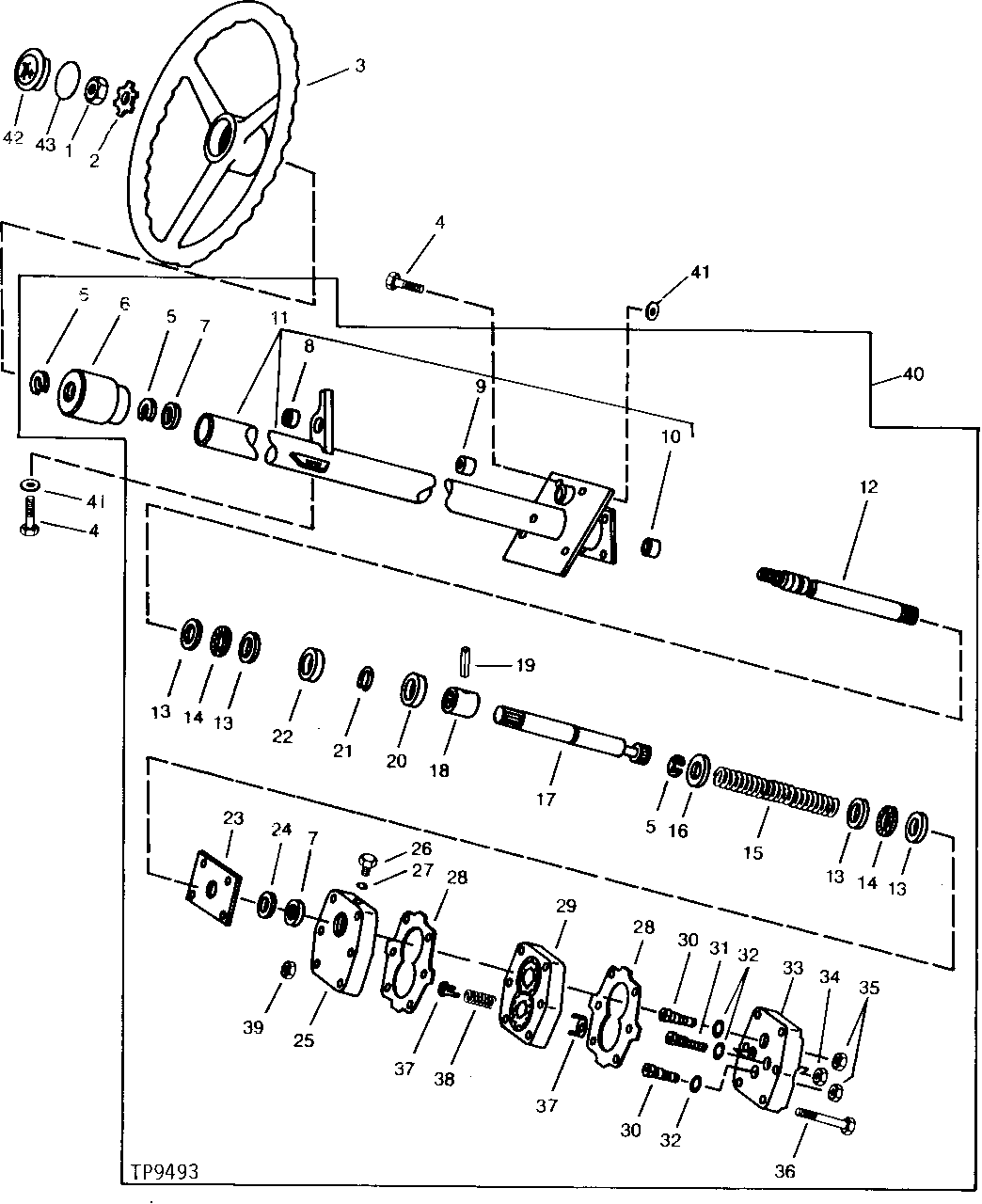

STEERING COLUMN AND METERING PUMP [02B13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H904	1	Nut	3/4"
2	R71650	1	LOCK WASHER	(SUB FOR T17148, THIS APPLICATION)
3	AR78405	1	Steering Wheel	(SUB FOR T22875)
4	19H1648	6	Cap Screw	3/8" X 3/4"
5	P46402	3	Snap Ring	-
6	R51080	1	SLEEVE	-
7	R32730	2	SEAL	-
8	M224T	1	BUSHING	-
9	R67953	1	BUSHING	-
10	R50875	1	Bushing	-
11	AR88478	1	TUBE	WITH BUSHINGS
12	R73499	1	SHAFT	UPPER
13	R62278	4	Thrust Washer	-
14	JD8875	2	Needle Bearing	-
15	R60174	1	SPRING	-
16	R42629	1	WASHER	-
17	R73500	1	SHAFT	LOWER
18	R27319	1	SPLINED COUPLING	-
19	34H282	1	Spring Pin	3/16" X 1"
20	R55498	1	Bushing	-
21	A2444R	1	SNAP RING	-
22	R54616	1	BUSHING	-
23	R56645	1	Plate	-
24	R72820	2	Shim	-
25	AR99334	1	Base	(SUB FOR R54769, THIS APPLICATION)
26	R27216	1	DRAIN PLUG	-
27	R26287	1	O-Ring	-
28	R55243	2	Shim	0.013 MM (.0005")
29	AR99331	1	Housing	WITH GLASS, (SUB FOR AR63235, THIS APPLICATION)
30	R65685	2	FITTING	-
31	R54763	2	Fitting	-
32	R28776	4	O-Ring	-
33	AR99335	1	Cover	(SUB FOR R54771, THIS APPLICATION)
34	R26572	2	Nut	-
35	R27296	2	Nut	-
36	19H1912	6	Cap Screw	3/8" X 3-1/2"
37	R56347	2	Plate	-
38	R56346	1	SPRING	-
39	14H812	6	NUT	3/8"
40	AR92493	1	STEERING METERING PUMP	-
41	24H1305	6	Washer	13/32" X 13/16" X 0.065"
42	AL115227	1	INDICATOR	(SUB FOR AL118173 OR R47998)
43	B3690R	1	O-Ring	-

STEERING COLUMN AND METERING PUMP [02B13]
