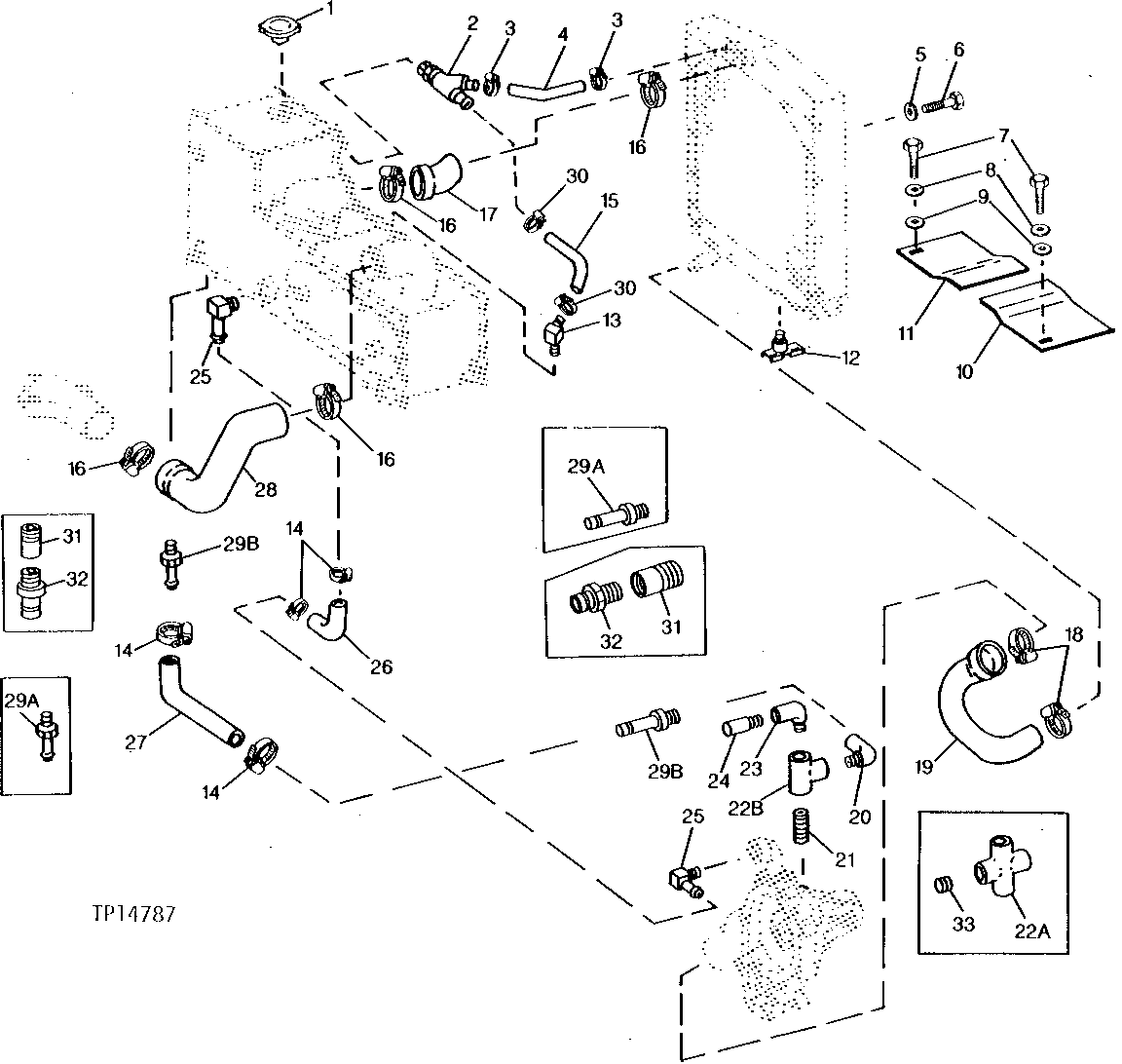

RADIATOR, SURGE TANK AND OIL COOLER HOSES [01I21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AN110020	1	CAP	SURGE TANK
2	AT62756	1	FITTING	-
3	TY22464	2	Clamp	(SUB FOR AR21836)
4	-	1	Part 4	140.25 MM (3/8" X 5.5") (MAKE FROM TY22325 BULK MATERIAL, CUT TO LENGTH)
5	24H1309	8	Washer	13/32" X 1-1/16" X 0.120"
6	19H1648	8	Cap Screw	3/8" X 3/4"
7	19H2676	2	Cap Screw	3/8" X 1"
8	12H304	2	Lock Washer	3/8"
9	24M7296	2	Washer	10.500 X 30 X 2.500 MM
10	-	1	Part 10	LEFT ( T40792 USE IF AVAILABLE)
11	-	1	Part 11	RIGHT ( T40791 USE IF AVAILABLE)
12	AT13740	1	Drain Valve	-
13	H63773	1	Fitting	-
14	AR21999	6	Hose Clamp	(SUB FOR AR21840)
15	T66325	1	HOSE	-
16	AR21999	4	Hose Clamp	-
17	T66326	1	HOSE	UPPER, (SUB T75473)
17	T75473	1	Radiator Hose	-
18	AR62936	2	Clamp	-
19	T66324	1	RADIATOR HOSE	LOWER
20	15H492	1	ELBOW FITTING	90°, 3/4" X 1/2"
21	-	1	Part 22	1/2" X 1-3/4" ( 29H199 NO LONGER AVAILABLE)
23	15H602	1	Elbow Fitting	90°, 1/2"
24	15H586	1	Adapter Fitting	1/2" X 3/8"
25	T39795	2	Hose Fitting	90°
26	R49474	1	Hose	-
27	N155121	1	HOSE	-
28	T66328	1	HOSE	COOLANT, (SUB T75474)
28	T75474	1	RADIATOR HOSE	-
30	AT79195	2	Clamp	(SUB FOR AR21839, THIS APPLICATION)
31	15H589	2	Pipe Bushing	1/2"
32	T58388	2	FITTING	(SUB T81198)
33	15H584	1	Pipe Plug	PIPE, 1/2" (NO LONGER REQUIRED)
22A	15H656	1	FITTING	CROSS, 1/2"
22B	15H587	1	Tee Fitting	TEE, 1/2"
29A	AU13930	2	HOSE FITTING	HOSE, (SUB T81198)
29B	T81198	2	THREADED NIPPLE	HOSE

RADIATOR, SURGE TANK AND OIL COOLER HOSES [01I21]
