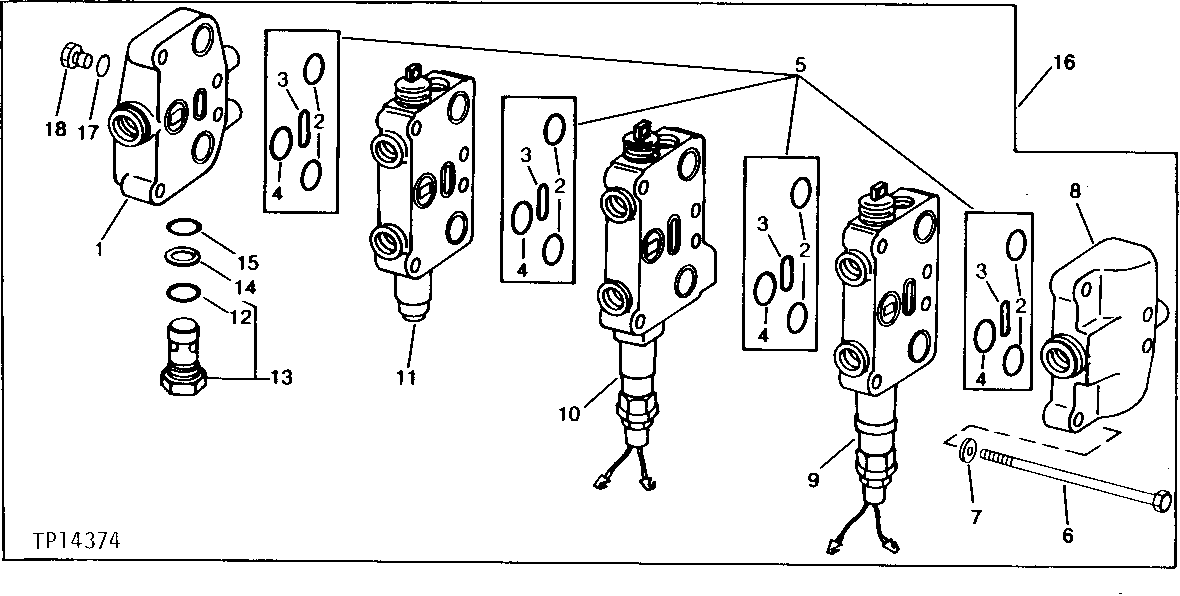

LOADER CONTROL VALVE ASSEMBLY (TWO OR THREE-SPOOL) [03D03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T81690	1	PLATE	-
1	T50267	1	PLATE	PORT, (SUB T81690, AH63282 AND R28782)
2	-	8	Part 3	(K) (SUB FOR T31029, THIS APPLICATION) ( T81688 USE IF AVAILABLE)
3	-	4	Part 4	(K) (SUB FOR T38652, THIS APPLICATION) ( T81687 USE IF AVAILABLE)
4	-	4	Part 5	(K) (SUB FOR U44062, THIS APPLICATION) ( T81689 USE IF AVAILABLE)
5	AT83266	1	KIT	(K) BETWEEN SECTION SEAL (TWO AND THREE-SPOOL) (SUB FOR AT41736 AND AT41738, THIS APPLICATION)
6	T31049	4	CAP SCREW	(THREE-SPOOL VALVE)
6	T31046	4	BOLT	(TWO-SPOOL VALVE)
7	12H293	4	Lock Washer	7/16"
8	T50268	1	PLATE	PORT OUTLET
9	AT61905	1	VALVE	BUCKET SECTION, (SUB AT82262)
9	AT82262	1	SPOOL VALVE	BUCKET SECTION
10	AT61902	1	CONTROL VALVE	BOOM SECTION, (SUB AT80016)
10	AT80016	1	SPOOL VALVE	BOOM SECTION
11	AT30016	1	SPOOL VALVE	AUXILIARY SECTION (THREE-SPOOL)
12	P51079	1	O-Ring	-
13	AT104058	1	PRESSURE RELIEF VALVE	18 270 KPA (183 BAR) (2 650 PSI) (SUB FOR AT63033)
14	T42800	1	BACK-UP RING	-
15	H21957	1	O-Ring	-
16	AT61906	1	CONTROL VALVE	(THREE-SPOOL) (SUB AT80019)
16	AT80019	1	CONTROL VALVE	(THREE-SPOOL)
16	AT61901	1	CONTROL VALVE	(TWO-SPOOL) (SUB AT80015)
16	AT80015	1	CONTROL VALVE	(TWO-SPOOL)
17	R28782	1	O-Ring	-
18	AH63282	1	FITTING PLUG	-
