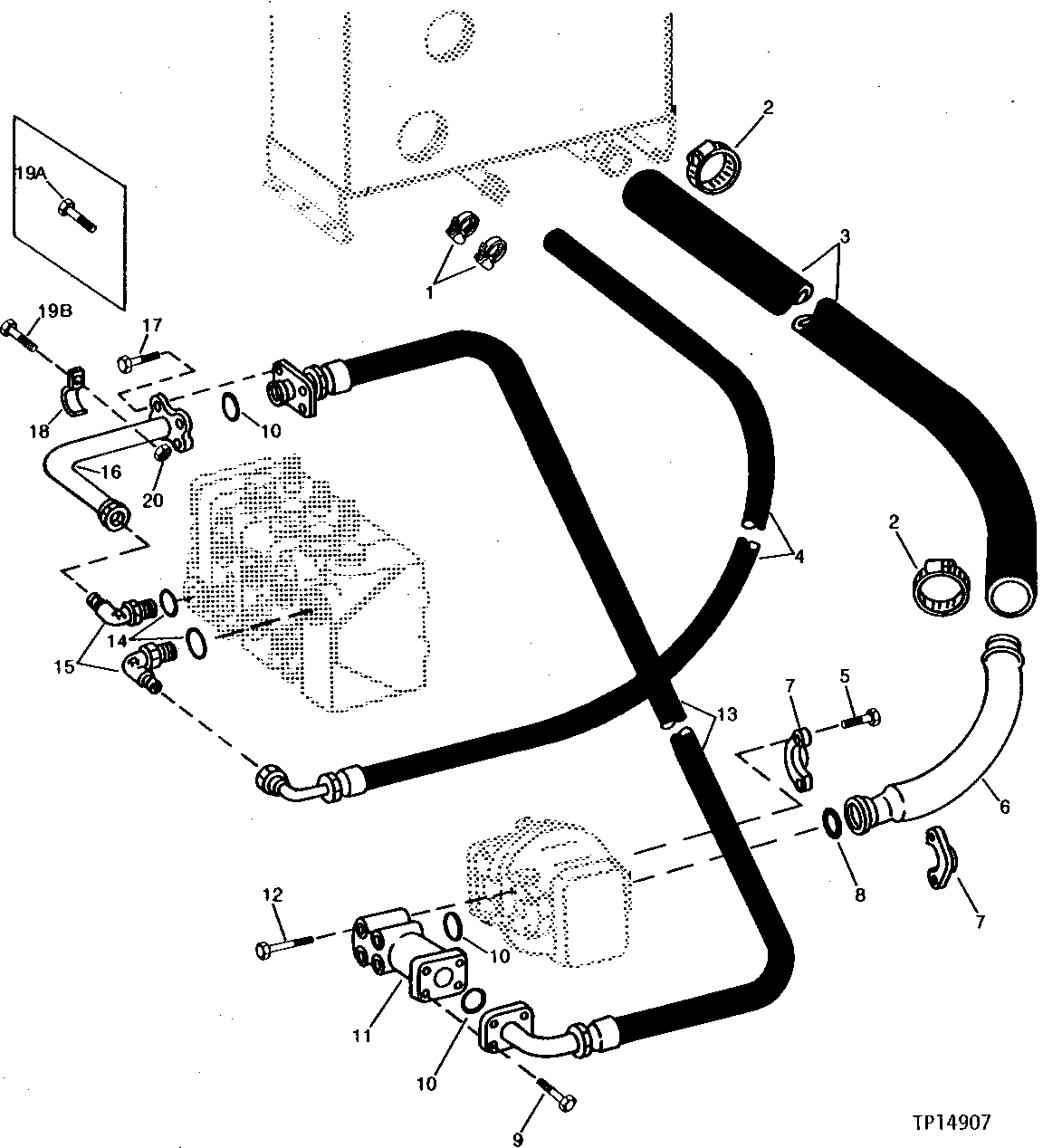

LOADER CONTROL VALVE AND PUMP HYDRAULICS [03C14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR21999	2	Hose Clamp	(SUB FOR AR21840)
2	AT37478	4	Hose Clamp	(SUB FOR AR21999, THIS APPLICATION)
2	AT39141	2	Hose Clamp	(SUB FOR AT37478 AND AT37450, THIS APPLICATION)
3	T64526	1	HOSE	-
3	T80021	1	HYDRAULIC HOSE	(SUB FOR T76037)
4	AT61315	1	HYDRAULIC HOSE	-
5	19H2898	4	Cap Screw	1/2" X 1-1/4"
6	AT32676	1	TUBE	-
6	AT74189	1	TUBE	-
7	X51H-32	2	Flange Fitting	(SUB FOR R37023) HALF SPLIT
8	F1870R	1	O-Ring	-
9	19H3104	4	Cap Screw	7/16" X 1-1/4"
10	U10289	3	O-Ring	-
11	T64527	1	ELBOW FITTING	-
12	19H2227	4	CAP SCREW	7/16" X 2-1/2"
13	AT61314	1	HYDRAULIC HOSE - FABRICATE	1-1/4" X 1 334 MM (52-1/2") X 1-1/4"
14	U13639	2	O-Ring	-
15	X20C5OX-S	2	Elbow Fitting	(SUB FOR AT35600) 90°
16	AT61316	1	TUBE	(USE WITH TWO-SPOOL VALVE)
16	AT61325	1	LINE	(USE WITH THREE-SPOOL VALVE)
17	19H3205	4	Cap Screw	7/16" X 1-1/2"
18	T35829	1	Clamp	-
20	14H1076	1	Nut	3/8"
19A	19H1648	1	Cap Screw	3/8" X 3/4"
19B	19H2676	1	Cap Screw	3/8" X 1"

LOADER CONTROL VALVE AND PUMP HYDRAULICS [03C14]
