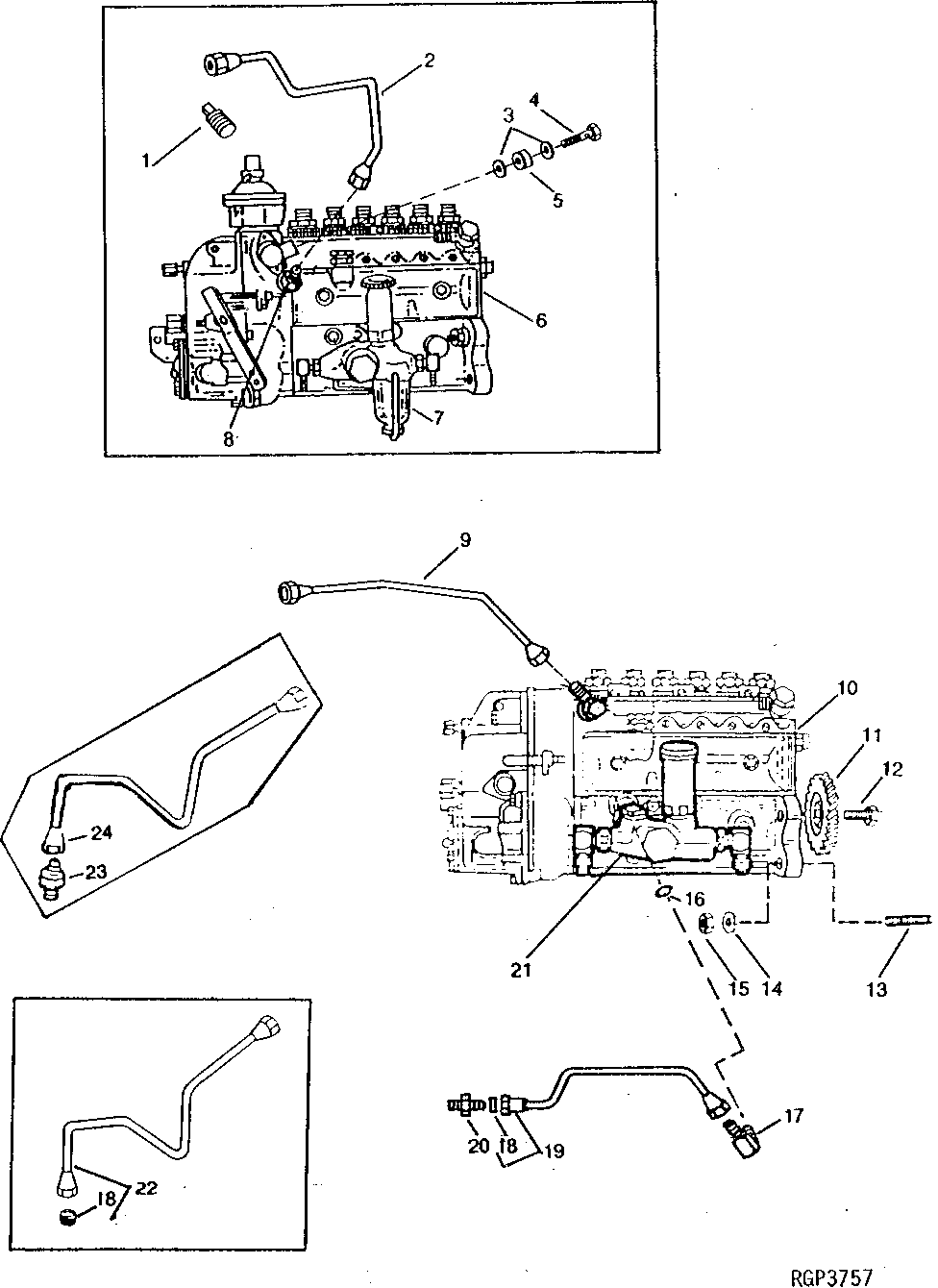

FUEL INJECTION PUMP AND LUBE LINES (ENGINE SERIAL NO. 110330- ) [01G22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R104592	1	Pipe Plug	(USE WITH AR94247)
2	AR95853	1	FUEL LINE	(USE WITH AR94247) (SUB RE41171, R83490, R53899 AND R51133, APPL)
3	R62107	2	Washer	(USE WITH AR94247)
4	R62106	1	Screw	(USE WITH AR94247)
5	U10974	1	BUSHING	(USE WITH AR94247)
6	AR94247	1	FUEL INJECTION PUMP	(A) (SUB AR98069 AND AR94234)
7	RE27848	1	FUEL PUMP	(SUB FOR AR89956) (SUB RE20042 AND (2) AR104674)
8	U45538	1	ELBOW FITTING	(USE WITH AR94247 AND AR94234)
9	AR94234	1	FUEL LINE	(USE WITH AR98069) (SUB RE41171, R83490, R53899 AND R51133, APPL)
10	AR98069	1	FUEL INJECTION PUMP	(A) (SUB RE29895) (NLA)
11	R68274	1	GEAR	(SUB FOR AR88905, APPL)
12	R63845	3	Washer	-
12	19H3336	3	Screw	3/8" X 7/8"
12	AR59115	3	SELF-LOCKING SCREW	9.525 X 22.098 MM (3/8" X 0.870") (SUB 19H3336 AND R63845)
13	R114130	4	Stud	(SUB FOR R55396, APPL)
14	M72490	4	Washer	(SUB FOR R42729)
15	14H1090	4	Nut	3/8", (SUB FOR R32511 OR E55662, APPL)
16	R79060	1	O-Ring	(SUB FOR R26287)
17	AR26746	1	Elbow Fitting	-
18	R67264	1	Packing	(USE WITH RE38732 OR RE49899)
19	RE49899	1	Oil Line	-
20	R76822	1	Fitting	(USE WITH RE38732 OR RE49899)
21	RE20042	1	Fuel Pump	(ALSO ORDER (2) AR104674)
22	RE38732	1	Oil Line	(SUB FOR RE33486)
23	R39832	1	Adapter Fitting	(USE WITH AR91012)
24	AR91012	1	LINE	(SUB RE38732 AND R76822)
..	RE29895	1	KIT	(SUB FOR AR98069) (NLA)

FUEL INJECTION PUMP AND LUBE LINES (ENGINE SERIAL NO. 110330- ) [01G22]
