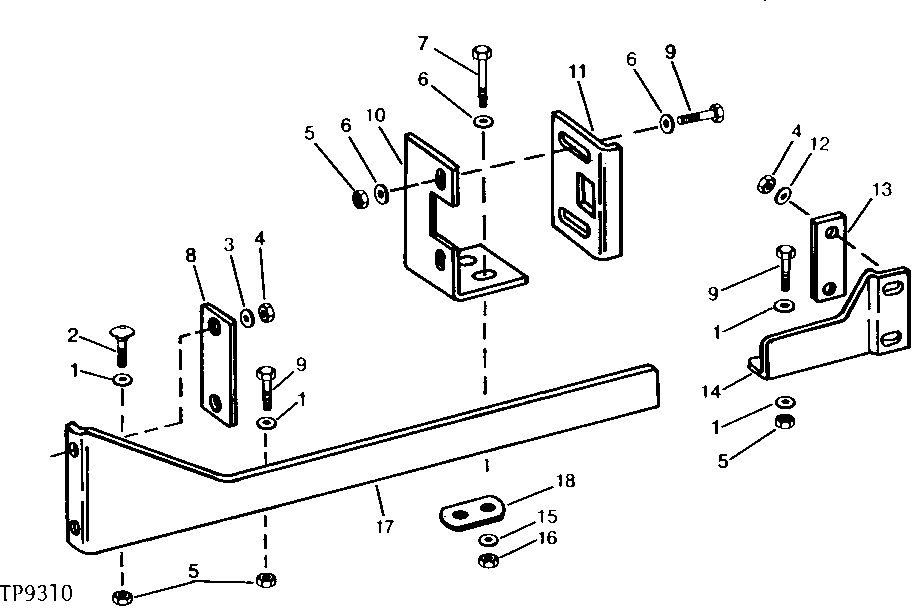

ENGINE SIDE SHIELD EXTENSIONS AND STRIKERS [02J12]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	24H1304	10	WASHER	13/32" X 23/32" X 0.120"
1	24H1304	8	WASHER	13/32" X 23/32" X 0.120"
1	24H1304	12	WASHER	13/32" X 23/32" X 0.120"
2	19H3217	2	Cap Screw	3/8" X 1-3/4"
2	03H1500	2	Bolt	3/8" X 1"
3	24H1292	3	Washer	11/32" X 3/4" X 0.120"
3	24H1822	1	Washer	11/32" X 7/8" X 1/16"
4	14H785	8	Nut	5/16"
5	14H812	10	NUT	3/8"
5	14H812	9	NUT	3/8"
6	24H1308	12	Washer	13/32" X 1" X 0.134"
6	24H1308	10	Washer	13/32" X 1" X 0.134"
7	19H2633	4	Cap Screw	3/8" X 1-1/2"
7	19H3217	2	Cap Screw	3/8" X 1-3/4", (WITH RIGHT LOCK STRIKER MOUNT)
8	T71695	2	STRAP	-
9	19H3239	8	Cap Screw	3/8" X 1-1/4"
9	19H3239	7	Cap Screw	3/8" X 1-1/4"
10	T71696	1	BRACKET	LEFT
10	AT68721	1	SUPPORT	RIGHT (NOT ILLUSTRATED)
11	T71697	2	ANGLE	-
12	24H1122	4	Washer	3/8" X 7/8" X 0.083"
13	T71694	2	STRAP	-
14	T71701	1	EXTENSION	LEFT REAR
14	T71700	1	EXTENSION	RIGHT REAR (NOT ILLUSTRATED)
15	24H1308	2	Washer	13/32" X 1" X 0.134", (RIGHT SIDE ONLY)
16	14H812	2	NUT	3/8", (RIGHT-HAND SIDE ONLY)
17	T71698	1	EXTENSION	LEFT FRONT
17	T71699	1	EXTENSION	RIGHT FRONT (NOT ILLUSTRATED)
18	T77280	1	STRAP	(WITH RIGHT LOCK STRIKER MOUNT)

ENGINE SIDE SHIELD EXTENSIONS AND STRIKERS [02J12]
