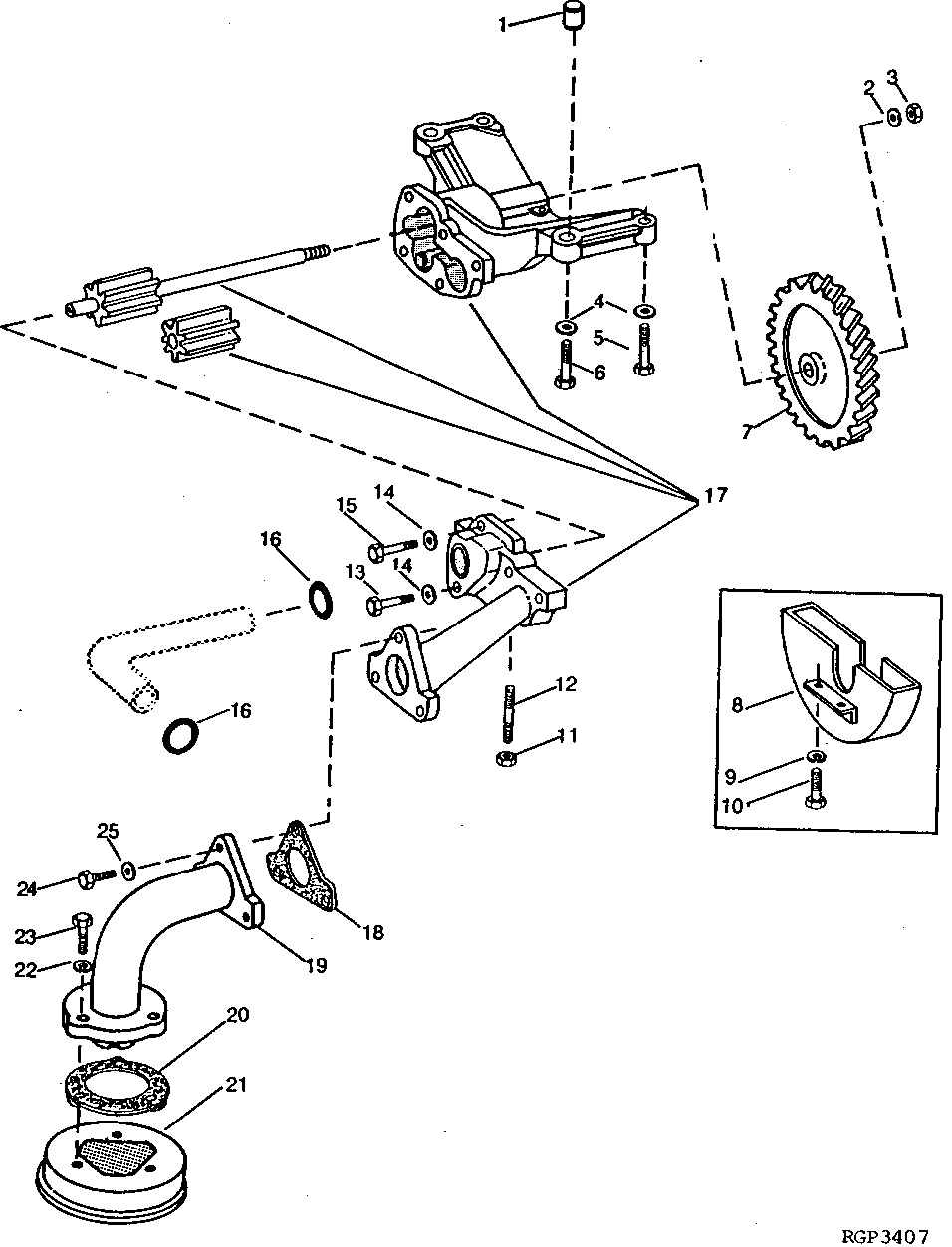

ENGINE OIL PUMP (EARLY DESIGN CRANKSHAFT DRIVEN) (6466AT-02) [01F21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R62930	2	Bushing	-
2	T21242	1	Washer	-
3	14H826	1	Nut	(SUB FOR R79187, THIS APPLICATION)
4	R57696	4	Washer	-
5	19H3219	2	Cap Screw	3/8" X 1-3/8"
6	19H2549	2	Cap Screw	3/8" X 1-7/8"
7	R62938	1	Gear	-
8	-	1	Part 8	( AR77713 NO LONGER REQUIRED)
9	-	2	Part 9	(NO LONGER REQUIRED THIS LOCATION)
10	-	2	Part 10	(NO LONGER REQUIRED THIS LOCATION)
11	14H785	1	Nut	5/16"
12	22H1040	1	Set Screw	5/16" X 1-1/4"
13	19H2733	2	Cap Screw	3/8" X 2-3/8"
14	M72490	5	Washer	(SUB FOR R70234 OR R42729)
15	19H1765	3	Cap Screw	3/8" X 1-3/4"
16	R71732	2	O-Ring	-
17	AR99344	1	OIL PUMP	(A) (WITH COVER MARKED R74215) (SUB FOR AR96193) (SUB RE60622 AND RE42809, APPL)
17	RE60622	1	Oil Pump	(ALSO ORDER RE42809) (SUB RE507076)
18	R71312	1	GASKET	-
19	R71313	1	ELBOW FITTING	(SUB R74216) (USE WITH AR99344)
19	R74216	1	ELBOW FITTING	(USE WITH AR99344)
20	R52049	1	GASKET	-
21	AR56639	1	OIL PUMP INTAKE	-
22	12H303	3	Lock Washer	5/16"
23	19H1905	3	Cap Screw	5/16" X 1"
24	19H1732	3	Cap Screw	3/8" X 1-1/4"
25	M72490	3	Washer	(SUB FOR R70234 OR R42729)

ENGINE OIL PUMP (EARLY DESIGN CRANKSHAFT DRIVEN) (6466AT-02) [01F21]
