Открытый узел

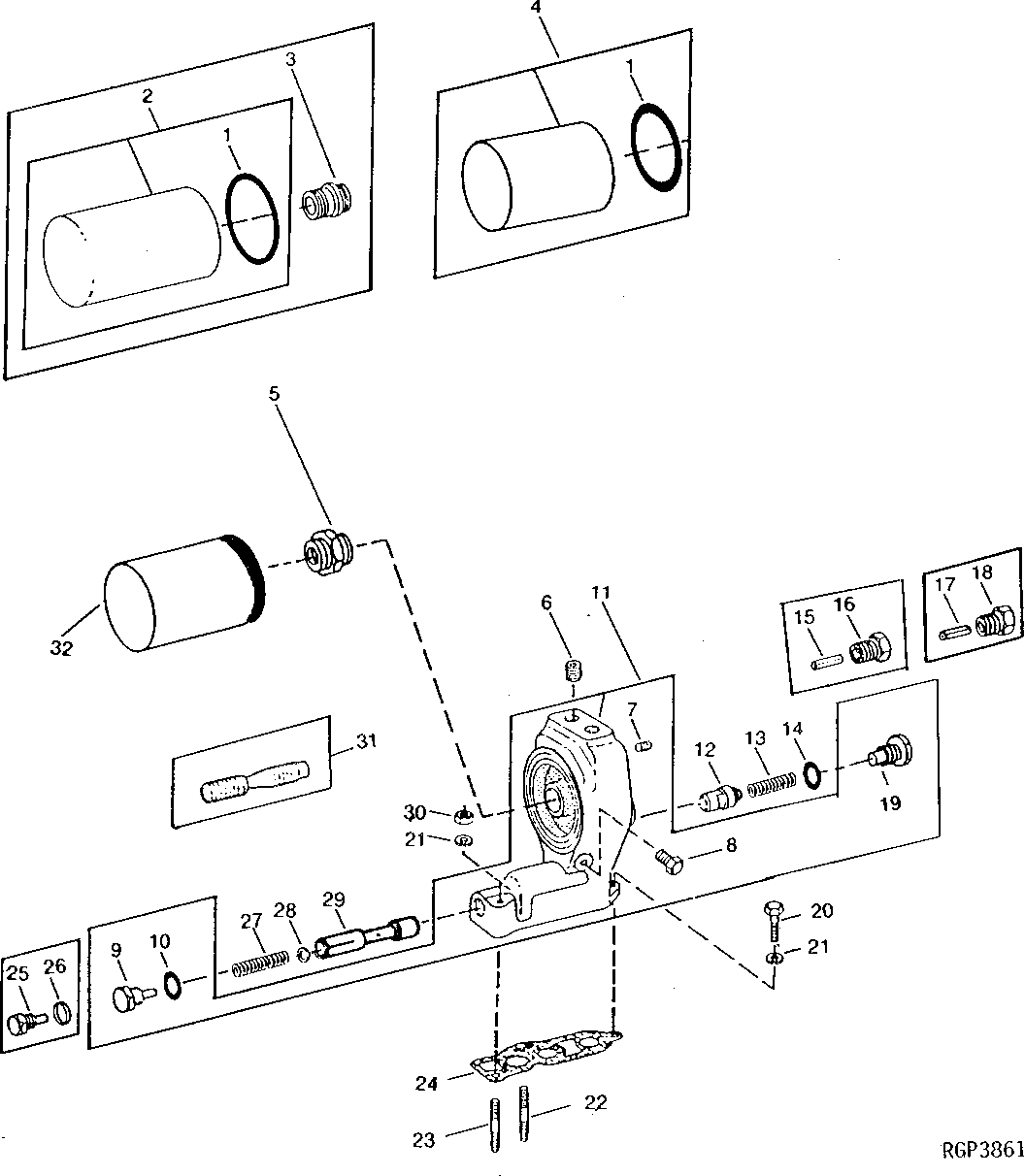

ENGINE OIL FILTER AND HOUSING (6466) [01G04]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R43660	1	Packing	(USE WITH AR43261, AR98329 OR RE57394)
2	AR43634	1	OIL FILTER	(MARKED AR43261 OR AR43634) (USE WITH R43429)
3	R43429	1	FITTING	(1-1/2 - 16UN) (USE WITH AR43261 OR AR43634)
4	AR101278	1	OIL FILTER	(MARKED AR98329) (SUB RE57394) (USE WITH R73913 OR R104621)
5	R104621	1	Adapter Fitting	(1-1/2 - 12 UNF) (USE WITH AR98329, RE46380 OR RE57394) (SUB FOR R73913)
6	15H690	2	Pipe Plug	3/4"
7	R104592	1	Pipe Plug	-
8	R55233	1	Pipe Plug	-
9	AR105510	1	DRAIN PLUG	-
10	U17409	1	O-Ring	-
11	AR76582	1	HOUSING	(MARKED R62110 OR R67409) (SUB RE24706) (ALSO ORDER R84947)
11	RE24706	1	HOUSING	(MARKED R84946)
11	AR94084	1	HOUSING	(MARKED R71484) (SUB RE24706) (ALSO ORDER R84947)
11	AR89499	1	HOUSING	(MARKED R67409) (SUB RE24706) (ALSO ORDER R84947)
12	R49464	1	VALVE	-
13	R26151	1	SPRING	-
14	U17409	1	O-Ring	(USE WITH R71483)
15	34H313	1	Spring Pin	1/4" X 1-1/8", (USE WITH R49465)
16	R49465	1	DRAIN PLUG	(SUB FOR R71483) (USE WITH 34H313)
17	34H393	1	PIN FASTENER	7/16" X 1-1/8", (USE WITH R71483)
18	R71483	1	DRAIN PLUG	(SUB R49465) (ALSO ORDER 34H313)
19	R86875	1	Fitting Plug	-
20	19H3483	1	Cap Screw	3/8" X 1-1/8"
21	12H304	2	Lock Washer	3/8", (NO LONGER REQUIRED)
22	R106859	1	Stud	(SUB FOR F3646R OR R26622, APPL)
23	R55395	1	STUD	-
24	R43774	1	GASKET	-
25	RE10834	1	DRAIN PLUG	(SUB FOR R43425)
26	R43424	1	WASHER	-
27	R43548	1	Spring	-
28	U40750	1	Washer	-
29	R84947	1	Valve	(USE WITH R84946)
30	E55662	2	Flange Nut	-
31	R77003	1	VALVE	(SUB FOR R43428) (USE WITH R62110, R67409 OR R71484)
32	RE46380	1	Oil Filter	(MARKED RE46380) (SUB FOR AR101278) (SUB RE57394) (USE WITH R73913 OR R104621)
32	RE57394	1	Oil Filter	(MARKED RE57394) (USE WITH R73913 OR R104621)

ENGINE OIL FILTER AND HOUSING (6466) [01G04]

Нет текстового описания
