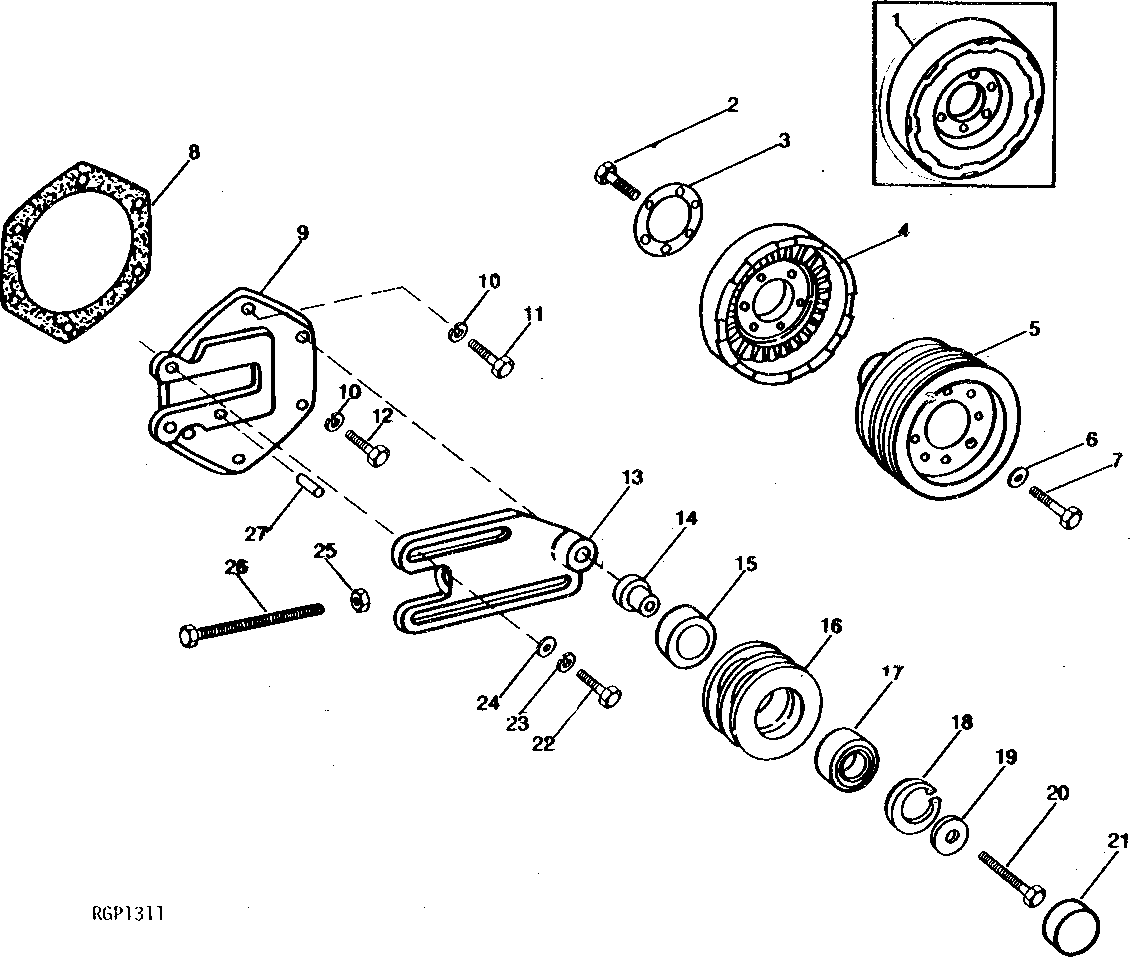

CRANKSHAFT PULLEY, DAMPER AND FAN DRIVE (ENGINE SERIAL NO. 110330- ) [01I04]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR87583	1	ABSORBER	(SUB AR102218) (644C,646C,762A)
1	AR70834	1	ABSORBER	(JD743,740A,743A)
2	19H1800	6	Cap Screw	3/8" X 1-1/2"
3	R49519	1	WASHER	(JD743,740A,743A)
4	AR102218	1	ABSORBER	-
5	AR74505	1	ABSORBER	(SUB AR102218 AND R71148) (JD743,740A,743A,644C,646C)
5	R71148	1	PULLEY	(743,740A,743A,644C,646C)
5	R69956	1	PULLEY	(762A)
6	R26333	1	Washer	-
7	R79846	1	Cap Screw	15.875 X 50.800 MM (5/8" X 2")
8	R50390	1	GASKET	(SUB R502011)
9	R70373	1	COVER	-
10	12H303	6	Lock Washer	5/16"
11	19H1921	5	CAP SCREW	5/16" X 3-1/4"
12	19H1849	1	Cap Screw	5/16" X 1-1/4", (SUB FOR R70374)
13	R70375	1	BRACKET	(JD743,740A,743A,644C,646C)
13	R70457	1	DEVICE	(NOT ILLUSTRATED) (762A)
14	R70377	1	HUB	-
15	AR92593	1	SEAL	-
16	T105390	1	IDLER	(SUB FOR R70376)
17	JD8670	1	BALL BEARING	-
18	R55408	1	Wear Ring	(SUB FOR R66072)
19	24H1330	1	Washer	15/32" X 1-3/8" X 7/64", (SUB FOR A4231R) (JD743,740A,743A,644C,646C)
20	19H2055	1	CAP SCREW	7/16" X 2-1/4", (JD743,740A,644C,646C)
20	19H2347	1	Cap Screw	7/16" X 3", (762A)
21	R66077	1	PLUG	-
22	19H1800	2	Cap Screw	3/8" X 1-1/2", (JD743,740A,644C,646C)
22	19H3219	2	Cap Screw	3/8" X 1-3/8", (762A)
23	12H304	2	Lock Washer	3/8", (JD743,740A,743A,644C,646C)
24	R51604	1	WASHER	(JD743,740A,743A,644C,646C)
24	24H1309	2	Washer	13/32" X 1-1/16" X 0.120", (762A)
25	14H971	1	NUT	1/2"
26	U45045	1	CAP SCREW	-
27	34H349	1	Spring Pin	3/8" X 1-1/4"

CRANKSHAFT PULLEY, DAMPER AND FAN DRIVE (ENGINE SERIAL NO. 110330- ) [01I04]
