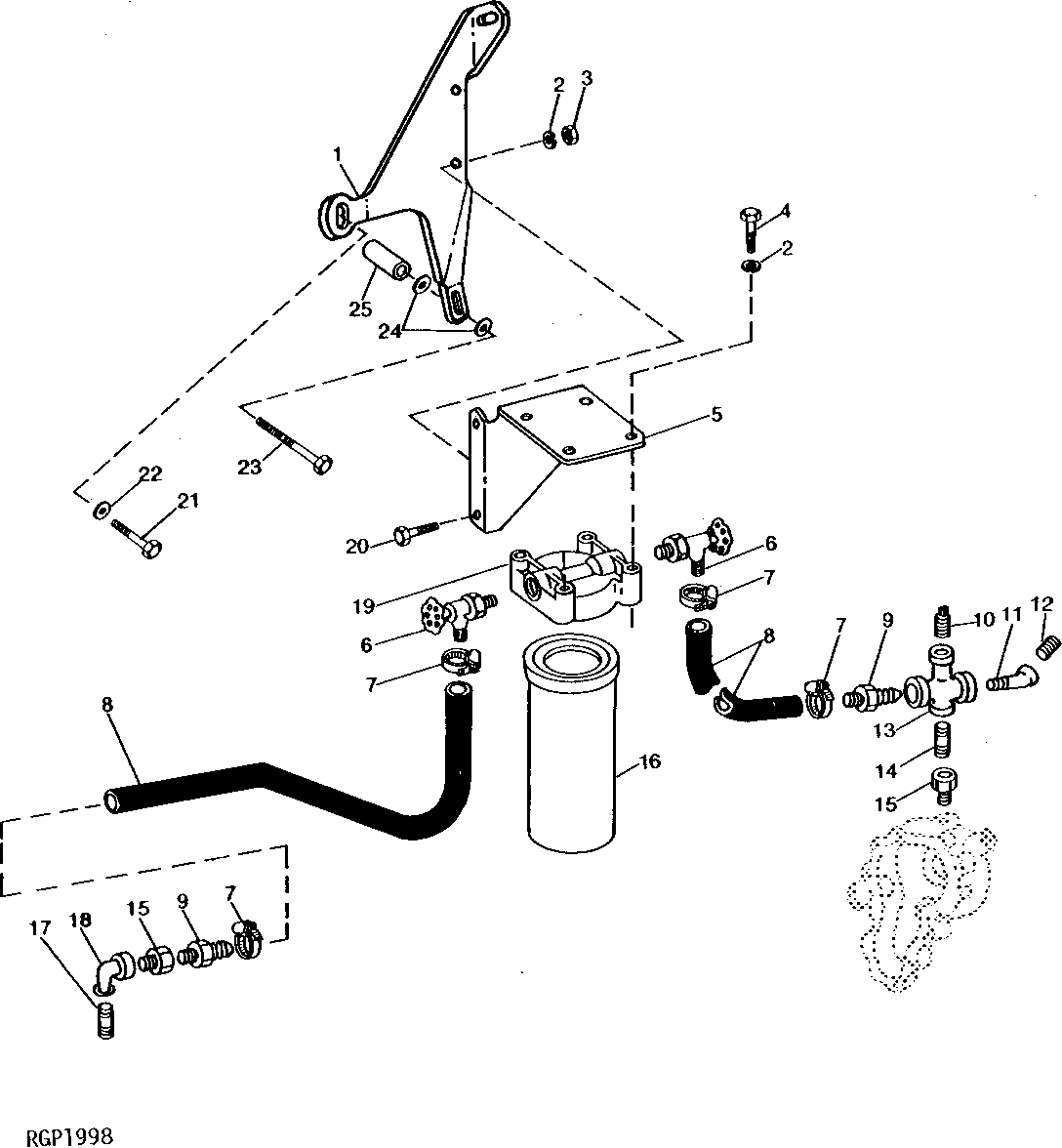

COOLANT CONDITIONER FILTER (ENGINE SERIAL NO. -256120) [01I23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T76913	1	SUPPORT	-
2	12H304	6	Lock Washer	3/8", (2 NOT REQUIRED WITH E55662)
3	E55662	2	Flange Nut	3/8"
4	19H3483	4	Cap Screw	3/8" X 1-1/8"
5	-	1	Part 5	-
6	AR87655	2	DRAIN VALVE	-
7	TY22464	4	Clamp	(SUB FOR AR21836)
8	R67419	2	Hose	(SUB T57822)
8	T57822	1	Bulk Hose	(BULK)
9	T19021	2	Hose Fitting	-
10	15H584	1	Pipe Plug	1/2"
11	15H492	1	ELBOW FITTING	-
12	15H585	1	Pipe Plug	3/4"
13	15H656	1	FITTING	-
14	29H199	1	THREADED NIPPLE	(NLA)
15	15H586	2	Adapter Fitting	-
16	AR94650	1	Filter	(COOLANT FILTER WITH COOLANT CONDITIONER) (SUB FOR AR89381 OR AR89379) (SUB RE11992)
16	RE11992	1	Coolant Filter	102 MM (4") (COOLANT FILTER WITHOUT COOLANT CONDITIONER)
17	29H593	1	Threaded Nipple	-
18	15H577	1	Elbow Fitting	-
19	AR87111	1	Base	-
20	19H1731	2	Cap Screw	3/8" X 1"
21	R45693	1	Cap Screw	-
22	24H1698	1	Washer	21/32" X 1-5/8" X 1/4"
23	19H2347	1	Cap Screw	7/16" X 3"
24	24H1886	2	Washer	15/32" X 1-1/8" X 0.180"
25	28H1495	1	Spacer	-

COOLANT CONDITIONER FILTER (ENGINE SERIAL NO. -256120) [01I23]
