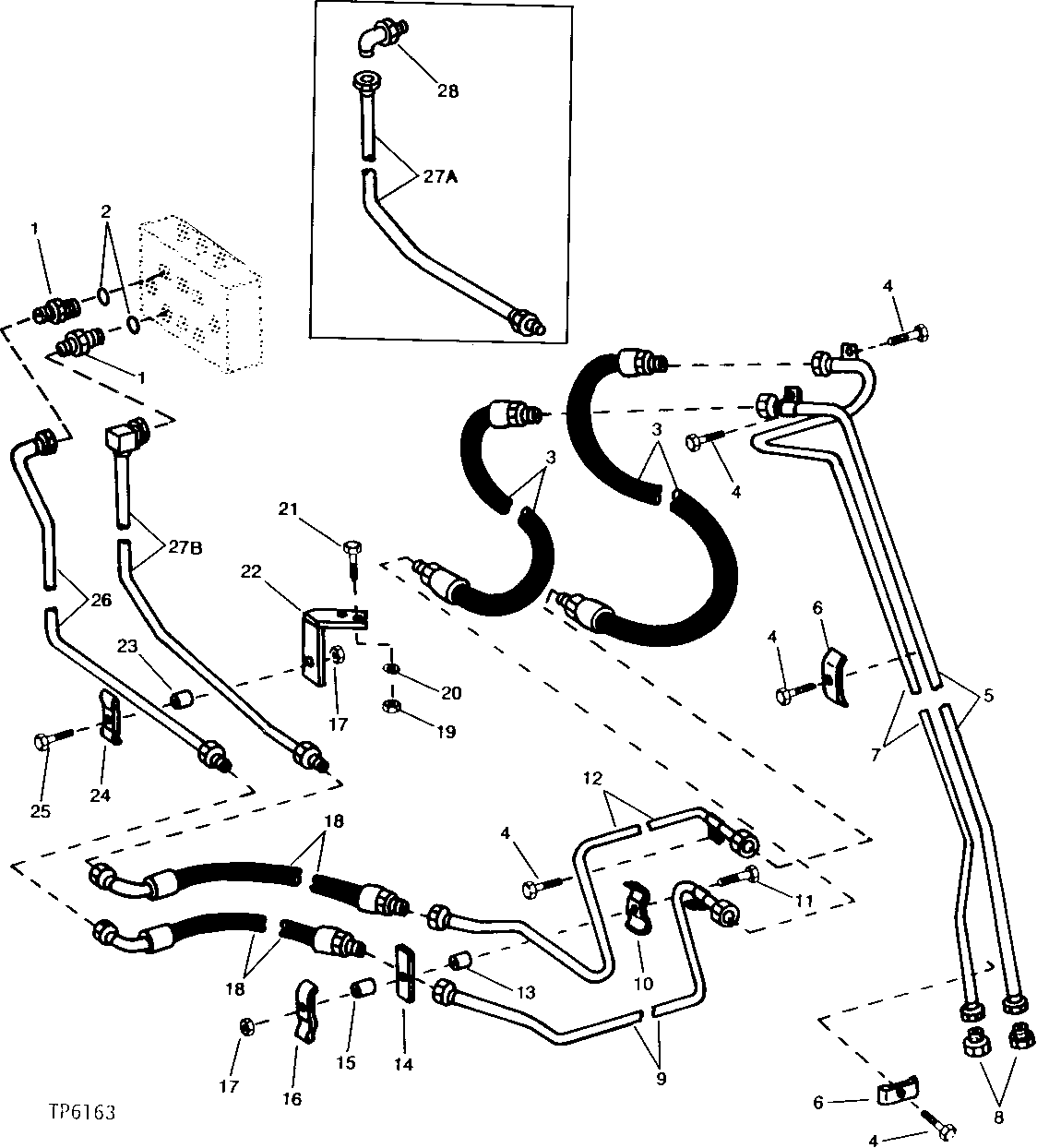

AUXILIARY CONTROL VALVE HYDRAULICS (FOR USE WITH BOX SECTION BOOM) (SERIAL NO. -506348) [03C22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T30933	2	ADAPTER FITTING	-
1	T30933	1	ADAPTER FITTING	-
2	R29936	2	O-Ring	-
3	AT61284	2	HYDRAULIC HOSE - FABRICATE	3/4" X 1 168 MM (46") X 3/4"
4	19H1648	6	Cap Screw	3/8" X 3/4"
5	AT61318	1	TUBE	-
6	T27022	2	Clamp	-
7	AT61319	1	TUBE	-
8	T40710	2	FITTING	-
9	AT61327	1	OIL LINE	-
10	T40739	1	CLAMP	-
11	19H3445	1	Cap Screw	3/8" X 3-3/4"
12	AT61326	1	TUBE	-
13	28H1527	1	Spacer	3/8" X 1-3/4"
14	T40740	1	STRAP	-
15	28H1697	1	Spacer	3/8" X 3/4"
16	T40741	1	CLAMP	-
17	T54568	8	Lock Nut	(SUB FOR T11234, THIS APPLICATION)
18	AT63318	2	HYDRAULIC HOSE	1-1/16" X 876 MM (34-1/2") X 3/4"
19	14H812	2	NUT	3/8"
20	12H304	2	Lock Washer	3/8"
21	19H1765	2	Cap Screw	3/8" X 1-3/4"
22	AT61324	1	BRACKET	-
23	28H3381	1	Spacer	3/8" X 5/8"
24	T31056	1	Clamp	-
25	19H3217	1	Cap Screw	3/8" X 1-3/4"
26	AT61320	1	LINE	-
28	AT61289	1	FITTING	90°
27A	AT61322	1	LINE	-
27B	AT71601	1	LINE	-

AUXILIARY CONTROL VALVE HYDRAULICS (FOR USE WITH BOX SECTION BOOM) (SERIAL NO. -506348) [03C22]
