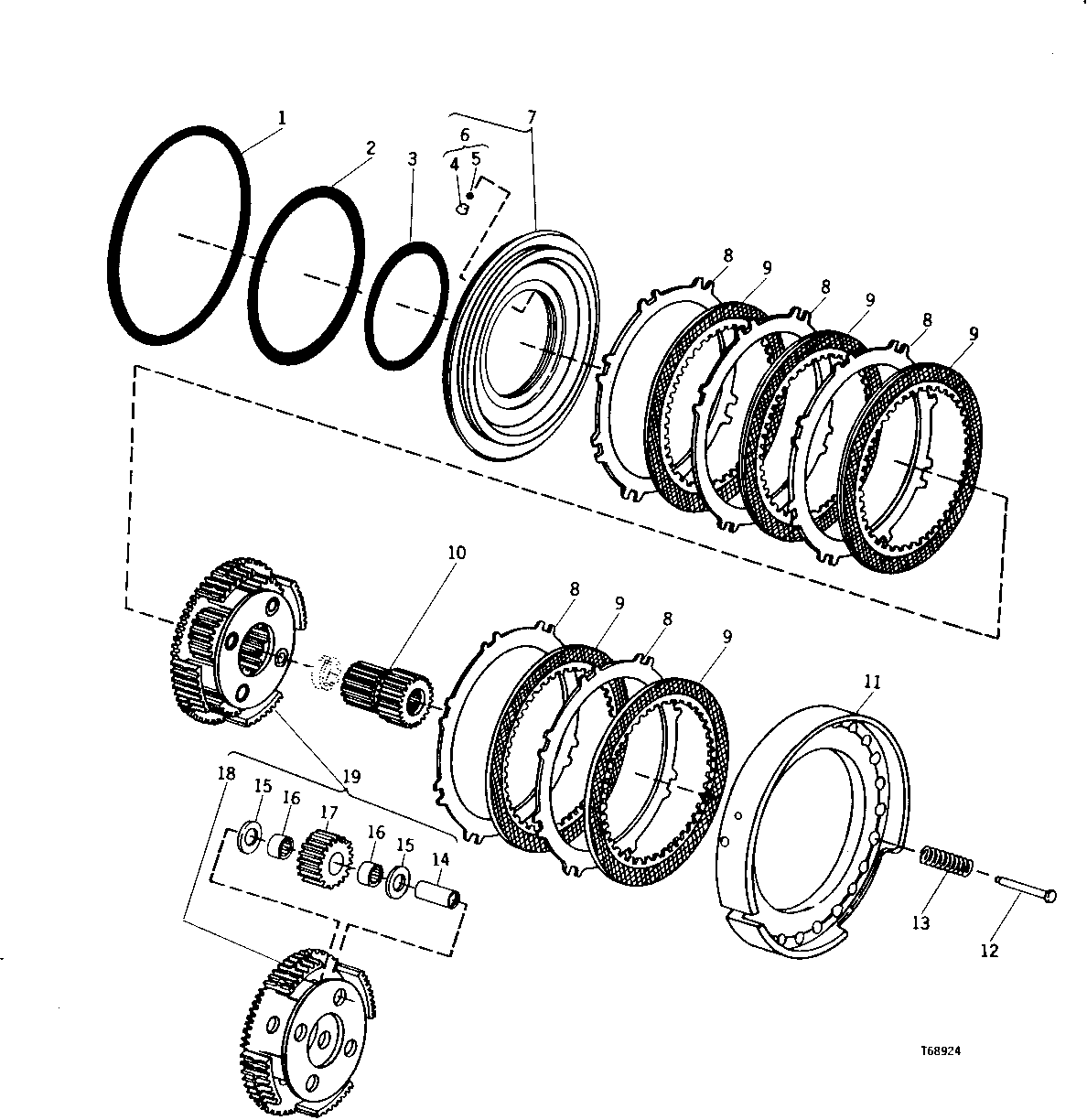

TRANSMISSION REVERSE CLUTCH AND PLANETARY (TT3420-1 SERIES TRANSMISSION) (SERIAL NO. 339877- ) [01G19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT64335	1	SEAL	(K1) (K2) RING PISTON
2	AT64336	1	SEAL	(K1) (K2) RING PISTON
3	AT37793	1	SEAL	(K1) (K2) RING PISTON
4	-	1	Part 4	FORWARD AND REVERSE, (SUB AT64338)
5	-	1	Part 5	(SUB AT64338)
6	AT64338	2	CLUTCH KIT	CHECK BALL AND RETAINER
7	-	1	Part 7	( AT64337 NO LONGER AVAILABLE)
8	T78796	5	CLUTCH PLATE	EXTERNAL SPLINE (SUB FOR T67525)
9	T67526	5	CLUTCH PLATE	INTERNAL SPLINES
10	T67530	1	GEAR	FORWARD AND REVERSE (25 AND 30 TEETH)
11	AT65052	1	CLUTCH	FORWARD AND REVERSE
12	T67532	15	PIN FASTENER	-
13	T67531	15	COMPRESSION SPRING	-
14	T67529	4	PIN	(SUB AT64339, THIS APPLICATION)
15	T67528	8	WASHER	(SUB AT64339, THIS APPLICATION)
16	JD9839	8	NEEDLE BEARING	(SUB FOR AT64341) (SUB AT64339, THIS APPLICATION)
17	AT64340	1	GEAR	PLANETARY (MATCHED SET OF 4) (SUB AT64339)
18	T67527	1	PLANET PINION CARRIER	(SUB AT64339)
19	AT64339	1	PLANET PINION CARRIER	-

TRANSMISSION REVERSE CLUTCH AND PLANETARY (TT3420-1 SERIES TRANSMISSION) (SERIAL NO. 339877- ) [01G19]
