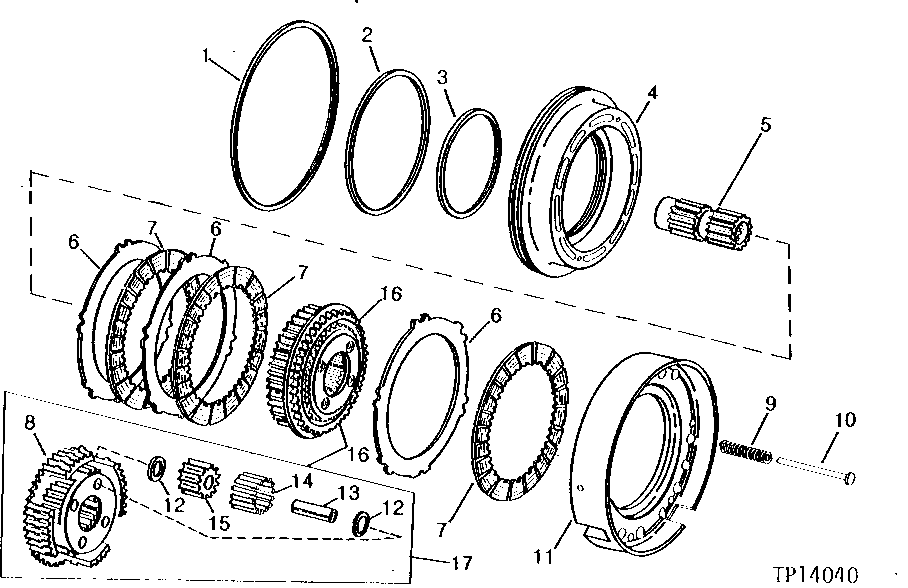

TRANSMISSION REVERSE CLUTCH AND PLANETARY (TT2421-1 SERIES TRANSMISSION) (SERIAL NO. -339876) [01F17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT37791	1	SEAL	(K)
2	AT37792	1	SEAL	(K)
3	AT37793	1	SEAL	(K)
4	T38979	1	PISTON	REVERSE
5	T27835	1	GEAR	(21 TEETH) FORWARD AND REVERSE
6	T38974	5	CLUTCH PLATE	EXTERNAL SPLINES
7	T27837	5	PLATE	INTERNAL SPLINES
8	T39989	1	PLANET PINION CARRIER	REVERSE, (SUB FOR T27839) (SUB AT38761)
9	T27844	12	SPRING	-
10	T27845	12	PIN FASTENER	-
11	AT37790	1	ANCHOR	REVERSE AND FORWARD CLUTCH
12	T27840	8	THRUST WASHER	(SUB AT38761, THIS APPLICATION)
13	T27842	4	PIN	(SUB AT38761, THIS APPLICATION)
14	T27841	88	ROLLER	(SUB AT38761, THIS APPLICATION)
15	AT26027	1	GEAR	PLANETARY (MATCHED SET OF 4) (SUB AT38761, THIS APPLICATION)
16	-	1	Part 16	REVERSE, (SUB AT38761)
17	AT38761	1	PLANET PINION CARRIER	REVERSE

TRANSMISSION REVERSE CLUTCH AND PLANETARY (TT2421-1 SERIES TRANSMISSION) (SERIAL NO. -339876) [01F17]
