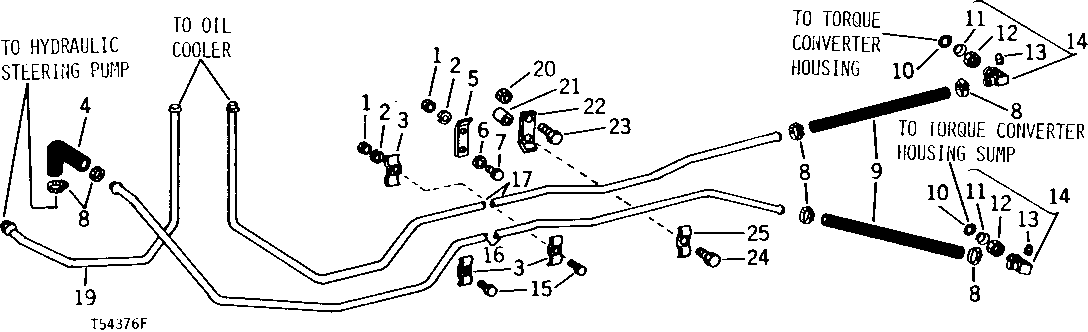

TRANSMISSION PRESSURE AND RETURN OIL LINES (SERIAL NO. -247612) [01H19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H785	3	Nut	5/16"
2	12H303	3	Lock Washer	5/16"
3	F2953R	5	Half Clamp	HALF
4	T40168	1	HOSE	-
5	T26952	1	STRAP	-
6	12H301	1	Lock Washer	1/2"
7	19H2735	1	Cap Screw	1/2" X 2"
8	AR21839	6	Clamp	-
9	-	2	Part 9	19 MM X 356 MM (3/4" X 14") (MAKE FROM T61939) (SUB FOR T33416)
10	U12547	2	O-Ring	(SUB FOR (2) F3171R)
11	-	1	Part 11	(SUB AT25032)
12	R27390	4	Nut	-
13	15H638	2	Pipe Plug	SQ. HD., 1/8"
14	AT25032	2	HOSE FITTING	90°
15	19H2661	3	Cap Screw	5/16" X 1-3/8"
16	T58430	1	TUBE	RETURN, (SUB FOR T41137 AND T53767) (ALSO ORDER T26952, F2953R, 28H2498, 19H3057, 19H2661 AND 14H785)
17	T53766	1	TUBE	FRONT, (SUB FOR T41136) (ALSO ORDER T26952, F2953R, 28H2498, 19H1974, 19H2661 AND 14H785)
18	28H2531	1	Bushing	1/2" X 7/8"
19	AT39938	1	OIL LINE	COOLER, REAR
20	14H785	1	Nut	5/16"
21	28H2498	1	Bushing	1/2" X 5/8"
22	T57292	1	STRAP	(SUB FOR T26952)
23	19H1974	1	Cap Screw	1/2" X 2-3/4"
24	19H2661	1	Cap Screw	5/16" X 1-3/8"
25	F2953R	1	Half Clamp	HALF

TRANSMISSION PRESSURE AND RETURN OIL LINES (SERIAL NO. -247612) [01H19]
