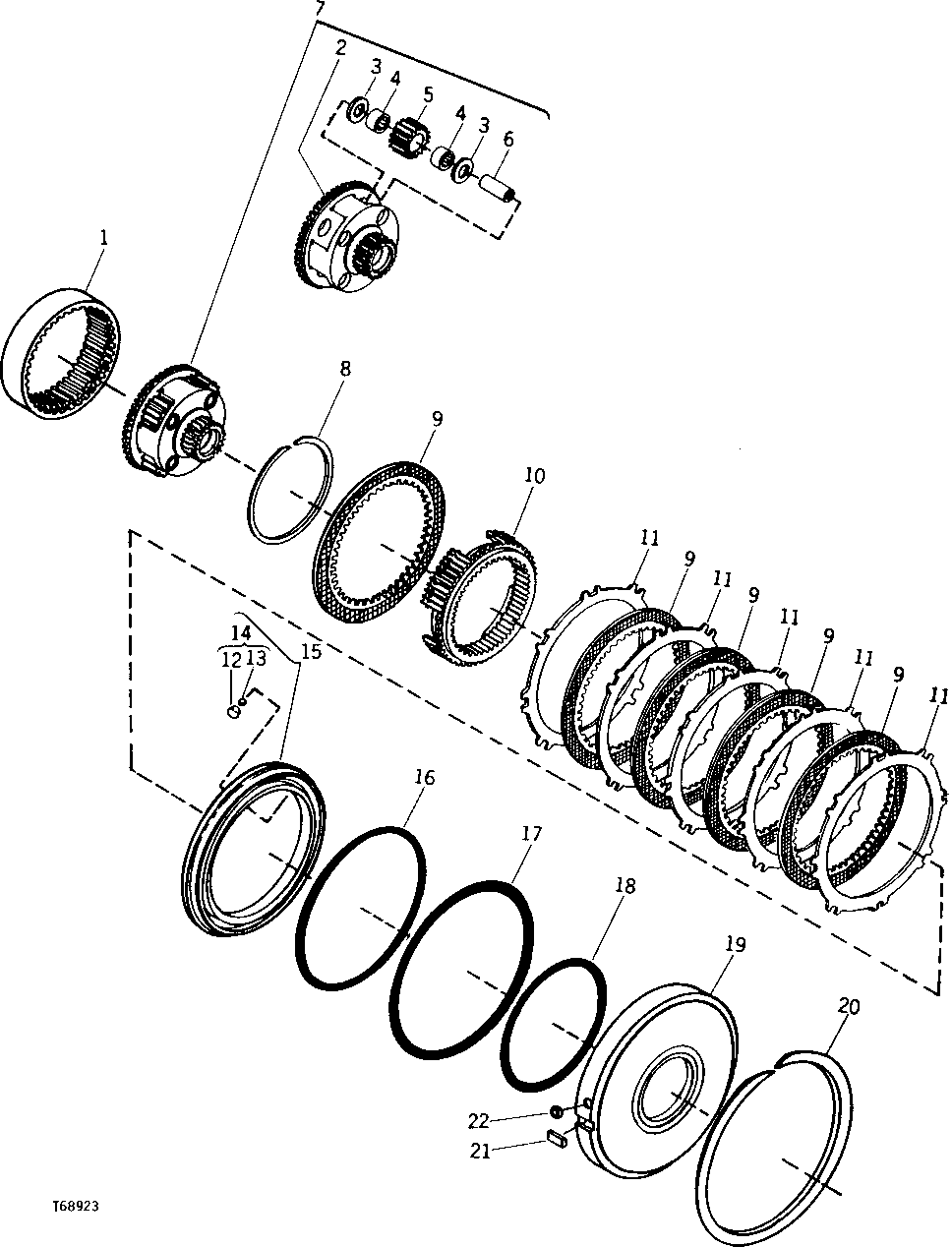

TRANSMISSION LOW CLUTCH AND PLANETARY (TT3420-1 SERIES TRANSMISSION) (SERIAL NO. 339877- ) [01G21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T67533	1	RING GEAR	(83 TEETH) REVERSE
2	T67534	1	PLANET PINION CARRIER	(SUB AT64343, THIS APPLICATION)
3	T67528	8	WASHER	(SUB AT64343, THIS APPLICATION)
4	JD9839	1	NEEDLE BEARING	(SUB FOR AT64341) (SUB AT64343, THIS APPLICATION)
5	T67535	4	PINION	(SUB AT64343) (24 TEETH)
6	T67529	4	PIN	(SUB AT64343, THIS APPLICATION)
7	AT64343	1	PLANET PINION CARRIER	-
8	T67536	1	SNAP RING	-
9	T67526	5	CLUTCH PLATE	INTERNAL SPLINED
10	T67537	1	RING GEAR	FORWARD RING (78 TEETH)
11	T78796	5	CLUTCH PLATE	EXTERNAL SPLINED (SUB FOR T67525)
12	-	1	Part 12	FORWARD AND REVERSE, (SUB AT64338)
13	-	1	Part 13	FORWARD AND REVERSE, (SUB AT64338)
14	AT64338	2	CLUTCH KIT	CHECK BALL AND RETAINER
15	AT65053	2	CLUTCH	FORWARD
16	AT64336	1	SEAL	(K1) (K2)
17	AT64345	1	SEAL	(K1) (K2)
18	AT64346	1	SEAL	(K1) (K2)
19	T67541	1	HOUSING	-
20	T67540	1	SNAP RING	-
21	T67539	1	KEY	-
22	T67538	1	INSERT	-

TRANSMISSION LOW CLUTCH AND PLANETARY (TT3420-1 SERIES TRANSMISSION) (SERIAL NO. 339877- ) [01G21]
