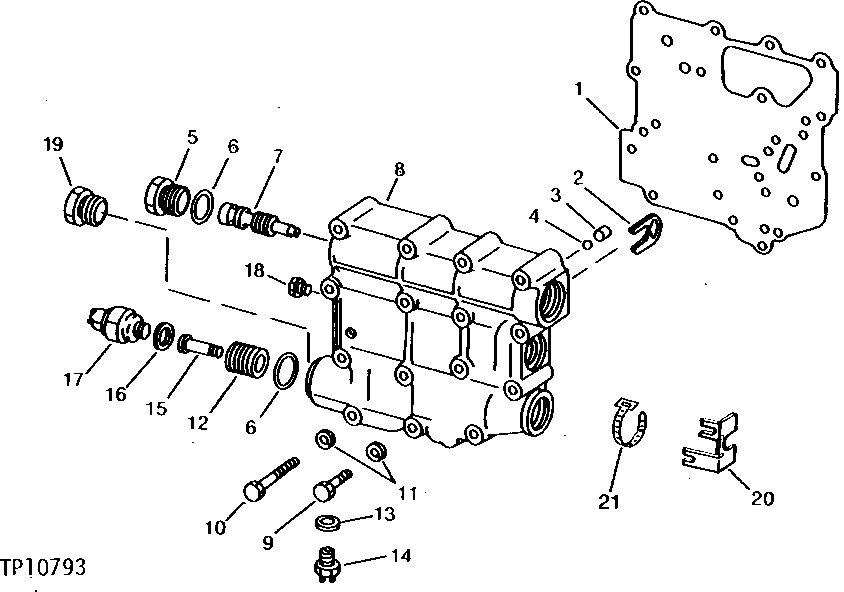

TRANSMISSION CONTROL VALVE HOUSING (TT2421-1 SERIES TRANSMISSION) (SERIAL NO. -339876) [01H08]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T27874	1	GASKET	(K)
2	T27881	1	STOP	VALVE
3	T27880	1	PLUG	-
4	T27879	1	BALL	-
5	T27875	1	FITTING	-
6	T27876	2	WASHER	(K)
7	T27877	1	HYDRAULIC PRESSURE VALVE	REGULATOR
7	T72078	1	HYDRAULIC PRESSURE VALVE	MAIN PRESSURE REGULATING
8	T49473	1	HOUSING	(SUB T78801, M41029 AND T72078)
8	T78801	1	HOUSING	(SUB FOR T72079)
9	19H2676	1	Cap Screw	3/8" X 1"
10	19H3031	15	Cap Screw	3/8" X 2-1/2"
11	12H304	16	Lock Washer	3/8"
12	T35024	1	ADAPTER FITTING	(A)
13	T16911	2	SHIM	-
14	AT85153	1	SWITCH	STARTING SAFETY, (SUB FOR R36265, AR85323 AND AR89691)
15	R26385	1	PIN FASTENER	(A)
16	T16911	8	SHIM	(A)
17	AT85153	1	SWITCH	(A) REVERSE WARNING, (SUB FOR R36265, AR85323 AND AR89691)
18	AT25264	1	Fitting	FOR OIL PRESSURE GAUGE
19	T27875	1	FITTING	(WITHOUT REVERSE WARNING SWITCH)
20	T77296	1	BRACKET	SEAL RETAINING, (SUB FOR AT75878)
21	M41029	1	Snap Ring	(USE WITH T78801) (SUB FOR T78799)
..	AT42337	1	SWITCH	REVERSE WARNING (CONTAINS ALL PARTS IDENTIFIED BY (A) AND ONE AT15162 FUSE)

TRANSMISSION CONTROL VALVE HOUSING (TT2421-1 SERIES TRANSMISSION) (SERIAL NO. -339876) [01H08]
