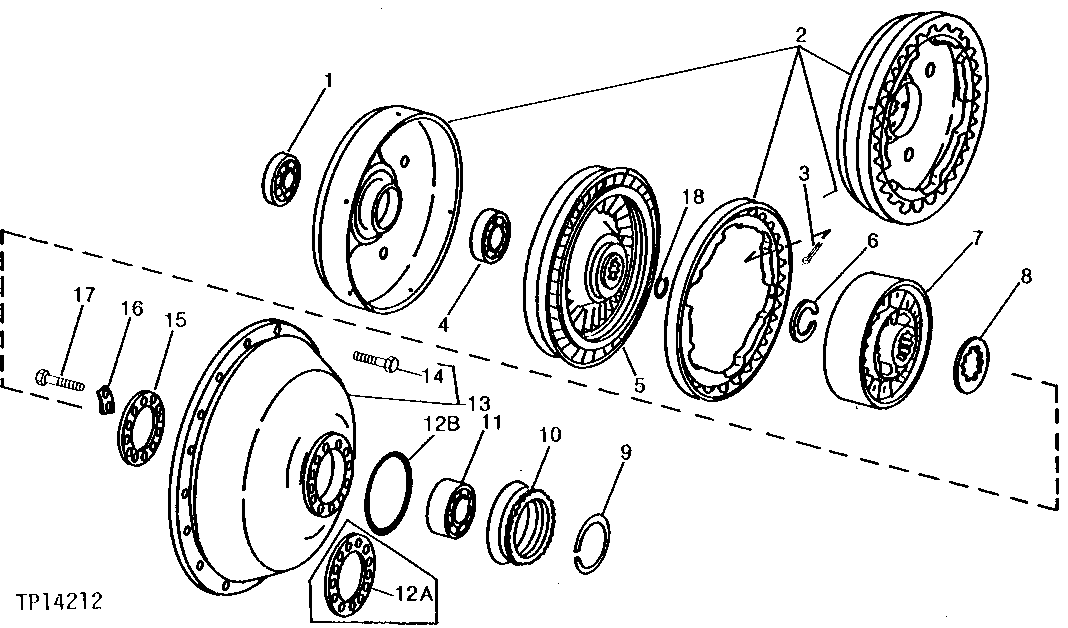

TORQUE CONVERTER (TT2421-1 SERIES TRANSMISSION) (SERIAL NO. -339876) [01F09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	JD9345	1	Ball Bearing	(SUB FOR JD9381)
2	AT38764	1	TURBINE	FIRST, WITH PINS
3	T40159	9	Spring Pin	-
4	JD9390	1	BALL BEARING	-
5	AT40677	1	TURBINE	(SUB AT103783) SECOND
6	T27912	1	SNAP RING	-
7	T39998	1	STATOR	-
8	T27914	1	WASHER	-
9	T27921	1	RING	(K)
10	AT52190	1	STEERING GEAR	(SUB FOR T39987) (WITH VANE PUMP) (WITHOUT REAR AXLE DISCONNECT)
10	T81059	1	GEAR	(40 TEETH) (WITH GEAR PUMP) (WITHOUT REAR AXLE DISCONNECT)
10	T39990	1	GEAR	(WITH GEAR PUMP) (WITHOUT REAR AXLE DISCONNECT) (SUB T81059 AND T81060)
10	T81059	1	GEAR	(40 TEETH) (WITH GEAR PUMP) (WITHOUT REAR AXLE DISCONNECT)
10	T39990	1	GEAR	(WITH GEAR PUMP) (WITH REAR AXLE DISCONNECT) (SUB T81059 AND T81060)
10	AT52190	1	STEERING GEAR	(SUB FOR T39987) (WITH VANE PUMP) (WITH REAR AXLE DISCONNECT)
11	JD9382	1	Ball Bearing	-
13	AT38766	1	PUMP	(SUB FOR AT64328)
14	T27918	24	BOLT	-
15	T27917	1	WASHER	-
16	T27916	6	STRIP	(K)
17	T67506	12	BOLT	(SUB FOR T27915)
18	T27924	1	SNAP RING	(SUB T102818 WITH AT103783)
12A	T32260	1	GASKET	(NOT USED WITH AT52190) (USE WITH T39990)
12B	T81060	1	O-RING	(USE WITH T81059)

TORQUE CONVERTER (TT2421-1 SERIES TRANSMISSION) (SERIAL NO. -339876) [01F09]
