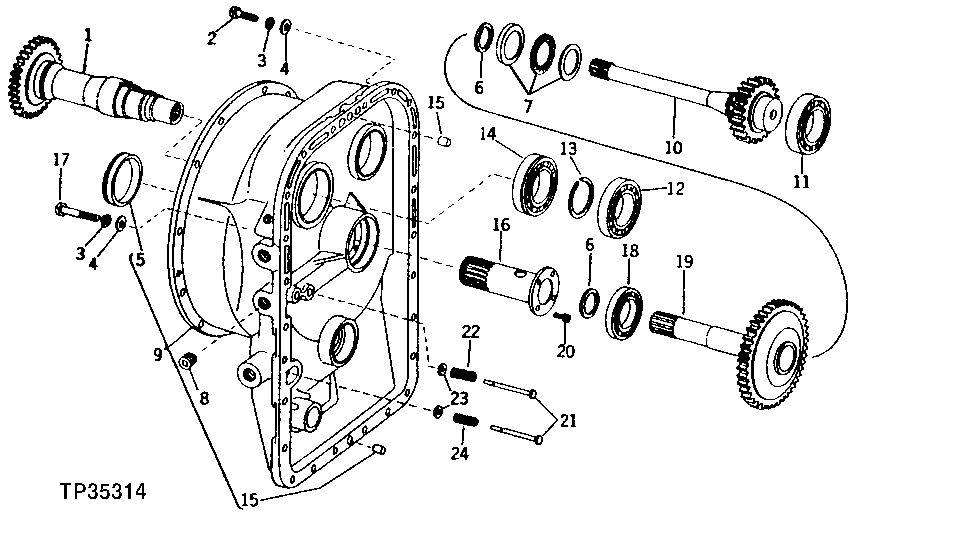

TORQUE CONVERTER HOUSING (TT2421-1 SERIES TRANSMISSION) (SERIAL NO. -339876) [01F10]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T29927	1	GEAR	(WITH GEAR LOADER PUMP) (44 TEETH) (WITH REAR AXLE DISCONNECT) (10" LONG)
1	T30921	1	GEAR	(WITH VANE LOADER PUMP) (42 TEETH) (WITHOUT REAR AXLE DISCONNECT)
1	T67508	1	GEAR	(WITH GEAR LOADER PUMP) (44 TEETH) (WITHOUT REAR AXLE DISCONNECT) (11-1/2" LONG)
1	T30921	1	GEAR	(WITH VANE LOADER PUMP) (42 TEETH) (WITH REAR AXLE DISCONNECT)
2	19H2500	23	CAP SCREW	7/16" X 1-3/8"
3	12H293	24	Lock Washer	7/16"
4	24H1325	24	Washer	15/32" X 59/64" X 0.065"
5	T27813	1	SLEEVE	-
6	T27925	2	RING	(K)
7	AT172935	1	THRUST BEARING	-
8	T27816	1	PIPE PLUG	-
9	AT38762	1	HOUSING	-
10	T27929	1	GEAR	(24 TEETH)
11	JD9390	1	BALL BEARING	-
12	JD9972	1	CYLINDRICAL ROLLER BEARING	(HEAVY-DUTY)
12	JD30227	1	Ball Bearing	(REGULAR-DUTY) (SUB FOR JD9972)
13	T27855	1	SNAP RING	-
14	JD9379	1	BALL BEARING	-
15	T27815	2	DOWEL PIN	-
16	T27922	1	SLEEVE	CONVERTER GROUND
17	19H2106	1	Cap Screw	7/16" X 2-3/4"
18	JD10215	1	CYLINDRICAL ROLLER BEARING	(SUB FOR JD9392)
19	T58943	1	GEAR	(SUB FOR T38669) (46 TEETH)
20	T27923	4	CAP SCREW	-
21	T27902	2	PIN FASTENER	VALVE
22	T27903	1	SPRING	(SUB FOR T27903)
22	T65549	1	SPRING	-
23	T27904	2	OIL PRESSURE REG. VALVE	-
24	T27905	1	SPRING	-
25	T27816	1	PIPE PLUG	-
26	AT38762	1	HOUSING	(CONTAINS KEYS 5, 15, AND 25)

TORQUE CONVERTER HOUSING (TT2421-1 SERIES TRANSMISSION) (SERIAL NO. -339876) [01F10]
