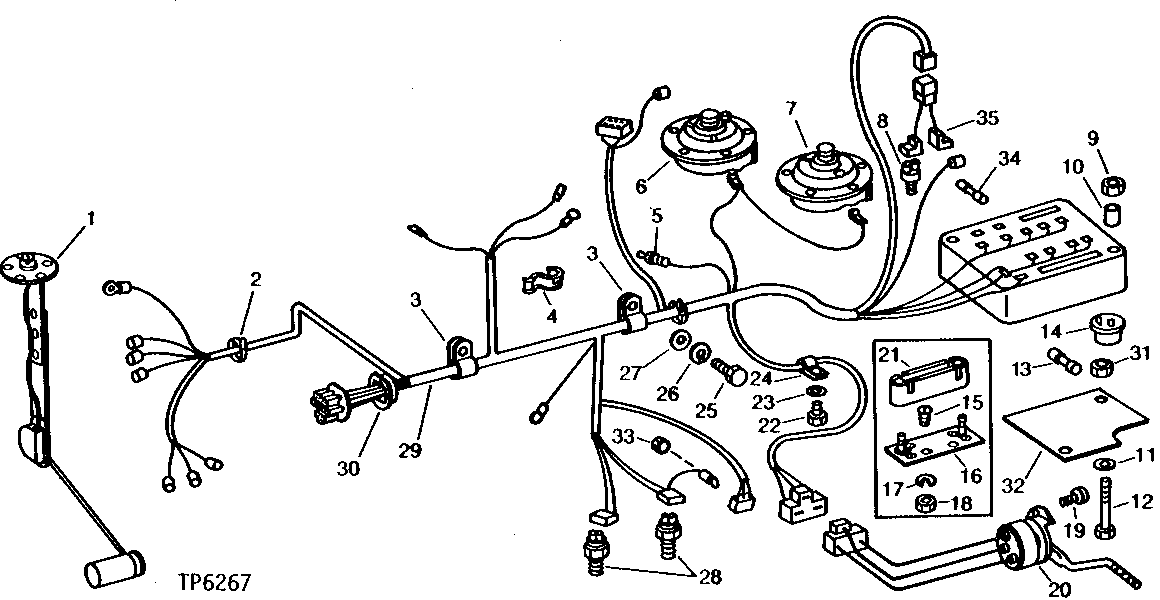

SWITCHES, HORN AND MAIN WIRING SYSTEM [02I23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT81472	1	SENDER	(SUB FOR AT39383, THIS APPLICATION)
2	R44302	3	Tie Band	-
3	T28949	2	Clamp	-
4	T27393	1	CLIP	-
5	AT25437	1	SWITCH	HAND AND PARKING BRAKE SIGNAL
6	R64700	1	High Note Horn	HIGH NOTE, (SUB FOR R11277)
7	R11276	1	HORN	LOW NOTE
8	AR85759	1	SWITCH	BRAKE STOP LIGHT, (SUB FOR R32548, THIS APPLICATION) (ALSO ORDER AT71012)
9	14H850	2	NUT	1/4"
10	28H1882	2	Spacer	1/8" X 1/2"
11	24H1285	2	Washer	17/64" X 7/16" X 0.065"
12	21H1037	2	SCREW	1/4" X 3"
13	AH84167	3	FUSE	(SUB FOR AT15162, THIS APPLICATION) (30 AMP)
13	AT28061	3	FUSE	(5 AMP)
13	AT28077	3	Fuse	(10 AMP)
13	AT39227	1	Fuse	(15 AMP)
14	AU41465	1	Flasher	WARNING
15	21H1317	2	SCREW	0.190" X 5/8"
16	AT25435	1	TERMINAL	-
17	12H246	2	LOCK WASHER	0.190"
18	14H778	2	Nut	0.190"
19	S3062M	2	SCREW	(NO LONGER AVAILABLE)
20	AT25448	1	SWITCH	SIGNAL
21	AT163088	1	FLASHER	(SUB FOR AT25436) PARKING BRAKE
22	19H1813	1	CAP SCREW	5/16" X 5/8"
23	12H303	1	Lock Washer	5/16"
24	T13814	1	Clamp	-
25	19H1648	1	Cap Screw	3/8" X 3/4"
26	12H304	1	Lock Washer	3/8"
27	24H1305	1	Washer	13/32" X 13/16" X 0.065"
28	AT85153	2	SWITCH	(SUB FOR R36265, AR85323 AND AR89691)
29	AT50364	1	WIRING HARNESS	(WITHOUT PARKING BRAKE FLASHER LEADS) (SUB FOR AT39974)
30	AT39964	1	GROMMET	-
31	14H850	2	NUT	1/4", (WITH FUSE BOX COVER)
32	T43441	1	COVER	-
33	14H812	1	NUT	3/8", (NEUTRAL START SWITCH GROUND WIRE)
34	AT15162	1	FUSE	30 AMP (WITH REVERSE WARNING ALARM)
35	AT71012	1	WIRING HARNESS	-
