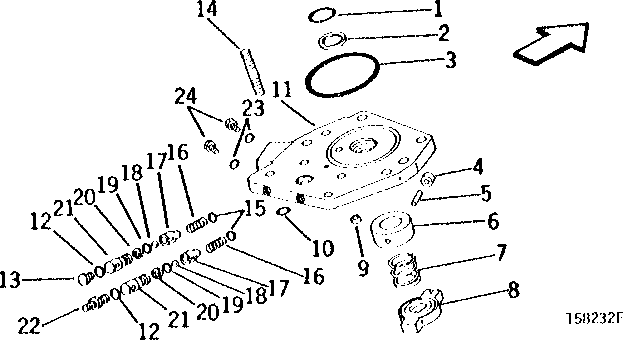

STEERING VALVE CYLINDER COVER (SERIAL NO. 247613- ) [02B10]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R56461	1	O-Ring	(B)
2	R26441	1	BACK-UP RING	(B)
3	R44280	1	PACKING	(B) (A) (SUB AR67783, THIS APPLICATION)
4	R26755	2	WASHER	-
5	R27091	2	PIN	-
6	R40149	1	LOCKING COLLAR	-
7	R40531	1	SPRING	-
8	R37424	1	NUT	-
9	-	1	Part 9	(A) (SUB AR67783)
10	R27166	1	O-Ring	(B) (C)
11	AR88218	1	COVER	(C) (MARKED R54702)
12	R26286	1	O-Ring	(B)
13	R27094	1	Drain Plug	-
14	R55183	1	STUD	(C)
15	R44255	2	WASHER	-
16	R44256	2	SPRING	-
17	R44254	2	GUIDE	-
18	400R	2	Ball	-
19	A4365R	2	O-Ring	(B)
20	R34129	1	Back-Up Ring	(B)
21	R59662	2	CHECK VALVE	-
22	R40617	1	FITTING	-
23	R26287	2	O-Ring	(B)
24	R31631	2	DRAIN PLUG	-
..	AR63142	1	VALVE	(INCLUDES ALL PARTS ON THIS PAGE AND PAGE 45-9 PLUS ALL PARTS IDENTIFIED BY (B) ON PAGES 45-5 AND 45-7) (SUB AR86940)
..	AR86940	1	VALVE	(CONTAINS ALL PARTS ON THIS PAGE AND PAGE 45-9 PLUS ALL PARTS IDENTIFIED BY (B) ON PAGES 45-5 AND 45-7)
..	AT59906	1	KIT	REPLACEMENT
..	AR67783	1	O-RING KIT	CYLINDER TO COVER PACKING RING
..	AR88218	1	COVER	-

STEERING VALVE CYLINDER COVER (SERIAL NO. 247613- ) [02B10]
