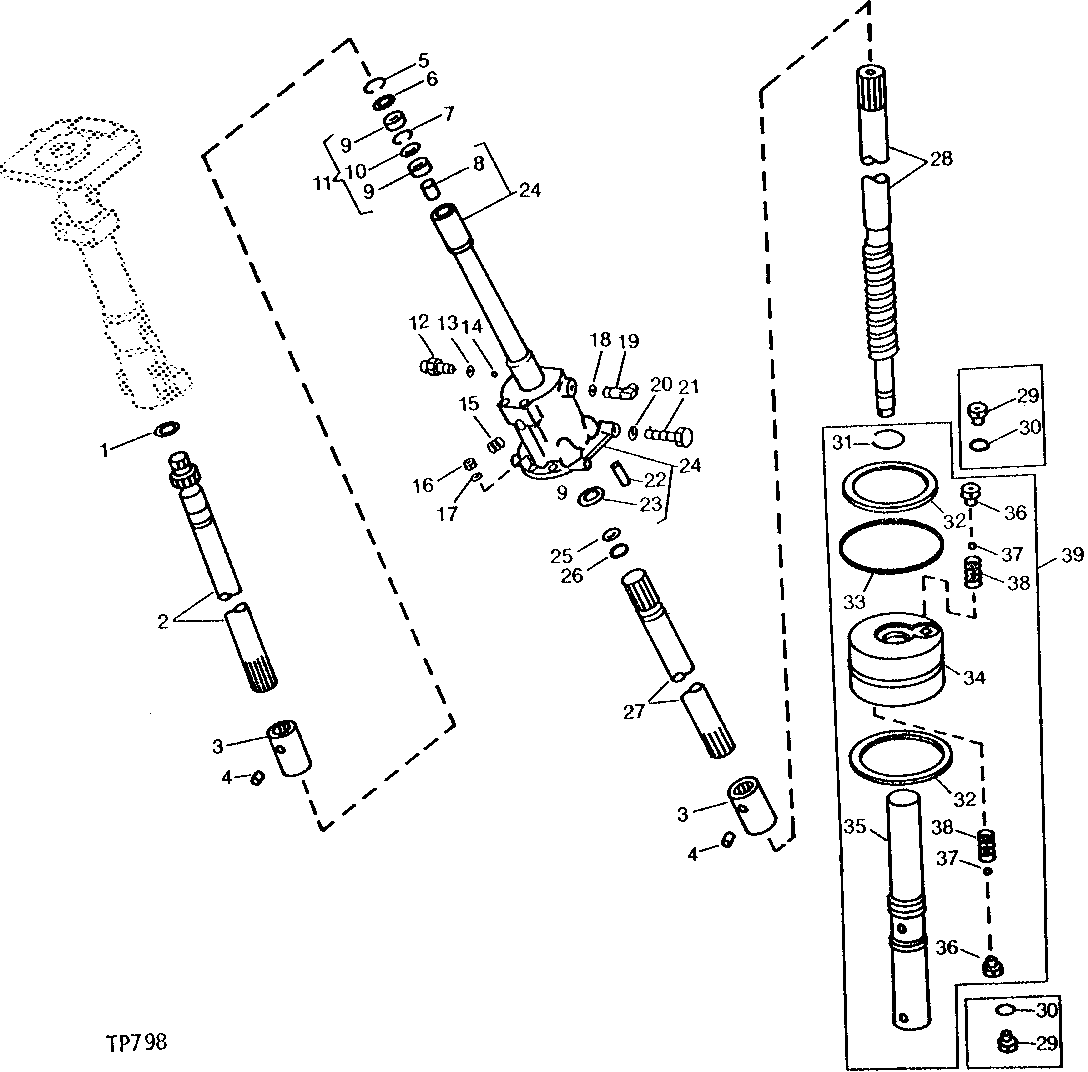

STEERING CYLINDER HOUSING, VALVE SHAFT AND PISTON ASSEMBLY (SERIAL NO. 247613- ) [02B07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L308T	1	WASHER	-
2	R73737	1	SHAFT	(SUB FOR R37426) (UPPER)
3	R27319	2	SPLINED COUPLING	(A)
4	34H282	2	Spring Pin	(A) 3/16" X 1"
5	B169R	1	SNAP RING	(A)
6	R42629	1	WASHER	(A)
7	R26933	1	SNAP RING	(A)
8	R27320	1	BUSHING	-
9	R32730	2	SEAL	(A)
10	R32731	1	WASHER	(A)
11	AR34172	1	SEAL KIT	(A) (NO LONGER AVAILABLE)
12	R27299	1	SCREW	(A)
13	R27453	1	Nut	(A)
14	400R	1	Ball	(A)
15	15H558	1	Pipe Plug	(A) HEX. CTSK., 1/8"
16	14H813	2	Nut	(A) 7/16"
17	12H293	2	Lock Washer	(A) 7/16"
18	R26448	1	O-Ring	(B)
19	AT35121	1	Elbow Fitting	ADJUSTABLE, 90°
20	12H304	4	Lock Washer	3/8"
21	19H2676	2	Cap Screw	3/8" X 1"
22	R32186	2	DOWEL PIN	-
23	R27087	1	WASHER	-
24	AR47290	1	CYLINDER	(MARKED R73816)
25	R26441	1	BACK-UP RING	(B) (A)
26	R56461	1	O-Ring	(B) (A)
27	R42114	1	SHAFT	(A)
28	R37423	1	SHAFT	(A)
29	R31202	2	VALVE	(SUB R74571, THIS APPLICATION) (ALSO ORDER 400R)
30	R26287	2	O-Ring	(B) (USE WITH R31202)
31	F534R	1	Snap Ring	-
32	R26754	2	BACK-UP RING	(B)
33	R26543	1	O-Ring	(B)
34	-	1	Part 34	(SUB AR101142)
35	-	1	Part 35	(SUB AR101142)
36	R74571	2	VALVE SEAT	RELIEF VALVE, (ALSO ORDER 400R) (SUB FOR R65587)
37	400R	2	Ball	(SUB FOR H871R, THIS APPLICATION) (ALSO ORDER R74571)
38	R65809	2	SPRING	(SUB FOR R59535)
39	AR101142	1	PISTON	(SUB FOR AR71887 AND AR84866)
..	AT59906	1	KIT	STEERING VALVE REPLACEMENT
..	AR63142	1	VALVE	(SUB AR86940)
..	AR86940	1	VALVE	-
