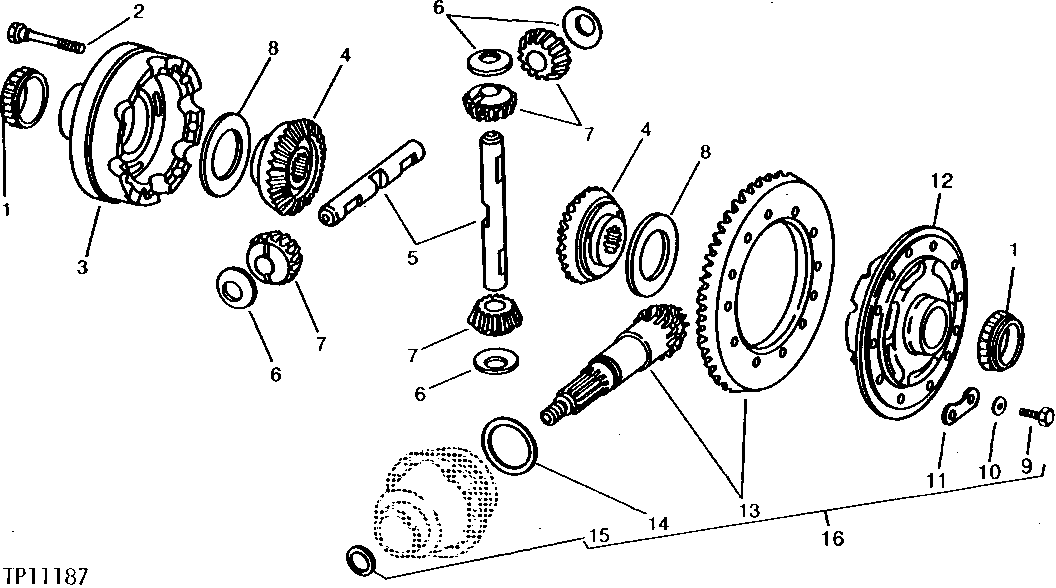

STANDARD DIFFERENTIAL HOUSING [01I13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	JD8159	1	Bearing Cone	L.H. REAR, R.H. FRONT
1	JD9055	1	Bearing Cone	R.H. REAR, L.H. FRONT
2	R44888	8	CAP SCREW	-
3	R62468	1	COVER	HOUSING, (SUB FOR R56294)
4	R59289	2	Bevel Gear	BEVEL, (SUB FOR R56287)
5	R58426	2	PINION SHAFT	(SUB FOR R56441)
6	R44388	4	THRUST WASHER	-
7	R42444	4	PINION	-
8	R77145	2	WASHER	(SUB FOR R53202 AND R65741, THIS APPLICATION)
9	R48787	12	Cap Screw	-
10	R48429	12	Washer	REAR (USE WITH RE18896)
11	R56887	6	PLATE	FRONT (USE WITH RE11401)
12	R83585	1	HOUSING	-
13	-	1	Part 14	(MARKED R56288 OR R80048) (MARKED R64069) (SUB RE18896)
14	R35365	1	Shim	0.08MM(003")
14	R35366	1	Shim	0.13MM(.005")
14	R35367	1	Shim	0.25MM(010")
15	R51196	1	Shim	0.18MM(.007")
15	R51197	1	Shim	0.25MM(.010")
15	R51198	1	Shim	0.30MM).012")
15	R51199	1	Shim	0.38MM(.015")
16	RE18896	1	BEVEL GEAR DRIVE	FRONT, (SHAFT MARKED R80048) (GEAR MARKED R64069) WITH SPIRAL BEVEL PINION SHAFT, GEAR, SPECIAL WASHERS, CAP SCREWS AND SHIMS, (SUB FOR AR66736 AND AR98727, THIS APPLICATION)
16	RE11401	1	GEAR	REAR, (SHAFT MARKED R56289) (GEAR MARKED R51973) WITH SPIRIAL BEVEL PINION SHAFT GEAR, SPECIAL WASHERS, CAP SCREWS AND SHIMS, (SUB FOR AR66737, THIS APPLICATION)
