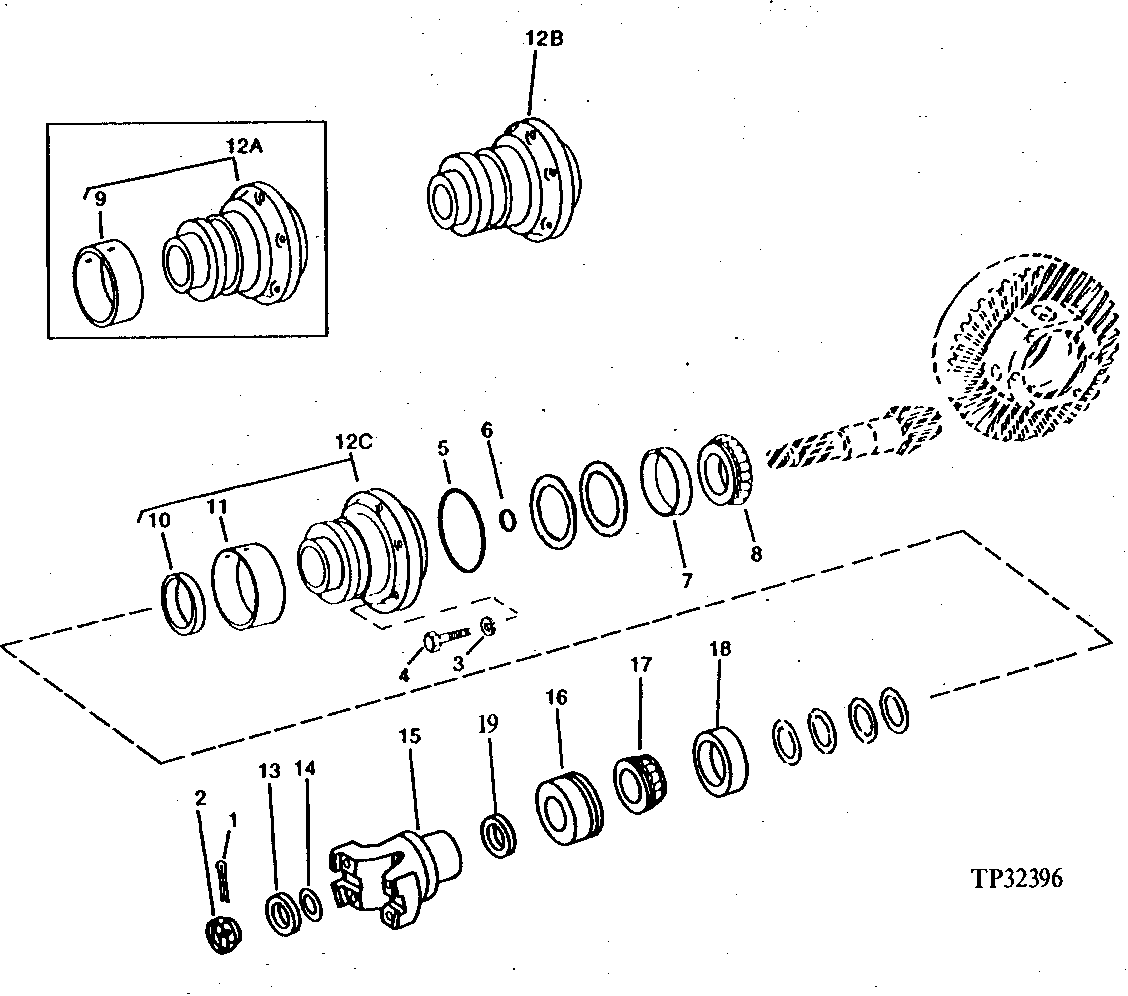

SPIRAL BEVEL GEAR, SHAFT, QUILL AND YOKE [01I11]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	11M7032	1	Cotter Pin	5 X 50 MM
2	R48776	1	Nut	-
3	R47172	6	Washer	(FRONT DIFFERENTIAL) (11 USED, REAR DIFFERENTIAL)
4	R48783	6	CAP SCREW	(FRONT DIFFERENTIAL)
4	R68206	11	Cap Screw	(REAR DIFFERENTIAL)
5	R27796	1	O-Ring	-
6	R56308	1	Spacer	-
7	JD8280	1	Bearing Cup	-
8	JD10377	1	Bearing Cone	(SUB FOR JD9004)
9	R48583	1	SLEEVE	(REAR DIFFERENTIAL CASE)
10	R70453	1	Sleeve	-
11	R70452	1	Sleeve	-
13	R48733	1	Washer	-
13	R48734	1	Washer	-
13	R48735	1	Washer	-
14	A4540R	1	O-Ring	-
15	R107600	1	Universal Joint Yoke	(SUB RE45317)
15	R56304	1	UNIVERSAL JOINT YOKE	(SUB RE45317)
16	AR66751	1	SEAL	(USE WITH R56304)
16	RE45315	1	Seal Kit	(USE WITH R93134)
16	R100500	1	Seal	-
17	JD9078	1	Bearing Cone	-
18	JD8255	1	Bearing Cup	-
19	RE45315	1	Seal Kit	-
19	R100500	1	Seal	-
12A	AR66747	1	BEARING HOUSING W/O BEARING	(REAR DIFFERENTIAL CASE) (11 HOLE)
12B	R87967	1	BEARING HOUSING W/O BEARING	(FRONT DIFFERENTIAL CASE) (6 HOLE) (SUB FOR R56299)
12C	RE35235	1	BEARING HOUSING W/O BEARING	(REAR DIFFERENTIAL CASE) (MARKED R70449 OR R94432) (SUB FOR AR92434)

SPIRAL BEVEL GEAR, SHAFT, QUILL AND YOKE [01I11]

Нет текстового описания
