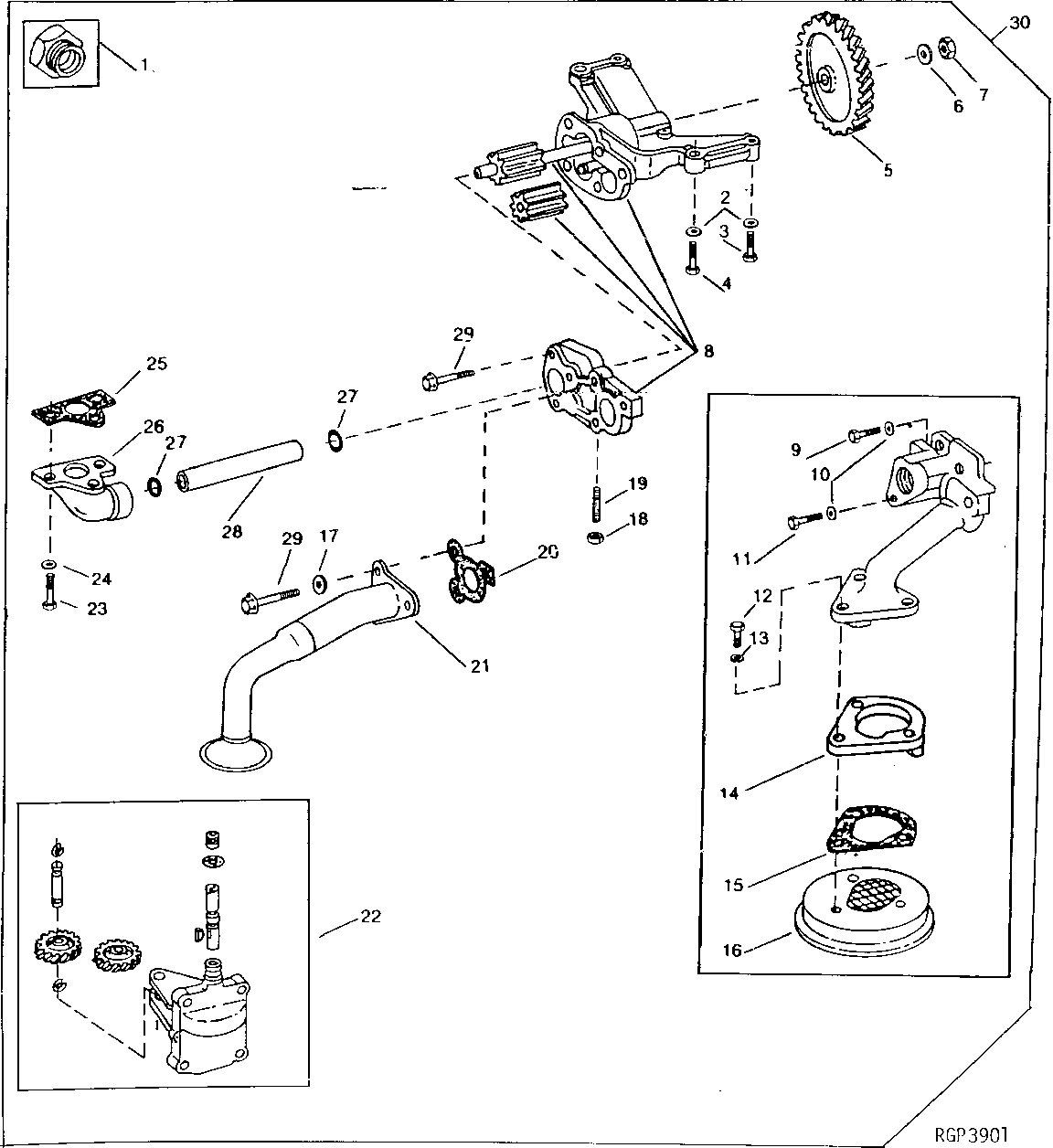

SHORT BLOCK INSTALLATION KIT (ENGINE SHORT BLOCK SERIAL NO. -628710) (6531T) [01B12]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R54123	1	Adapter Fitting	-
2	R57696	4	Washer	-
3	19H2545	2	CAP SCREW	3/8" X 1-3/8"
4	19H3239	2	Cap Screw	3/8" X 1-1/4"
5	R62938	1	Gear	-
6	T21242	1	Washer	-
7	14H826	1	Nut	1/2", (SUB FOR R79187)
8	RE44118	1	Oil Pump	(MARKED R62946 OR R124328) (SUB FOR AR99339) (SUB SE501063, THIS APPLICATION)
8	SE501063	1	Oil Pump Reman	(MARKED R62946 OR R124328)
9	19H1765	3	Cap Screw	3/8" X 1-3/4"
10	M72490	5	Washer	(SUB FOR R42729, APPL)
11	19H2733	2	Cap Screw	3/8" X 2-3/8"
12	19H3552	3	Cap Screw	5/16" X 1-1/2"
13	12H303	3	Lock Washer	5/16"
14	R80400	1	ADAPTER FITTING	-
15	R70475	1	GASKET	-
16	AR77711	1	OIL PUMP INTAKE	-
17	-	1	Part 18	-
18	22H1040	1	Set Screw	5/16" X 1-1/4"
19	14H785	1	Nut	5/16"
20	R100569	1	Gasket	-
21	RE43168	1	Oil Pump Intake	(USE WITH R48850, R72352, R73192, AR36886 OR AR69040)
21	RE42650	1	OIL PUMP INTAKE	(NOT ILLUSTRATED - USE WITH RE60622 OR SE501063)
22	RE29234	1	HOUSING	(SUB FOR AR80682)
23	19H2552	3	CAP SCREW	3/8" X 1-1/8"
24	M72490	3	Washer	(SUB FOR R70234 AND R42729, APPL)
25	R69418	1	GASKET	-
26	R62948	1	ELBOW FITTING	-
27	R71732	2	O-Ring	-
28	R62947	1	Tube	-
29	R104628	2	Screw	-
29	R104628	3	Screw	(OIL PUMP INTAKE TO COVER)
30	RE17040	1	KIT	(SUB RG23549 AND RE42650, APPL)
..	AR99339	1	Oil Pump	(MARKED R62946) (SUB SE501063 AND RE42650, THIS APPLICATION)
..	SE501063	1	Oil Pump Reman	(MARKED R62946) (REMANUFACTURED) CALL 1-888-697-3626

SHORT BLOCK INSTALLATION KIT (ENGINE SHORT BLOCK SERIAL NO. -628710) (6531T) [01B12]
