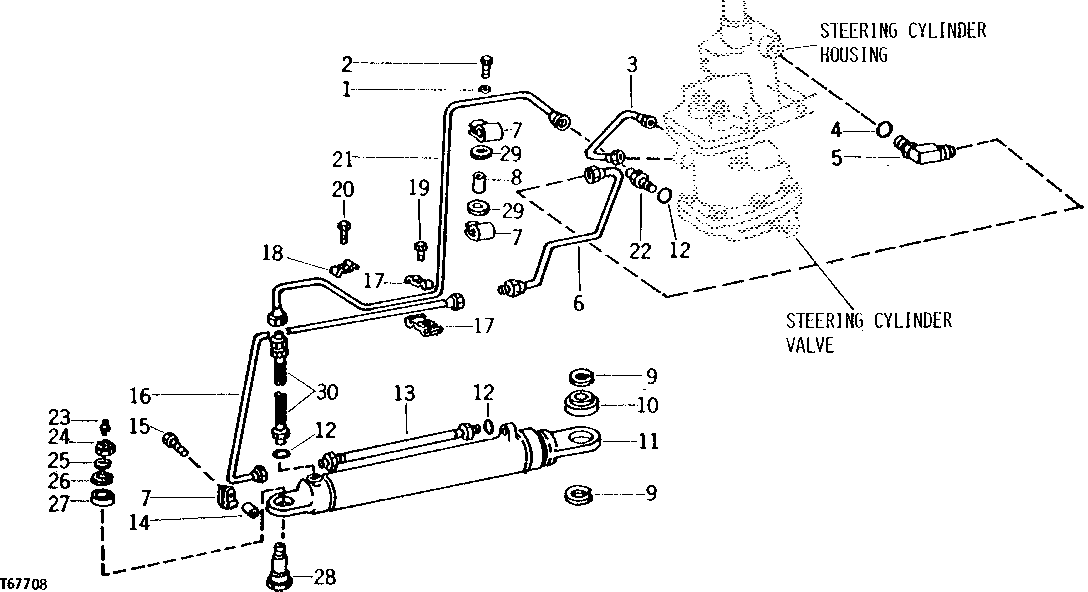

RIGHT-HAND STEERING CYLINDER HYDRAULIC OIL LINES (SERIAL NO. 247613- ) [02B22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	24H1305	1	Washer	13/32" X 13/16" X 0.065"
2	19H2458	1	Cap Screw	3/8" X 3"
3	AT26359	1	LINE	STEERING VALVE PRESSURE
4	R26448	1	O-Ring	-
5	AT35120	1	Elbow Fitting	(SUB FOR AT32337) 90° ADJUSTABLE
6	AT52578	1	LINE	(FRONT) STEERING CYLINDER
7	T24958	4	Clip	-
8	28H1532	1	Spacer	3/8" X 2"
9	F2367R	4	SNAP RING	-
10	AT54530	2	BUSHING	(SUB FOR AT28416) (SUB AT61505)
10	AT61505	2	BUSHING	-
11	AU41980	1	CYLINDER	STEERING R.H.
12	R26375	4	O-Ring	-
13	T22012	1	HYDRAULIC HOSE - FABRICATE	3/4" X 436 MM (17-1/4") X 3/4", OIL
14	28H2576	1	SPACER	3/8" X 1-1/2"
15	19H1726	1	Cap Screw	3/8" X 2-1/4"
16	AT52582	1	LINE	RIGHT STEERING CYLINDER
17	R34064	2	CLAMP	-
18	E16981	1	CLAMP	-
19	19H2021	1	Cap Screw	3/8" X 5/8"
20	19H2633	1	Cap Screw	3/8" X 1-1/2"
21	AT25603	1	LINE	LEFT STEERING LINE
22	R27237	2	Fitting	-
23	T162396	1	Lubrication Fitting	STRAIGHT, 1/8", (SUB FOR JD7759 OR JD7798)
23	JD7781	1	Lubrication Fitting	90°, 1/8"
24	T27821	2	LOCK NUT	-
25	N140213	2	WASHER	THRUST
26	T28070	2	WASHER	SEALING
27	T29625	2	WASHER	SPACER
28	T29624	2	CAP SCREW	STEERING CYLINDER (FRONT AND REAR)
29	24H1652	2	Washer	13/32" X 11/16" X 7/64"
30	AT27777	1	HYDRAULIC HOSE - FABRICATE	3/4" X 518 MM (20-1/2") X 3/4"
