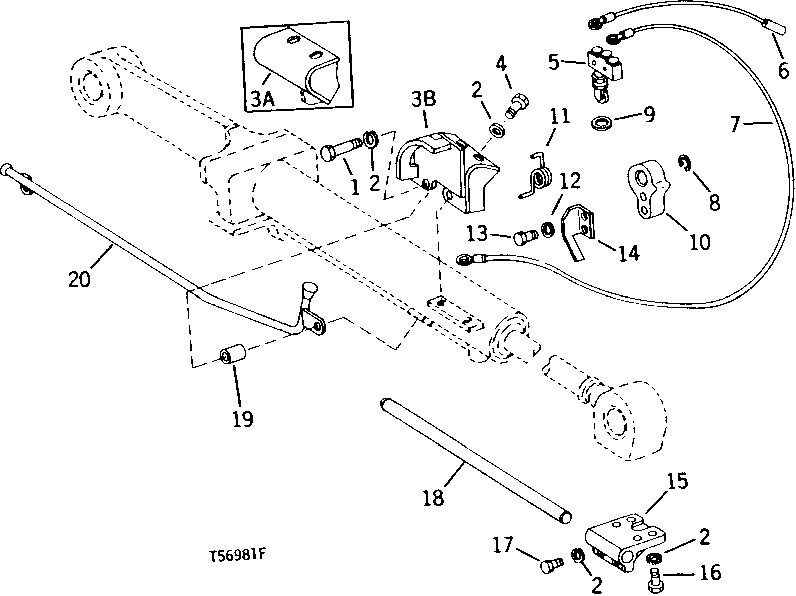

RETURN-TO-DIG ACTUATOR, CAM AND SWITCH (WITH REGULAR BUCKETS OR LUMBER FORK) [02E23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2722	1	Cap Screw	3/8" X 2-3/8"
2	12H304	9	Lock Washer	3/8"
4	19H1648	2	Cap Screw	3/8" X 3/4"
5	AT40342	1	SWITCH	RETURN-TO-DIG
5	AT52530	1	SWITCH	RETURN-TO-DIG
6	AT40344	1	WIRING LEAD	-
7	AT40343	1	WIRING LEAD	-
8	R26871	1	Snap Ring	-
9	24H1272	1	Washer	9/16" X 1-1/4" X 1/4"
10	AT40341	1	CAM	-
11	T41367	1	TORSION SPRING	-
12	12H302	2	Lock Washer	1/4"
13	19H1919	2	Cap Screw	1/4" X 5/8"
14	T41370	1	INDICATOR LIGHT	-
14	T56283	1	SUPPORT	-
15	T41379	1	BRACKET	ACTUATOR
16	19H3239	4	Cap Screw	3/8" X 1-1/4"
17	19H2284	2	Cap Screw	3/8" X 7/8"
18	T41378	1	CAM	(USE WHEN EQUIPPED WITH REGULAR BUCKETS)
18	-	1	Part 22	(USE WHEN EQUIPPED WITH LUMBER FORK) ( T45153 USE IF AVAILABLE)
19	28H3380	1	Spacer	0.493" X 0.675" X 1-5/8", 3/8" X 1-5/8"
20	AT40353	1	WIRING LEAD	-
3A	AT40352	1	HOUSING	-
3B	AT54080	1	HOUSING	-

RETURN-TO-DIG ACTUATOR, CAM AND SWITCH (WITH REGULAR BUCKETS OR LUMBER FORK) [02E23]
